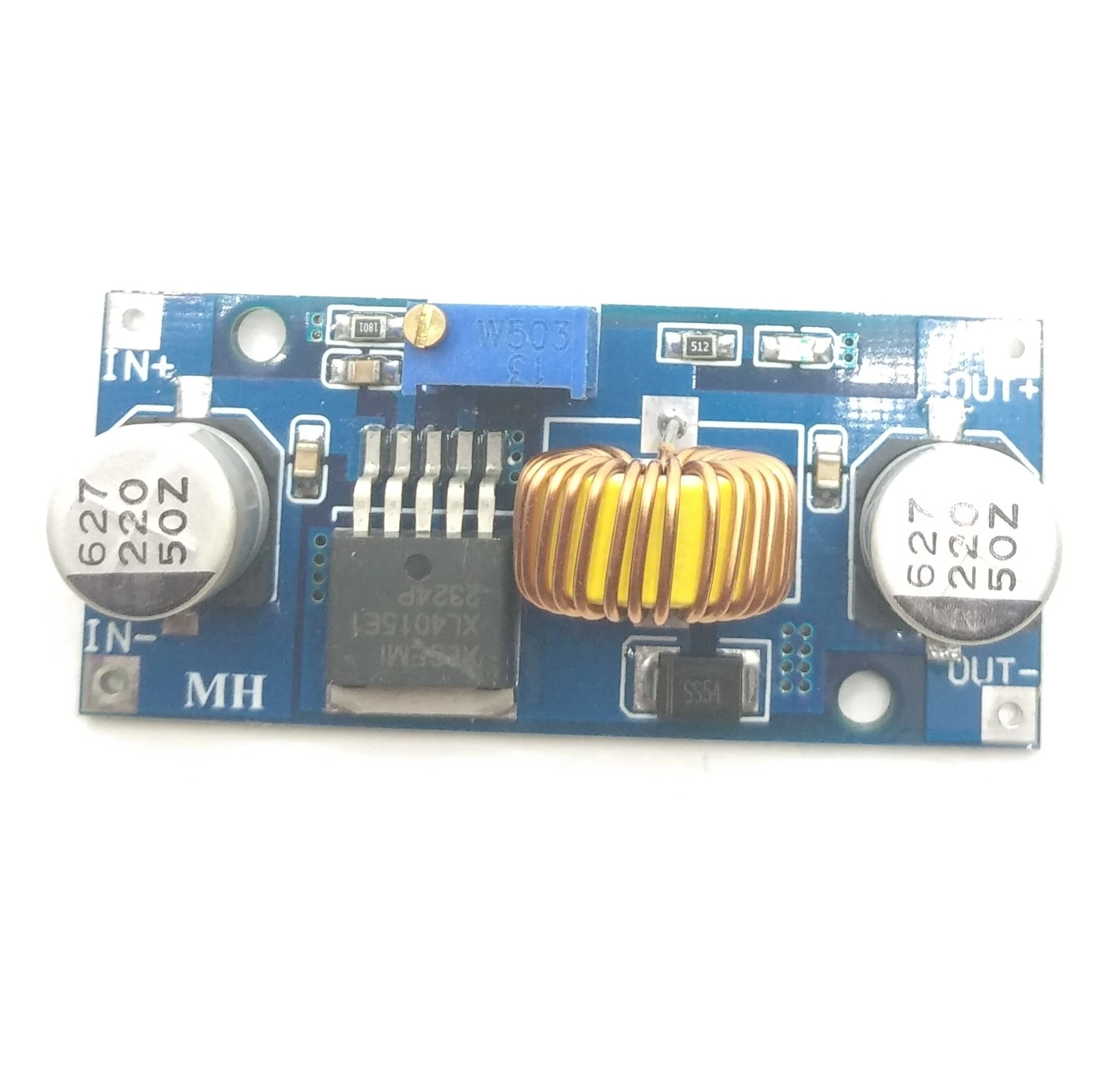

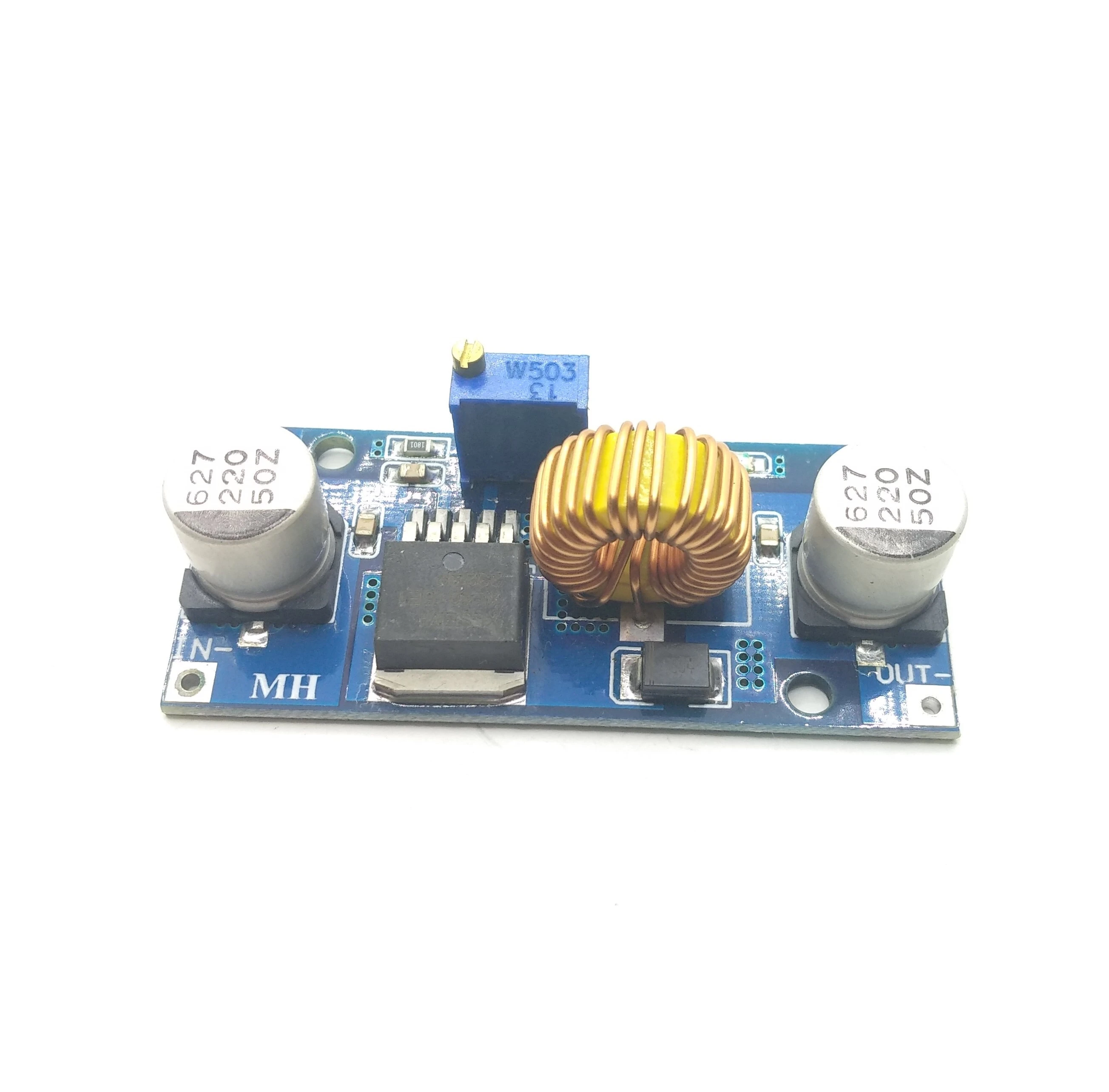

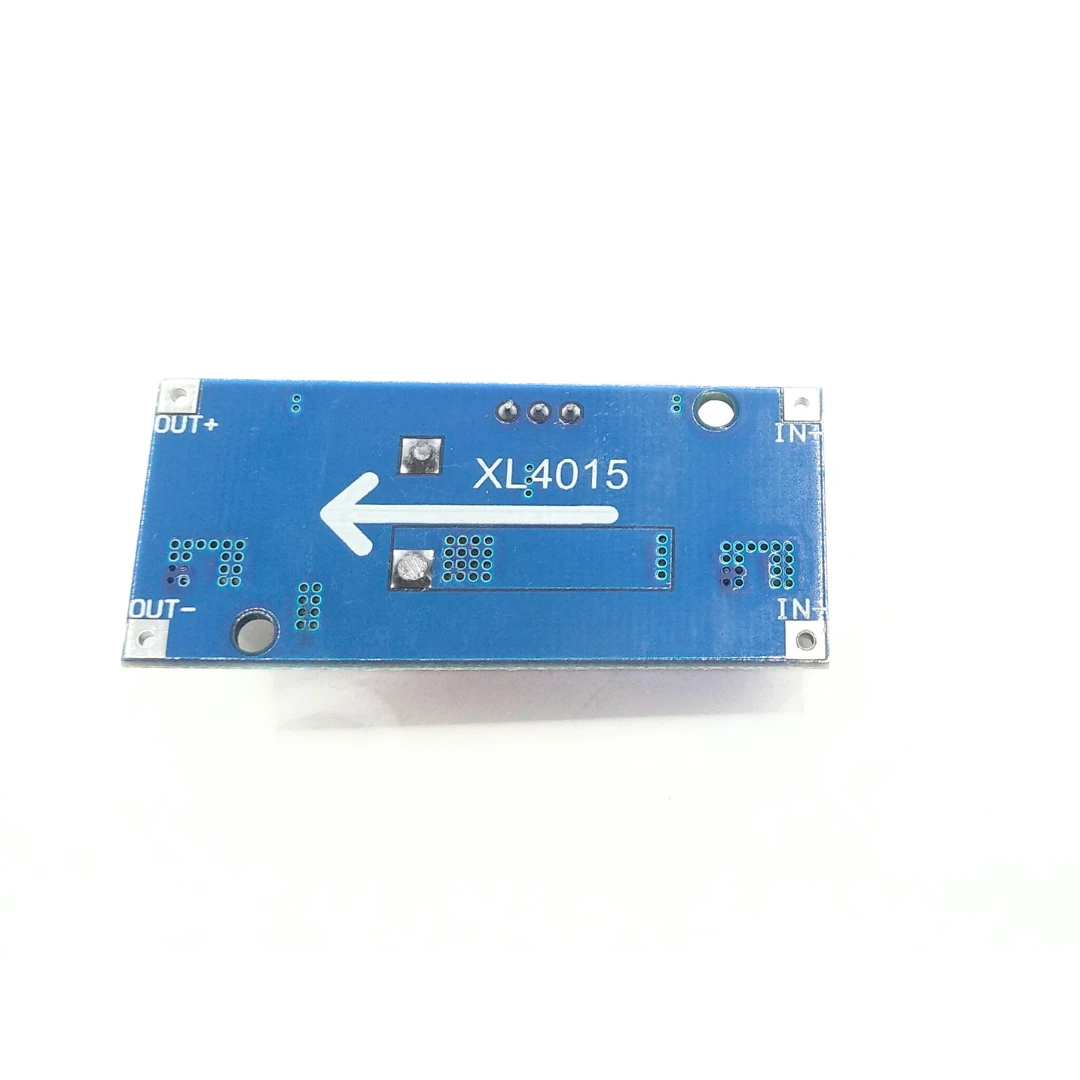

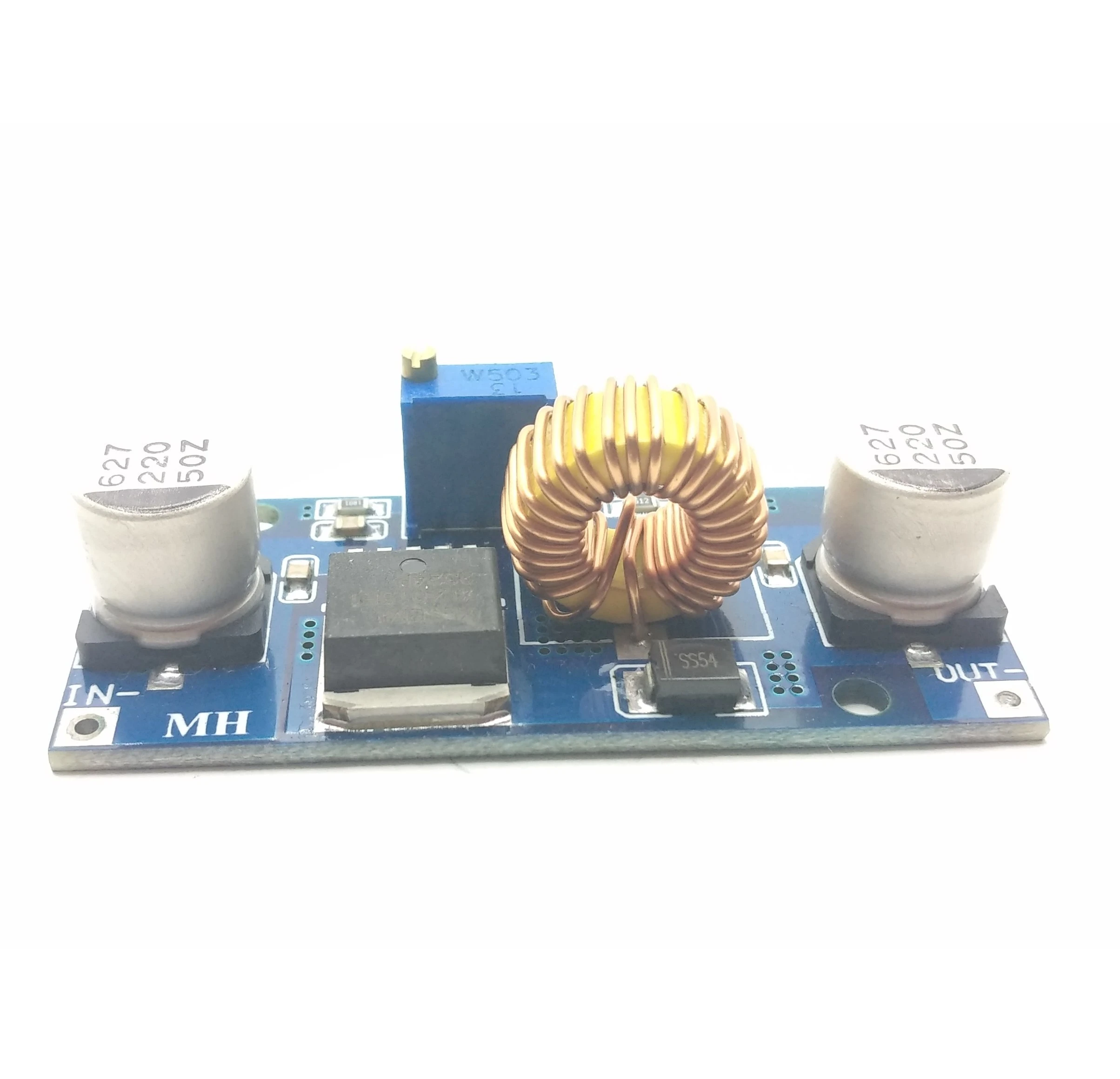

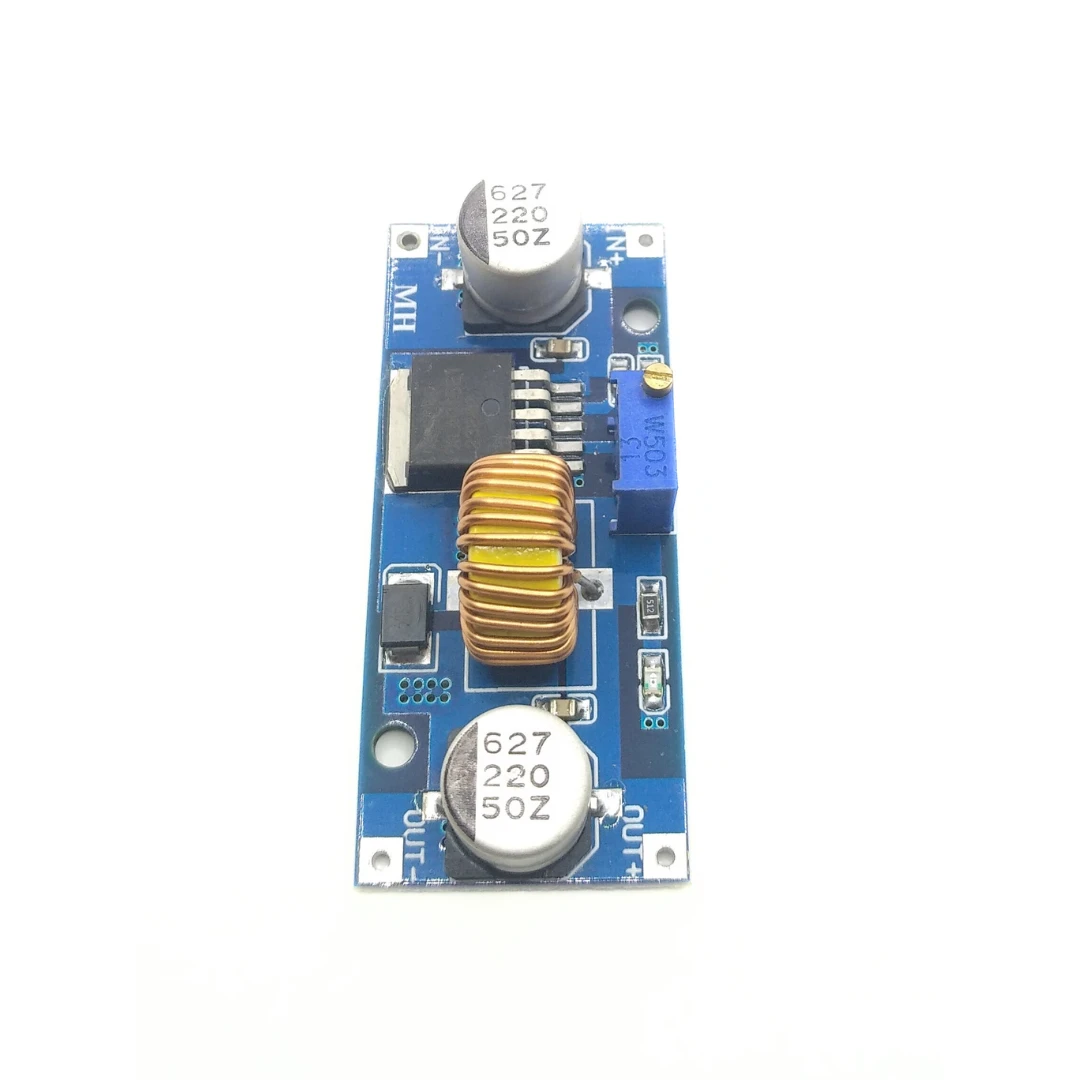

Description: The XL4015 is a high-efficiency, 180 kHz fixed-frequency PWM buck (step-down) DC/DC module, capable of driving adjustable loads up to 5A. It is designed to provide stable and efficient step-down voltage conversion with low ripple and excellent line and load regulation. This module features overcurrent protection, thermal shutdown, and output short protection, making it ideal for a wide range of applications requiring adjustable voltage and current regulation.
Specifications:
Input Voltage Range: 4V to 38V DC (Note: Input voltage should not exceed 38V)
Output Voltage Range: 1.25V to 36V DC adjustable
Output Current: 0-5A
Output Power: 75W
Efficiency: Up to 96%
Built-in Thermal Shutdown Function
Built-in Current Limit Function
Built-in Output Short Protection Function
Input Reverse Polarity Protection: None (use high-current diode in series with input if required)
Dimensions (L x W x H): 5.4 x 2.3 x 1.5 cm
Features:
Ideal for applications where input voltage is higher than the output voltage, such as battery-powered devices, power transformers, DIY adjustable regulated power supplies, and more.
Common applications include powering LCD monitors, LCD TVs, portable instruments, telecom/networking equipment, vehicle notebook power supplies, and industrial equipment.
Supports various step-down voltage conversion needs: 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, and more.

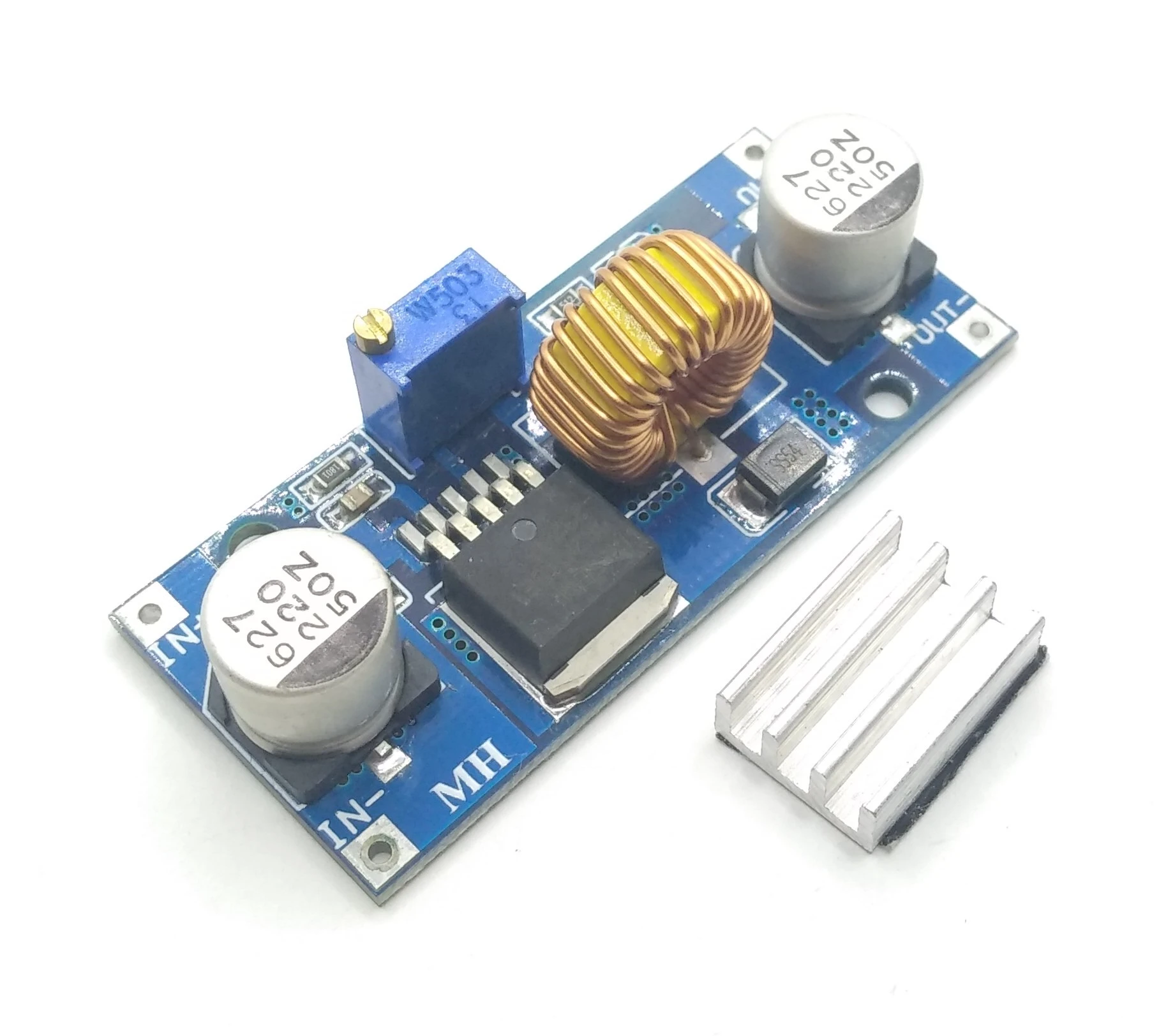

Package Includes:
1 x XL4015 5A DC-DC Step-Down Adjustable Power Supply Buck Module
1 x Aluminium Heat Sink
Disclaimer: Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
