L298N Motor Driver Board

Out of Stock

SKU: R3-B-22

L298N Motor Driver Board

(0) | 0 Reviews | 26 Orders | 0 Wish Listed

₹120.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Out of stock

Overview
Reviews

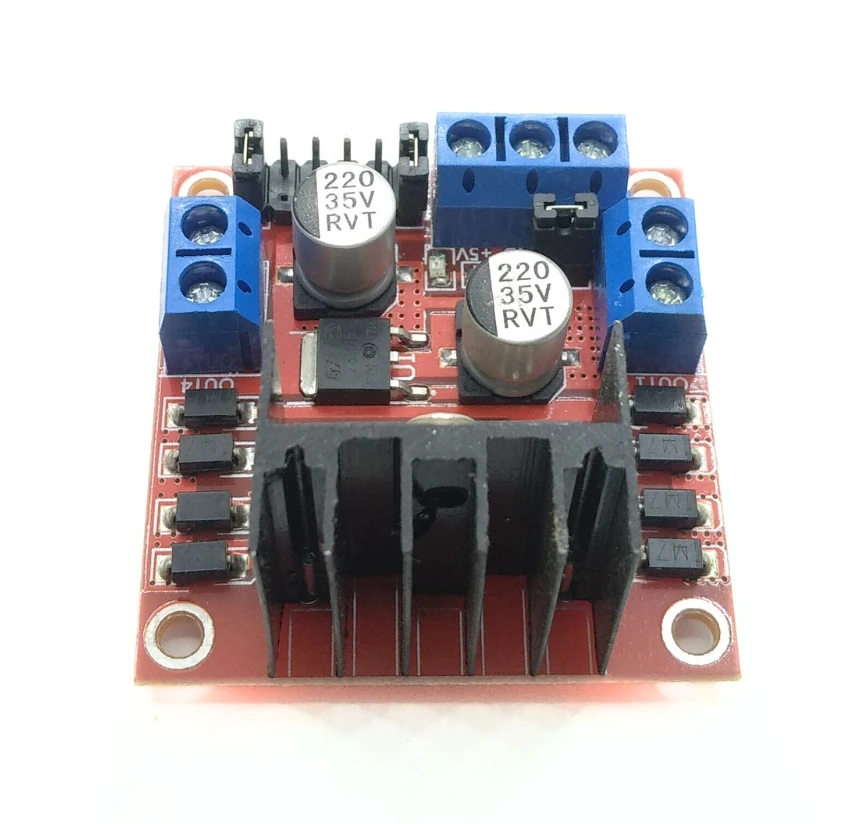

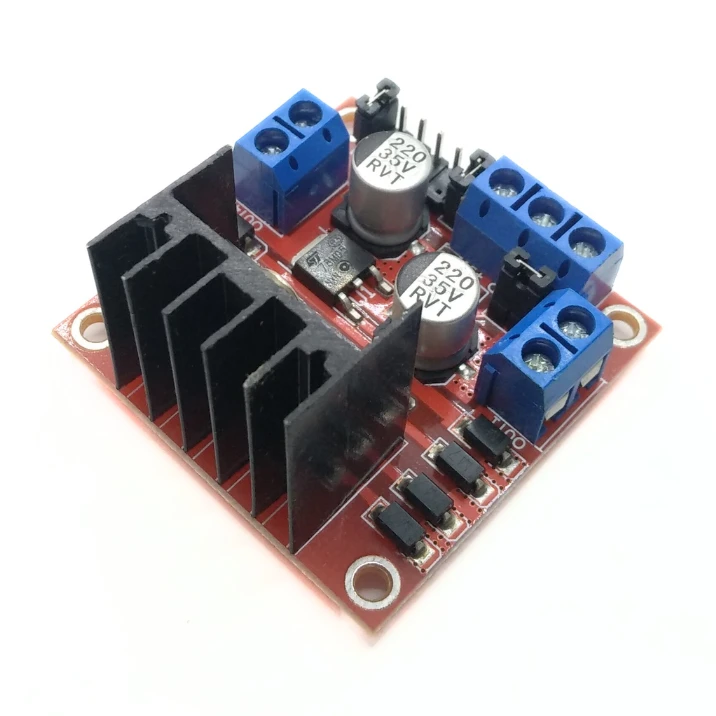

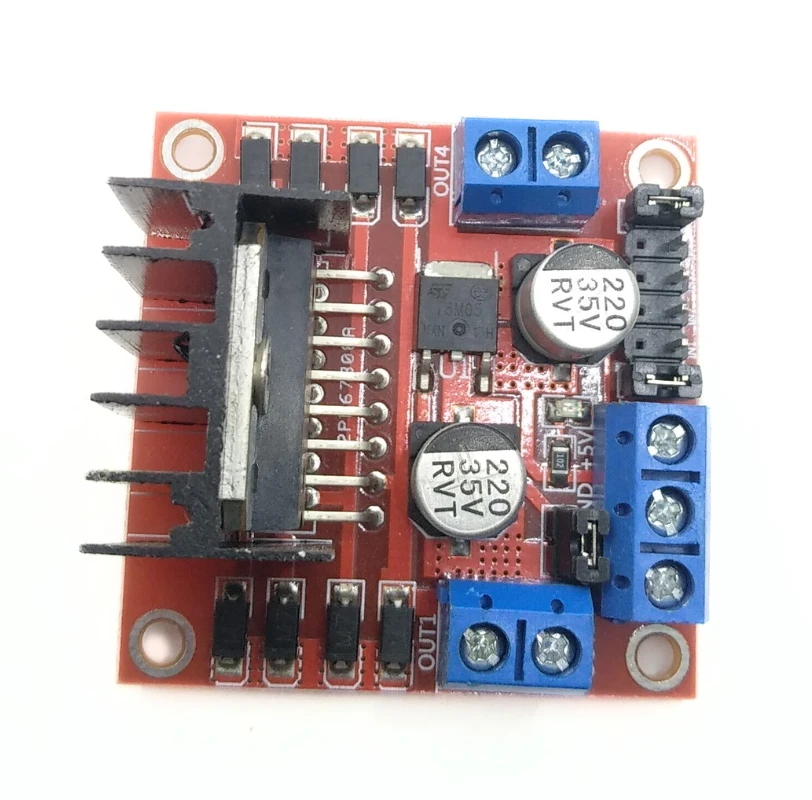

The L298 Motor Driver Board is a high-performance dual full-bridge driver designed to handle high voltage and high current, making it ideal for driving DC motors, stepper motors, and inductive loads like relays and solenoids. The board is designed for easy integration into robotics and mechatronics projects and allows microcontrollers, switches, and relays to control motor functions.

Features:

Operating supply voltage up to 46V
Total DC current up to 4A (Each channel can carry up to 2A)
Low saturation voltage for efficient operation
Over-temperature protection for safe usage
High noise immunity with logical “0” input voltage up to 1.5V
Easy connection with PTR connectors

Product Specifications:

Operating Voltage: Up to 46V
Total Current: 4A (2A per channel)
Input Voltage for Logic: 1.5V (High Noise Immunity)
Protection: Over-temperature protection
Enable Pins: PWM control for motor speed
Logical Pins: Independent motor control

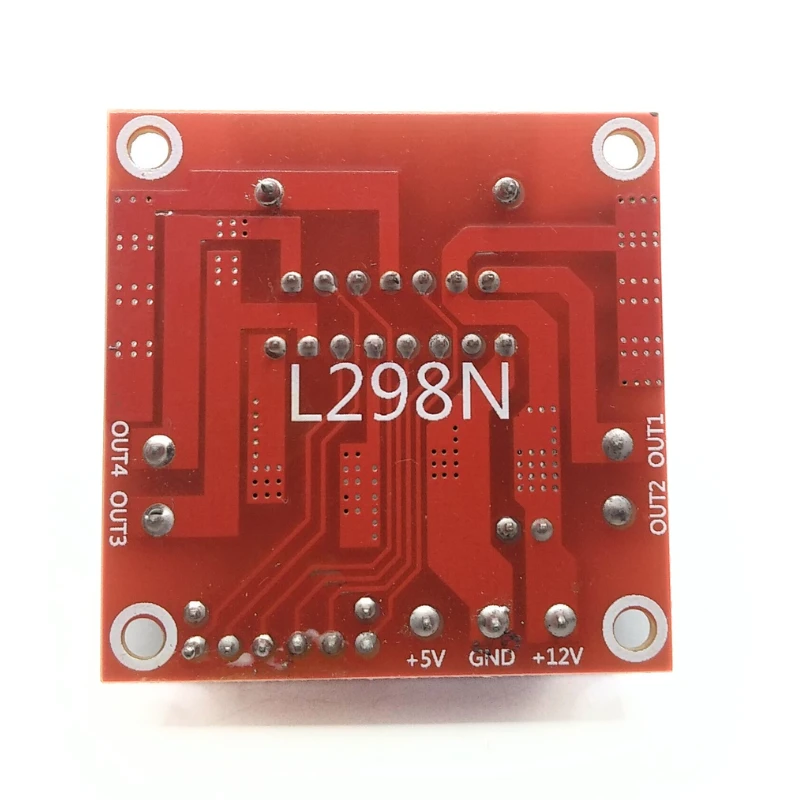

Pins:

Out1: Motor A lead out
Out2: Motor A lead out
Out3: Motor B lead out
Out4: Motor B lead out (can range from 5V-35V)
GND: Ground
5V: 5V input (unnecessary if your power source is 7V-35V)
EnA: Enables PWM signal for Motor A
In1: Enable Motor A
In2: Enable Motor A
In3: Enable Motor B
In4: Enable Motor B
EnB: Enables PWM signal for Motor B

Applications:

Robotics projects like micro mouse, line-following robots, robot arms
DC and stepper motor control for mechatronics systems
PWM control for motor speed regulation
Control of inductive loads such as relays and solenoids
High-powered LED array brightness control

Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements.
