Description:

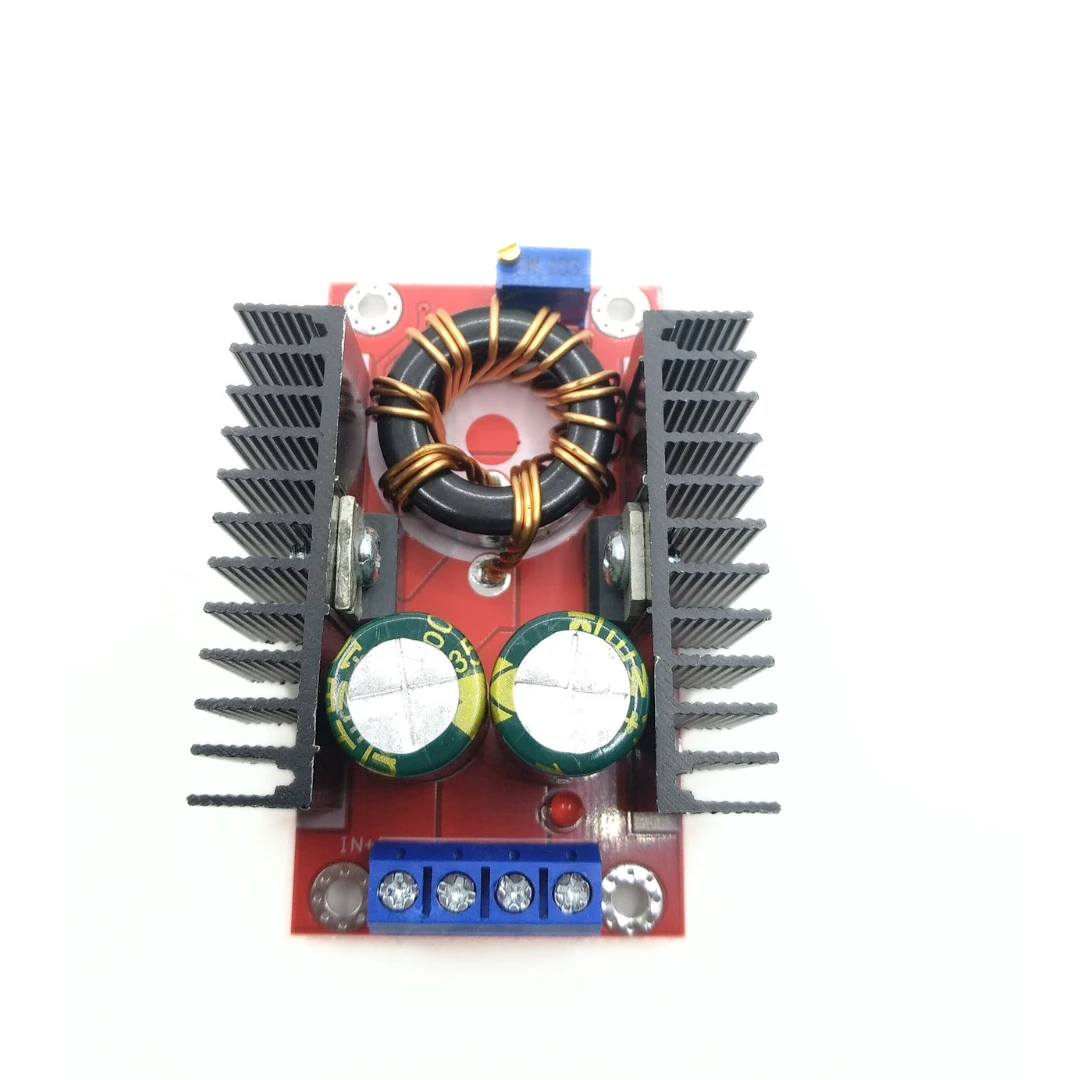

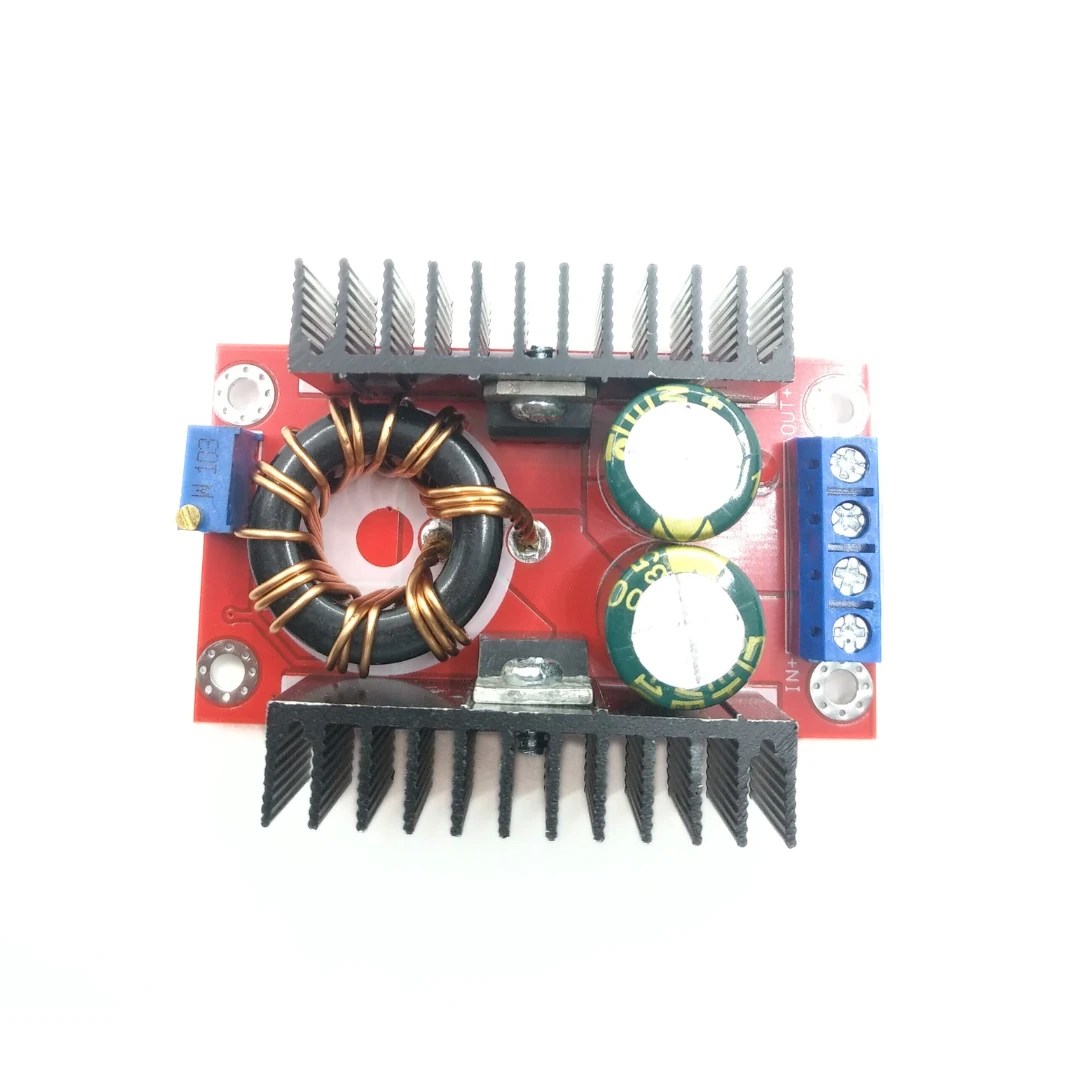

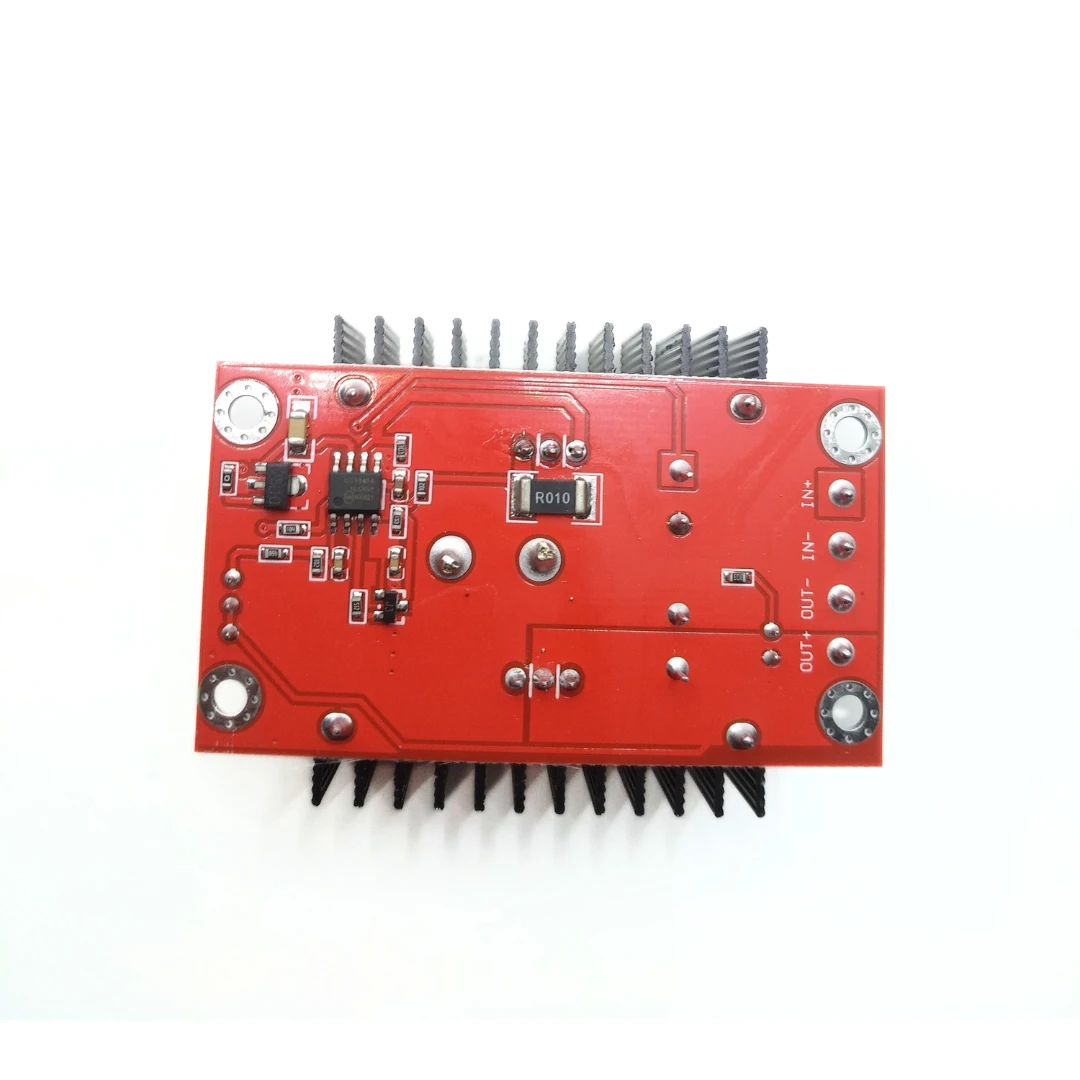

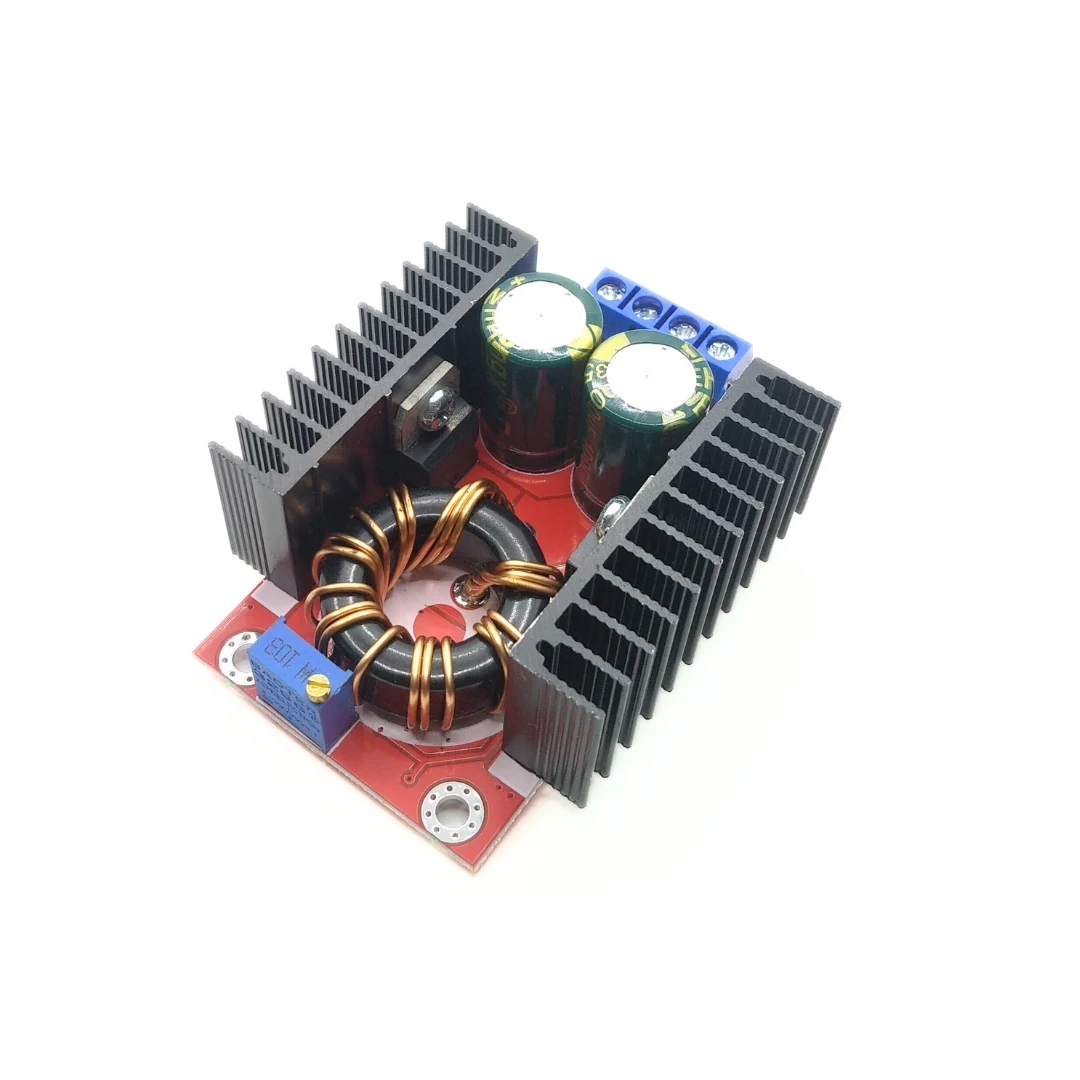

This versatile 150W DC-DC Boost Converter steps up input voltages ranging from 10V to 32V to any adjustable output voltage between 12V and 35V, providing up to 6A of current. Ideal for automotive 12V applications, it can power devices that require higher voltages, such as laptops (up to 19V), or any other application requiring a voltage boost. Featuring a large toroidal inductor and dual heatsinks, this module is designed for heavy-duty use and can handle up to 150W of power.
Features:
Input Voltage: 10V to 32V DC for wide compatibility.
Output Voltage: Adjustable from 12V to 35V, providing flexibility for various applications.
Output Current: Capable of delivering up to 10A (max), with current up to 6A for typical use.
Power Rating: 150W maximum output power.
High Efficiency: Non-isolated step-up power conversion with multi-turn potentiometer for fine adjustments.
LED Indicator: Onboard LED illuminates when voltage is applied, signaling power.
Heat Dissipation: Equipped with dual heatsinks to ensure effective thermal management during high power use.
Adjustable Output: The output voltage is easily adjustable via the OUT+ and OUT- screw terminals.
Applications:
DIY Adjustable Vehicle Power Supply: Adjust the output voltage for various applications like laptops or other high-voltage electronics.
Car Laptop Power Supply: Easily boosts 12V car battery power to 19V or higher to power laptops, including dual-core or quad-core notebooks.
Boost Charger: Use to convert your car's 12V power to higher voltages like 18V or 24V for other power needs.
General Power Supply for Electronics: Provide a stable, adjustable voltage to power electronic devices with a current requirement up to 6A.
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
