The LM7924 is a 3-terminal negative voltage regulator designed to provide a stable -24V output. With built-in thermal overload protection, short circuit protection, and output transistor safe-area compensation, this regulator ensures reliability in various electronic applications.
This regulator requires only one external component, a compensation capacitor, at the output for stable performance. It features a low ground pin current, making it easily adaptable for voltage boosting using a resistor divider. The high ripple rejection and 4% tolerance on the preset output voltage ensure consistent voltage regulation even under fluctuating line and load conditions.
Output Voltage: Fixed at -24V
Output Current: In excess of 1A
Protection: Internal thermal overload protection, short circuit protection, and safe-area compensation
High Ripple Rejection: Ensures stable operation in noisy environments
Output Voltage Tolerance: 4% on the preset output voltage
Low Quiescent Current: Ensures good regulation even with low current drain
Easy Voltage Boosting: Can boost output voltage above preset value using resistor divider
1x Heat Sink Compound

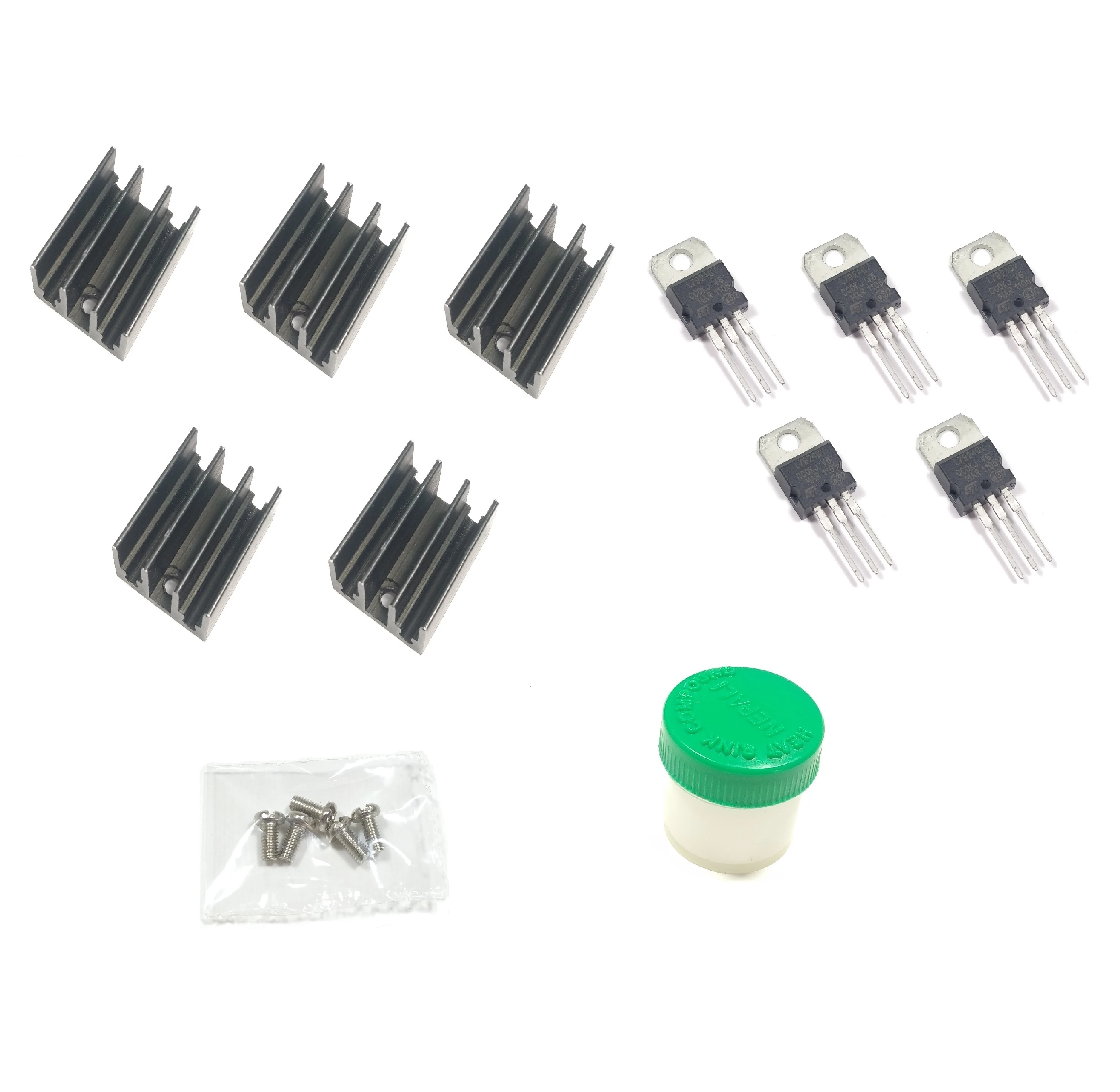

5x LM7924 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws
Negative Voltage Power Supplies for electronics
Regulated Power for Analog Circuits
Audio Systems requiring negative voltage regulation
Consumer Electronics with specific negative voltage requirements
The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
