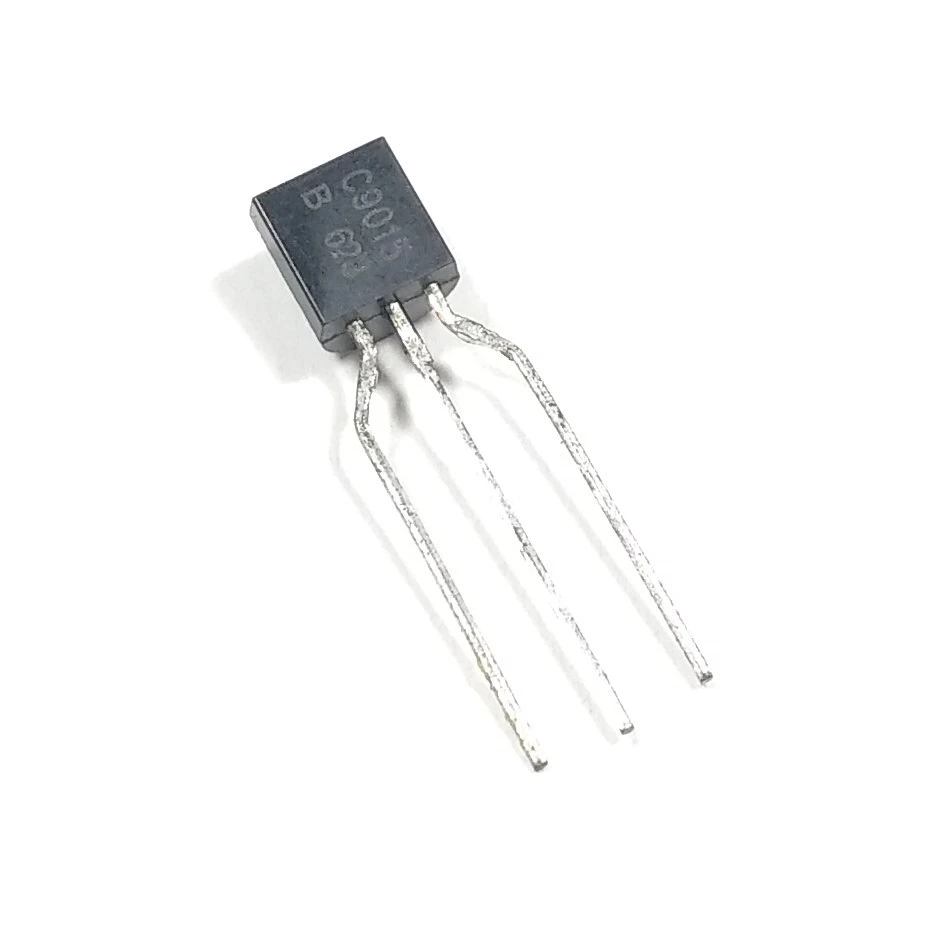

C9015 General purpose Transistor (pack of 5)

In Stock

SKU: R3-F-8-1

C9015 General purpose Transistor (pack of 5)

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹20.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The C9015 is a general-purpose NPN transistor designed for use in low-power amplification and switching applications. It provides excellent performance in audio amplification, signal processing, and various other general-purpose electronic circuits. With a collector current of up to 150mA and a collector-emitter voltage of 50V, the C9015 is ideal for use in a wide range of applications.

Features:

Polarity: NPN
Collector-Base Voltage (VCBO): -50 V
Collector-Emitter Voltage (VCEO): -50 V
Emitter-Base Voltage (VEBO): -5 V
Collector Current (IC): -150 mA
Emitter Current (IE): 150 mA
Collector Power Dissipation (PC): 625 mW
Junction Temperature (TJ): 150°C
Storage Temperature (TSTG): -50 to +150°C
Package Type: TO-92

Applications:

General-purpose switching
Low-power amplification
Signal processing
Audio circuits
Driver stages in power electronics

Package Includes:

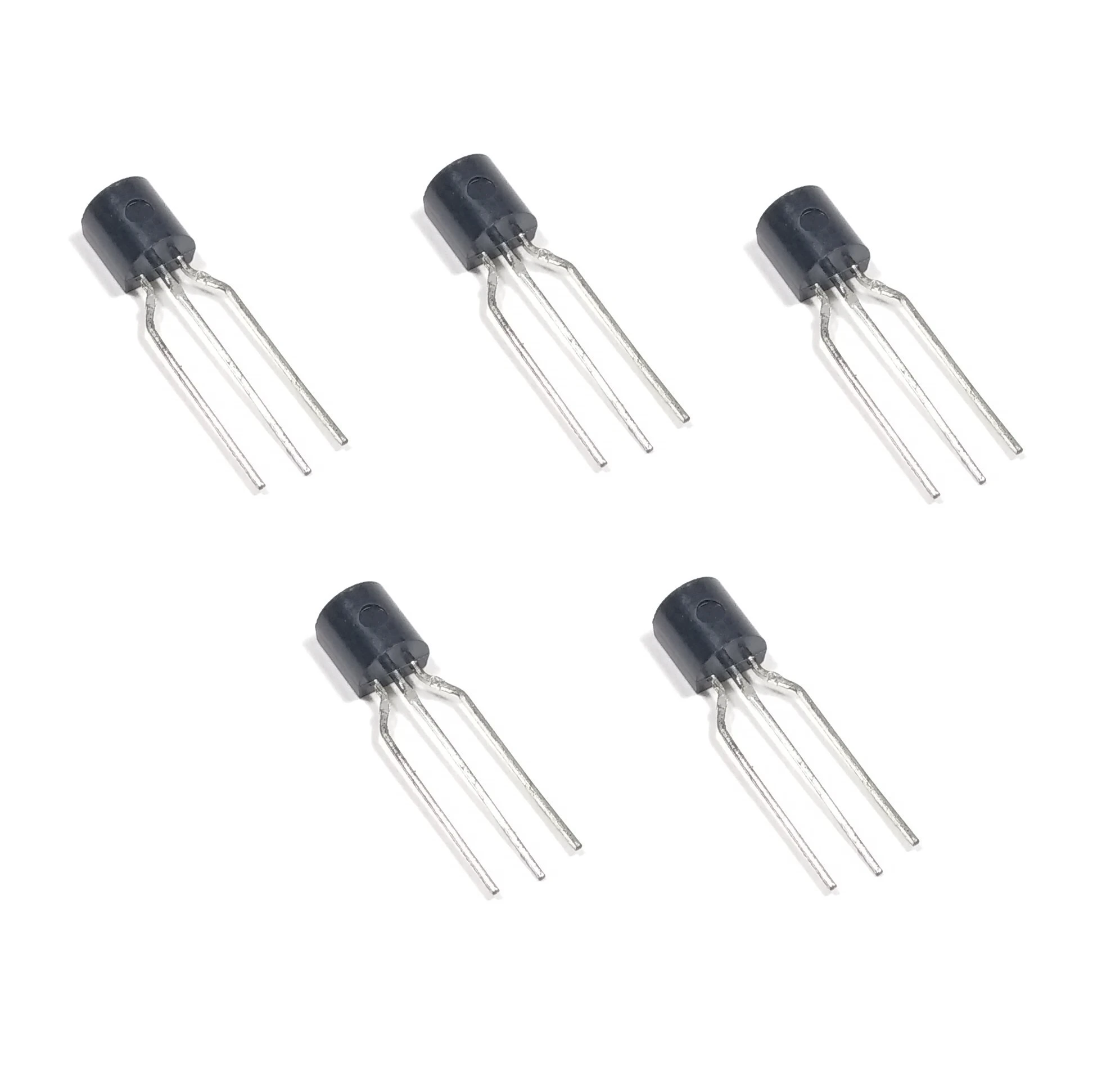

5x C9015 NPN Transistors

Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
