Description:

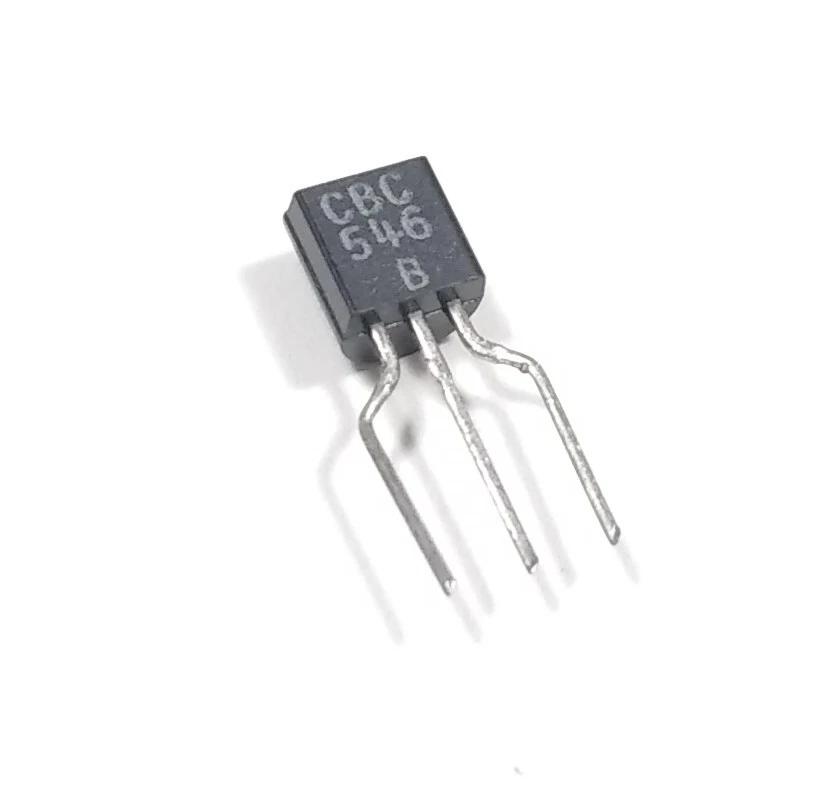

The BC546 is an NPN general-purpose transistor designed for low-noise, low-power signal amplification and switching applications. With a higher voltage rating than the BC547, it's ideal for circuits that require improved voltage tolerance.
Polarity: NPN
Collector-Base Voltage (VCBO): 80 V
Collector-Emitter Voltage (VCEO): 65 V
Emitter-Base Voltage (VEBO): 6 V
Collector Current (IC): 100 mA
Power Dissipation @ TA = 25°C: 625 mW
Derating above 25°C (Ambient): 5.0 mW/°C
Power Dissipation @ TC = 25°C: 1.5 W
Derating above 25°C (Case): 12 mW/°C
Junction Temperature (Tj): 150 °C
Storage Temperature Range (Tstg): -55 to 150 °C
Thermal Resistance (RθJA): 200 °C/W
Signal amplification
Audio and RF amplifier stages
General-purpose switching
Learning and DIY electronic projects

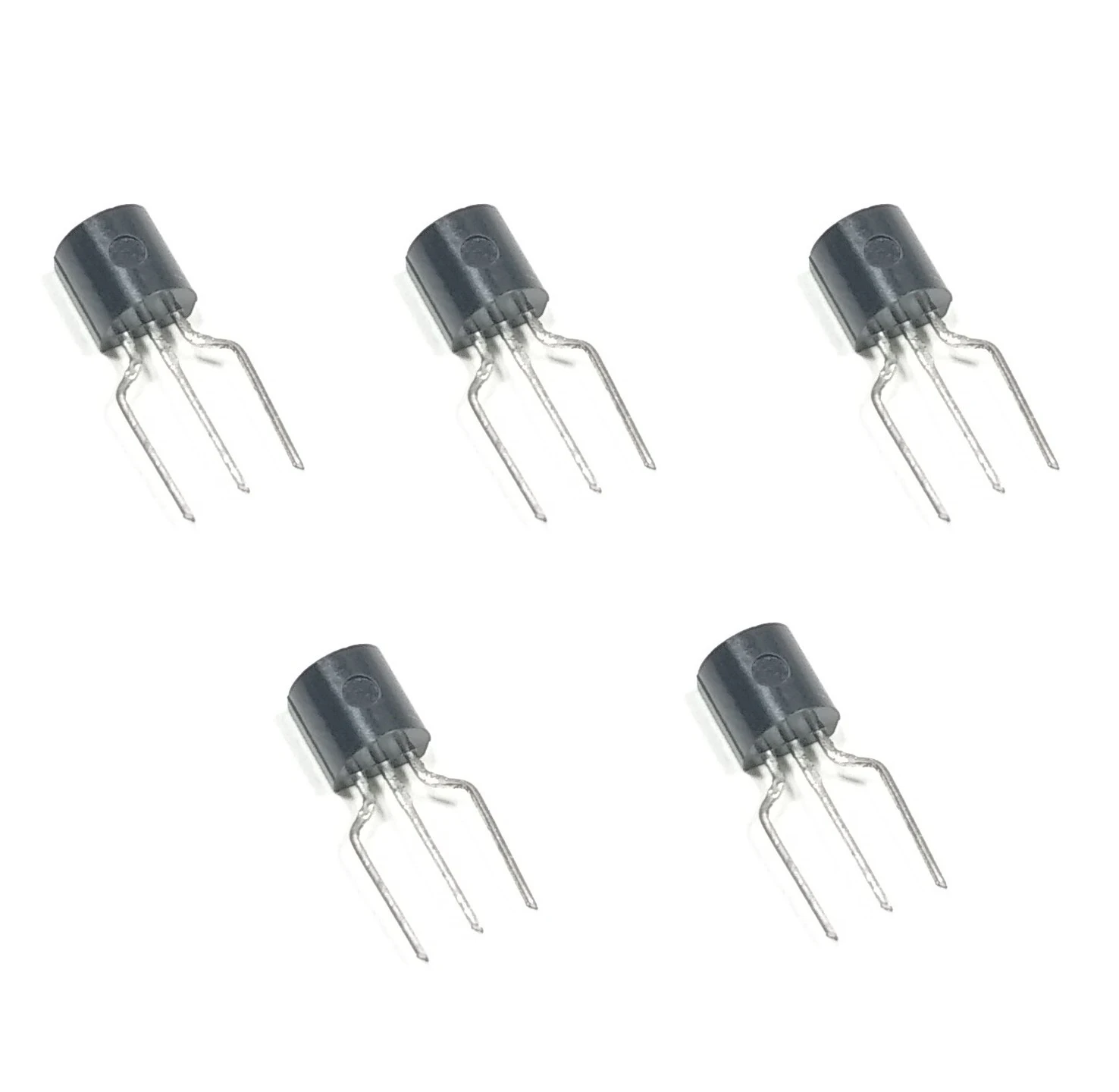

5x BC546 NPN Transistors
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
