Description:

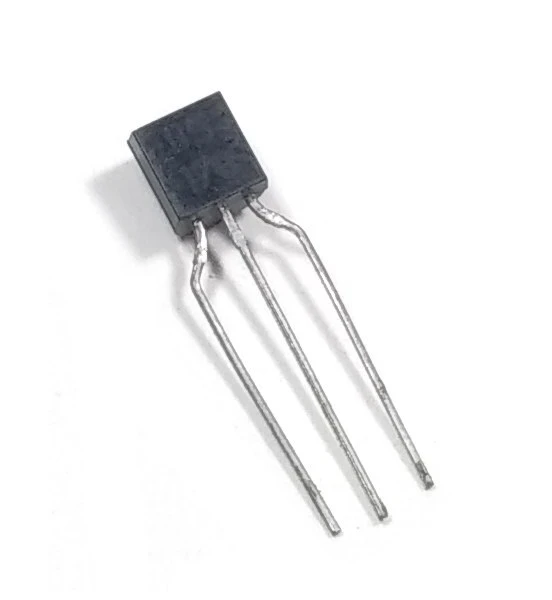

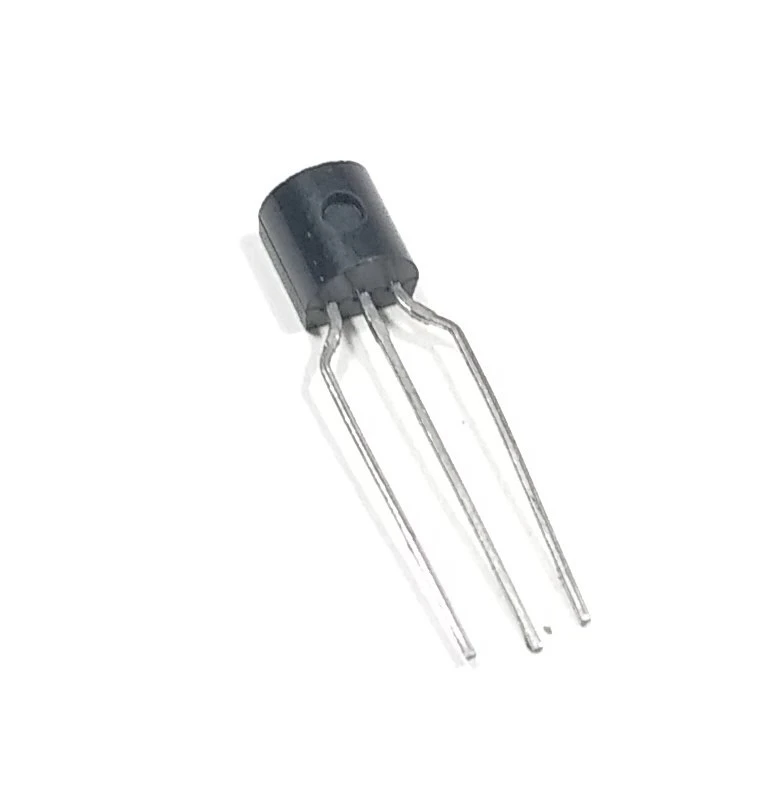

The BC170 is an NPN general-purpose transistor with low noise characteristics. It is ideal for use in medium- and low-power amplification applications and provides high gain at high frequencies, making it suitable for use in RF circuits and signal processing.
Polarity: NPN
Collector-Base Voltage (VCBO): 20 V
Collector-Emitter Voltage (VCEO): 20 V
Emitter-Base Voltage (VEBO): 5 V
Collector Current (IC): 100 mA
Transition Frequency (fT): 100 MHz
Power Dissipation (PC): 300 mW
Junction Temperature (Tj): 150 °C
Storage Temperature Range (Tstg): -55 to 150 °C
Medium- and low-power amplification
Radio frequency (RF) circuits
Signal processing circuits
Low noise amplifier applications

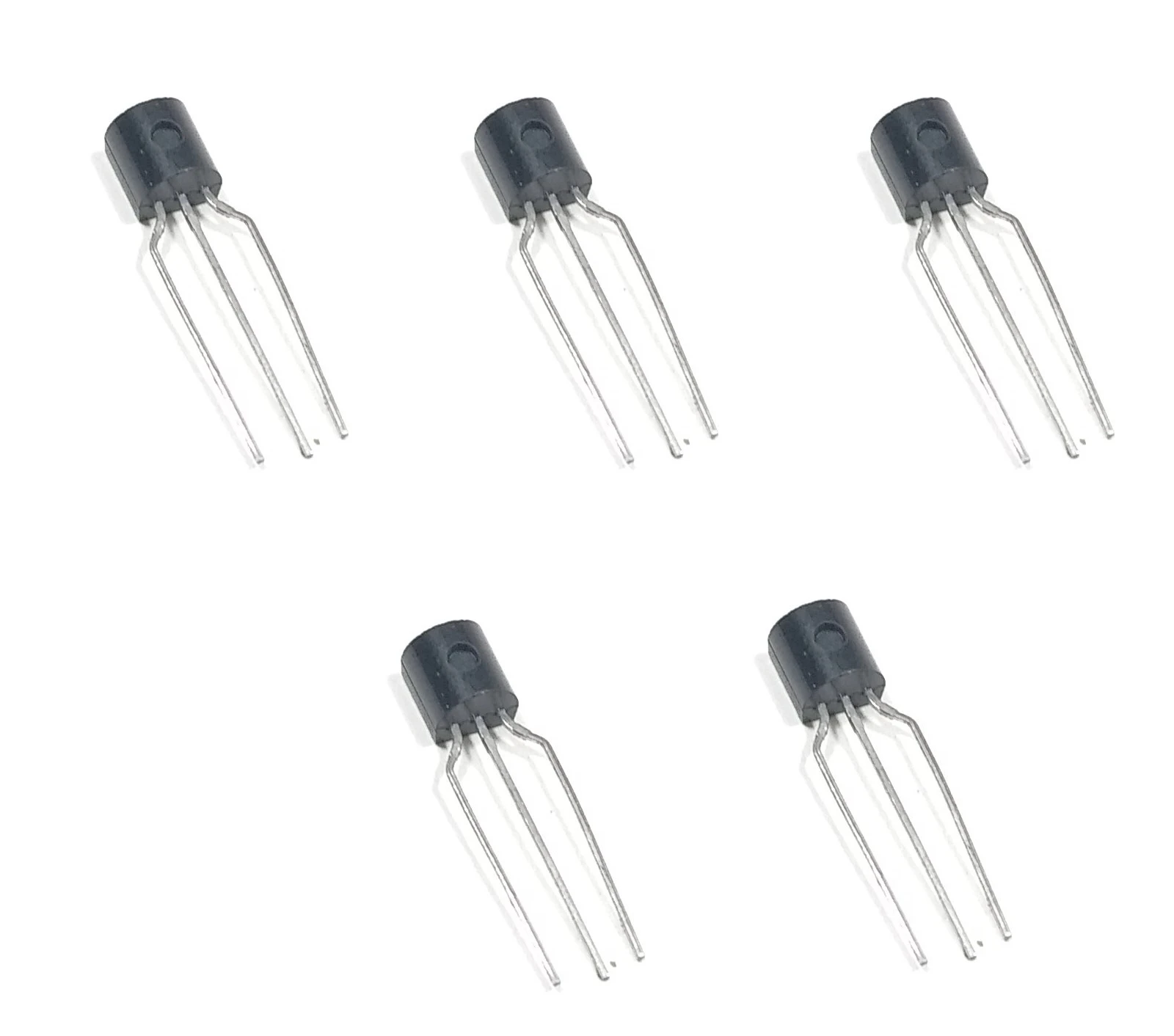

5x BC170 NPN Transistors
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
