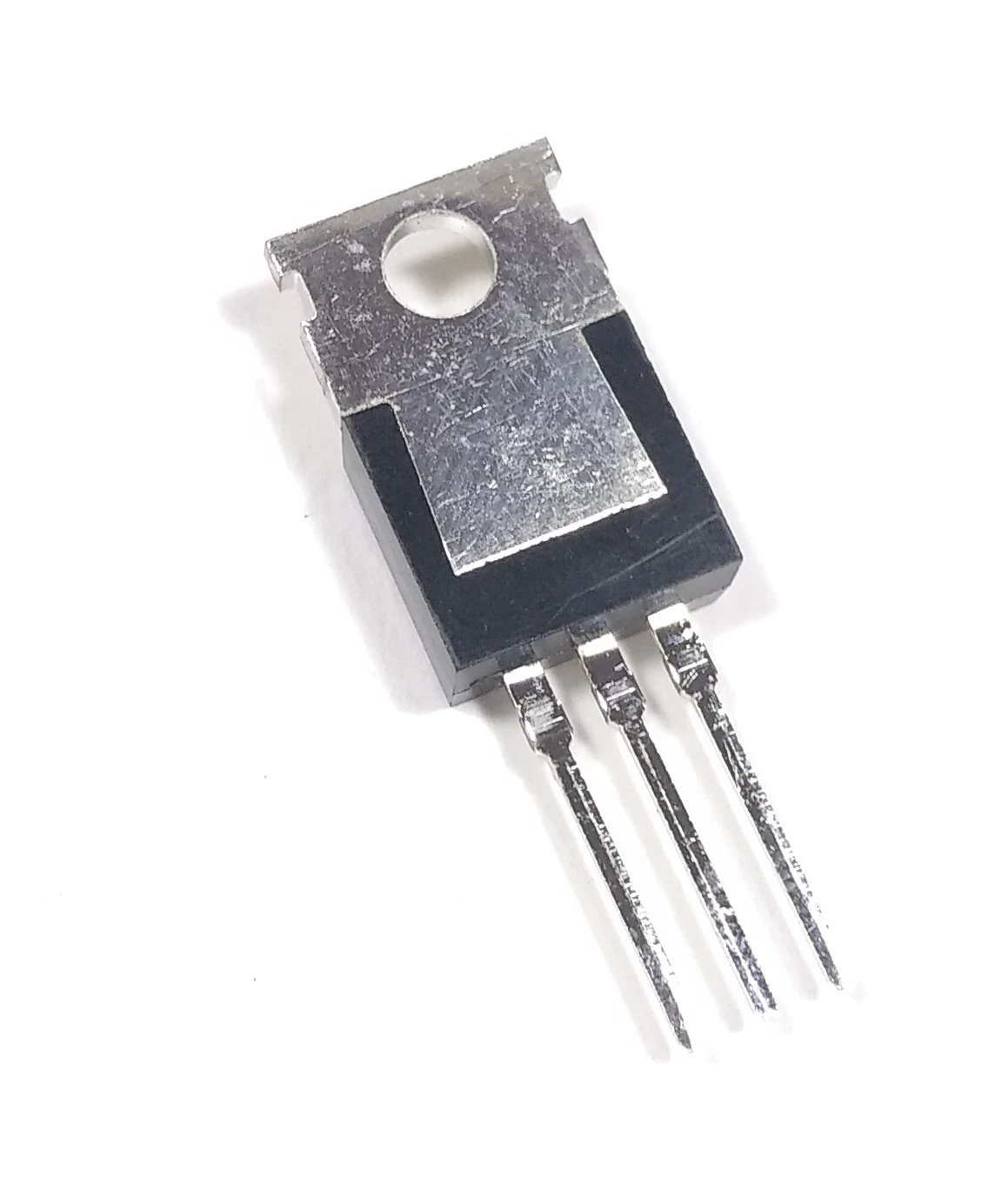

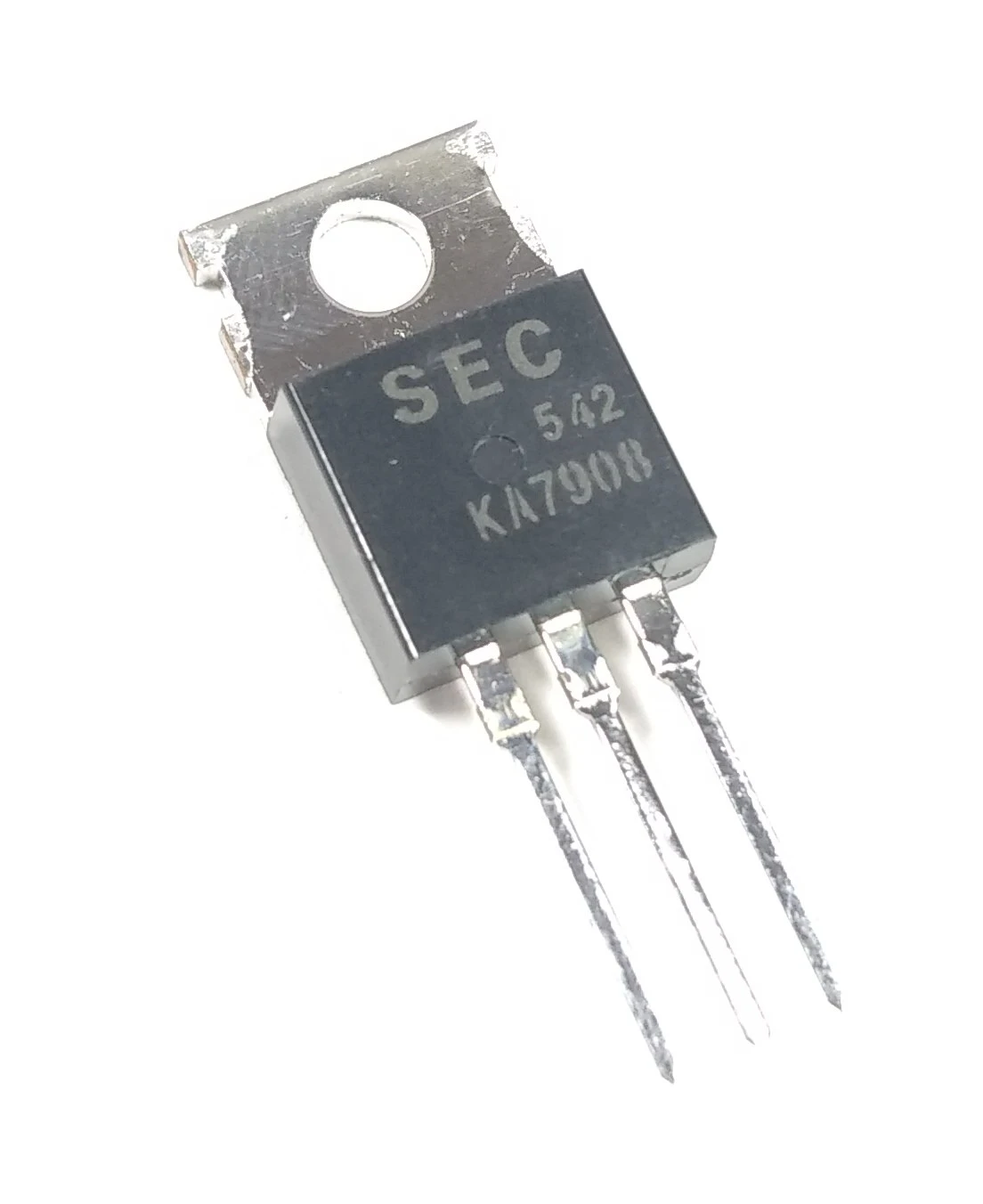

The LM7908 is a negative voltage regulator IC from the LM79xx series, offering a stable -8V output with a current capacity of up to 1.5A. It is available in a TO-220 package and includes vital protections such as thermal overload protection and short circuit protection. These safety features ensure the IC operates reliably under various conditions, protecting your projects and applications.
The LM7908 only requires a compensation capacitor at the output to ensure stable operation, and its low quiescent current provides excellent regulation even when boosting the output voltage above the preset value with a resistor divider.
Fixed Output Voltage: -8V DC
Output Current: Up to 1.5A
Package: TO-220
Internal Thermal Overload Protection: Ensures safe operation under high temperatures
Short Circuit Protection: Provides protection from damaging short circuits
Safe-Area Compensation: Ensures safe operation of the output transistor
Ripple Rejection: High rejection rate for clean output
Output Voltage Tolerance: 4% tolerance on preset voltage

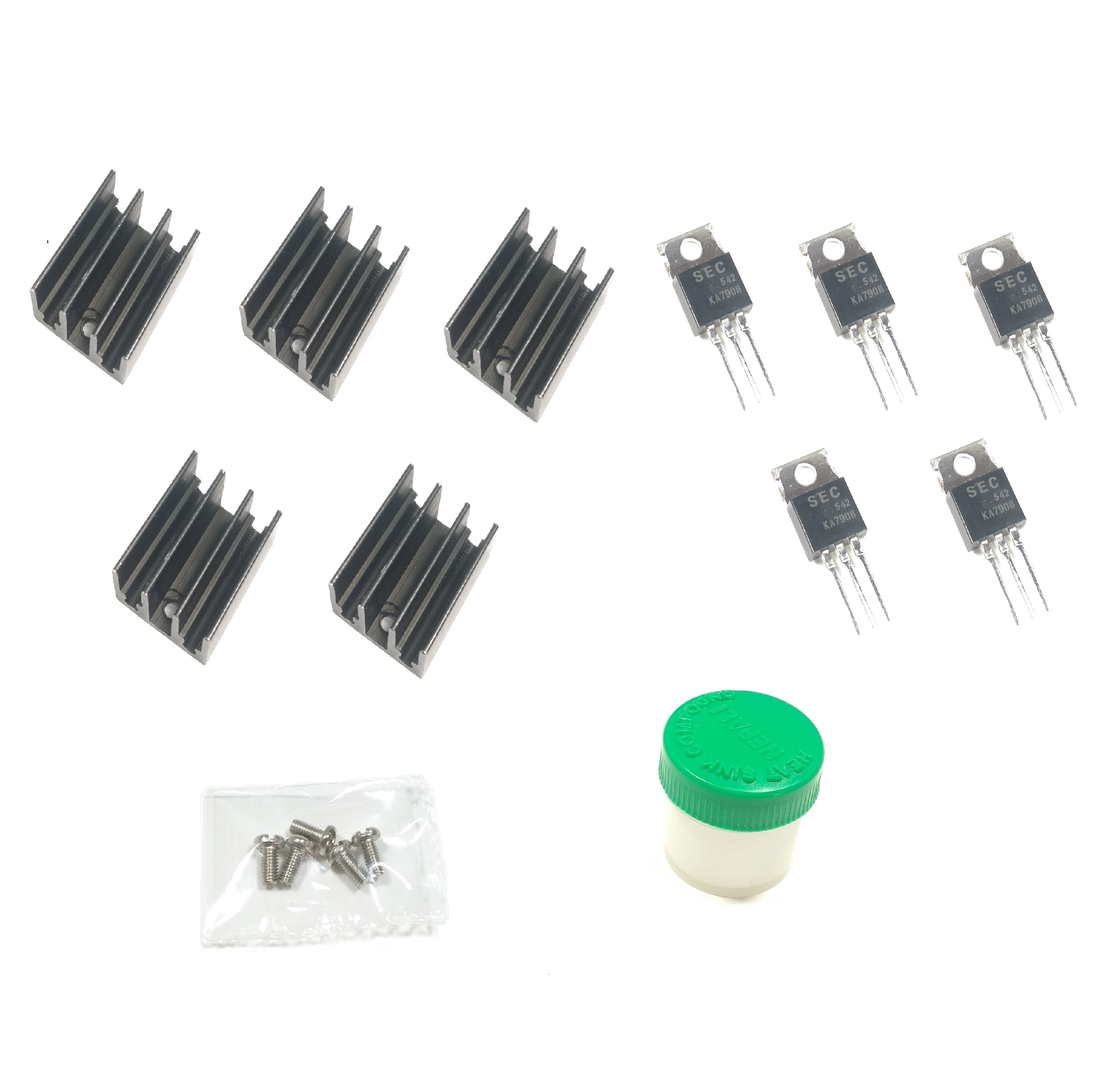

1x Heat Sink Compound
5x LM7908 Voltage Regulators

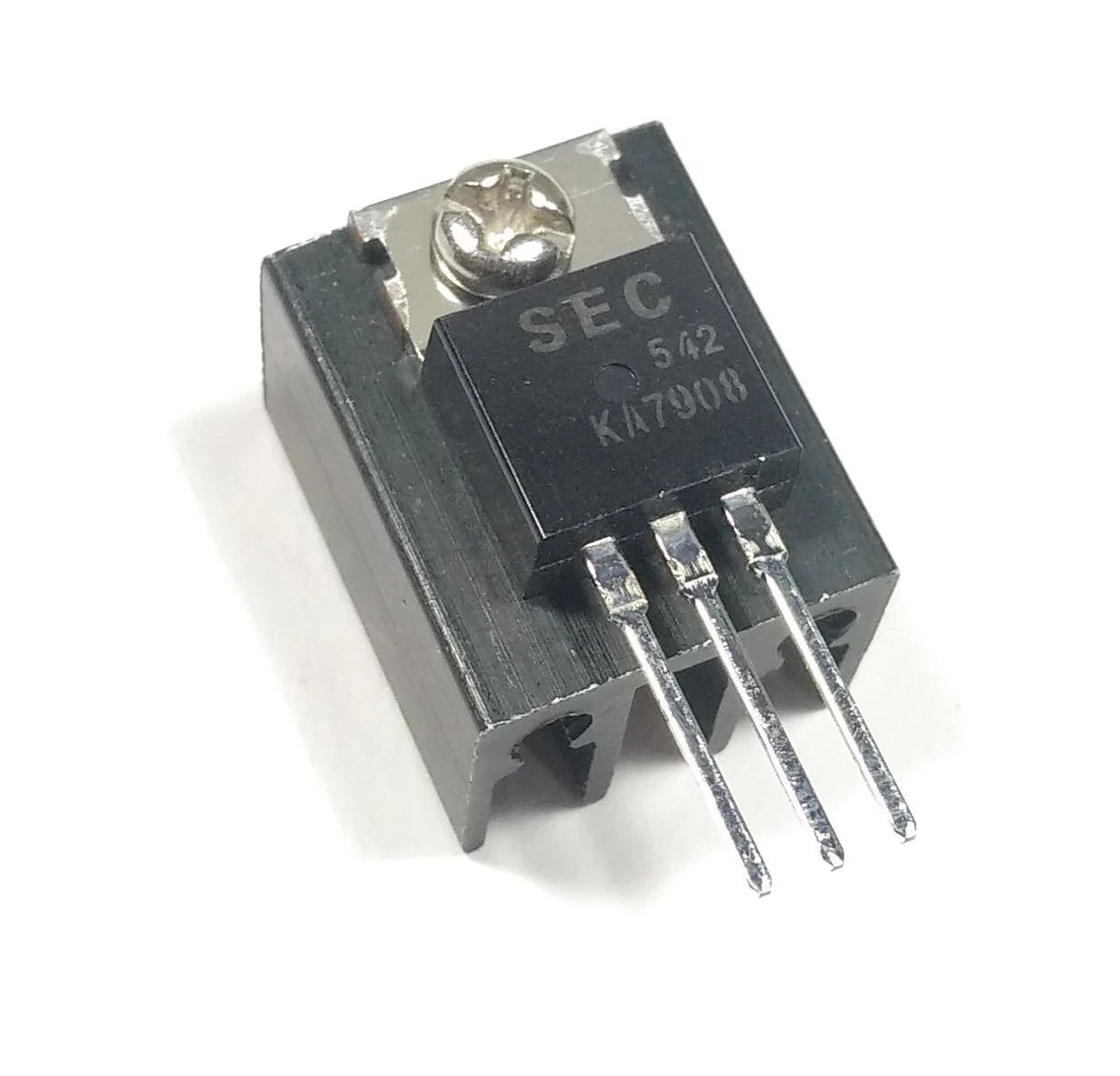

5x Heat Sinks (2 x 1.5 cm)
5x Screws
Negative Voltage Power Supplies
Voltage Converter Circuits
Charger Circuits
Commercial and Experimental Projects
The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
