The LM7906 is a negative voltage regulator IC from the LM79xx series, offering a stable -6V output with a current capacity of up to 1.5A. It is available in a TO-220 package and includes essential protections such as thermal, short circuit, and safe area protection. These safety features ensure that the regulator operates safely and reliably, even under various challenging conditions.
This regulator requires just a compensation capacitor at the output to ensure stable operation, and the low quiescent current ensures excellent voltage regulation even when boosting the output above the preset value with a resistor divider.
Fixed Output Voltage: -6V DC
Output Current: Up to 1.5A
Package: TO-220
Thermal Protection: Internal protection for overheating conditions
Short Circuit Protection: Safeguards against short circuits
Safe-Area Compensation: Ensures safe operation of the output transistor
Ripple Rejection: High rejection rate for clean output
Output Voltage Tolerance: 4% tolerance on preset voltage
Operating Temperature Range: 0˚C to +125˚C
Storage Temperature Range: −65˚C to +150˚C
Lead Temperature: 230˚C (Soldering, 10 sec.)
1x Heat Sink Compound
5x LM7906 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws
Negative Voltage Power Supplies
Voltage Converter Circuits
Charger Circuits
Commercial and Experimental Projects

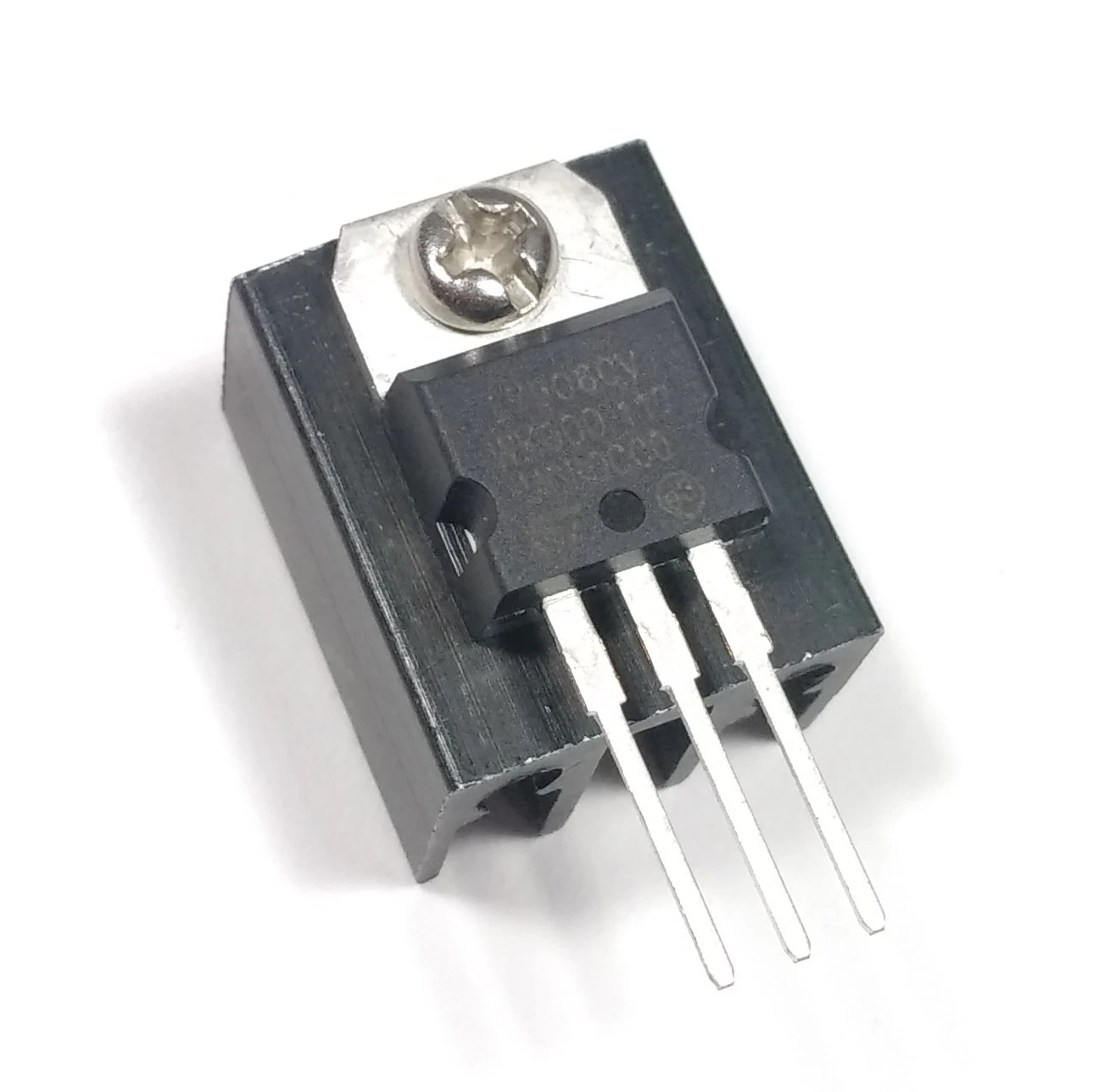

The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
