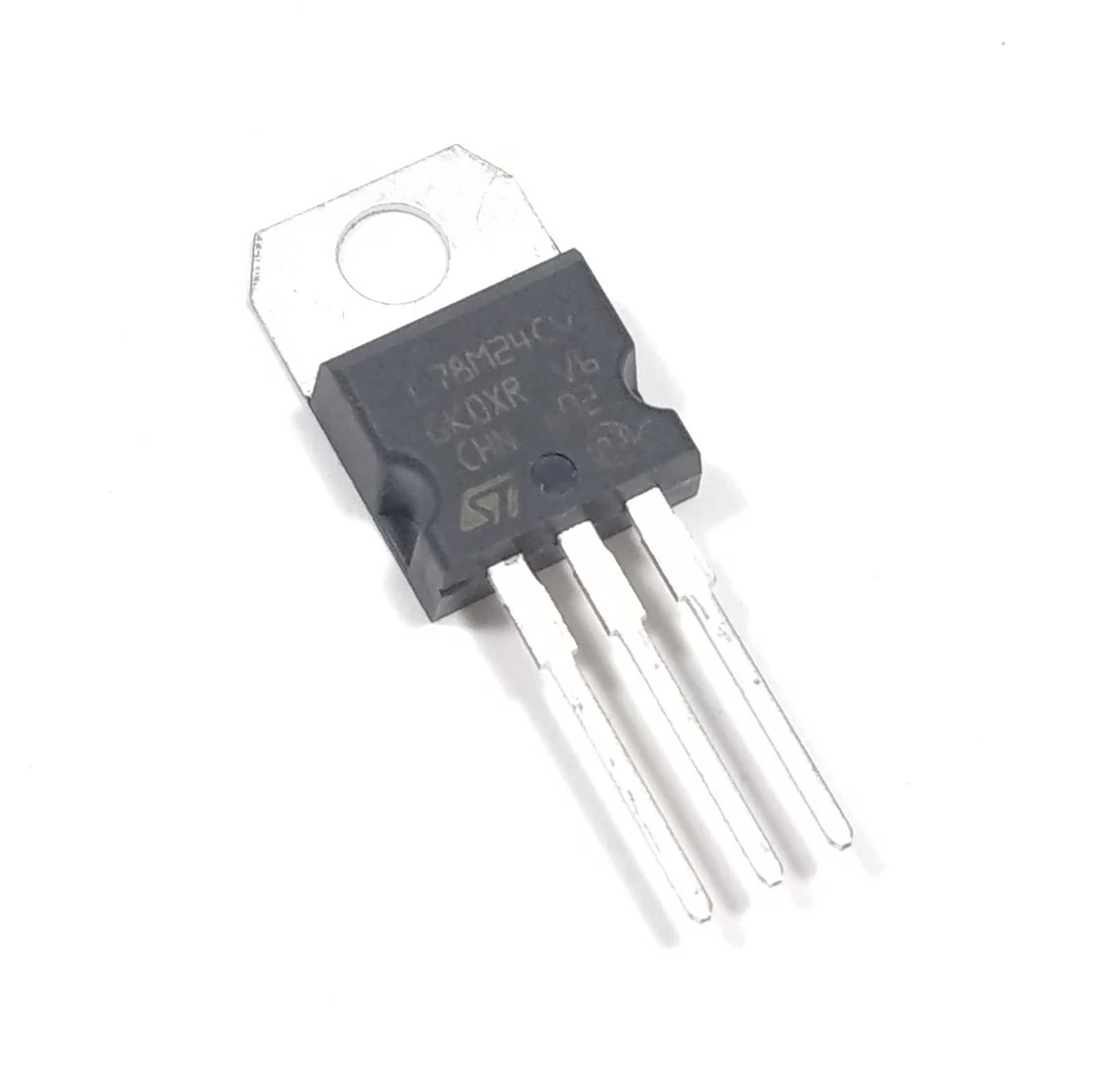

The LM7824 is a positive voltage regulator designed to provide a stable +24V output with an output current capability of up to 1.5A. This IC is commonly used in applications that require a consistent 24V power supply. It is available in a TO-220 package and includes built-in thermal overload and short circuit protection, making it robust and reliable for various electronic projects.
Due to its ability to deliver higher current, the LM7824 can generate considerable heat, so it is recommended to use a heat sink for projects that consume more power. The IC also requires two external capacitors (0.33uF for input and 0.1uF for output) to ensure stable operation.
Output Voltage: +24V
Output Current: Up to 1.5A
Minimum Input Voltage: 33V
Maximum Input Voltage: 40V
Thermal and Short Circuit Protection: Built-in overload and short-circuit protection
Junction Temperature (Maximum): 125°C
Package: TO-220
External Capacitors: Requires 0.33uF (input) and 0.1uF (output) ceramic capacitors for stabilization

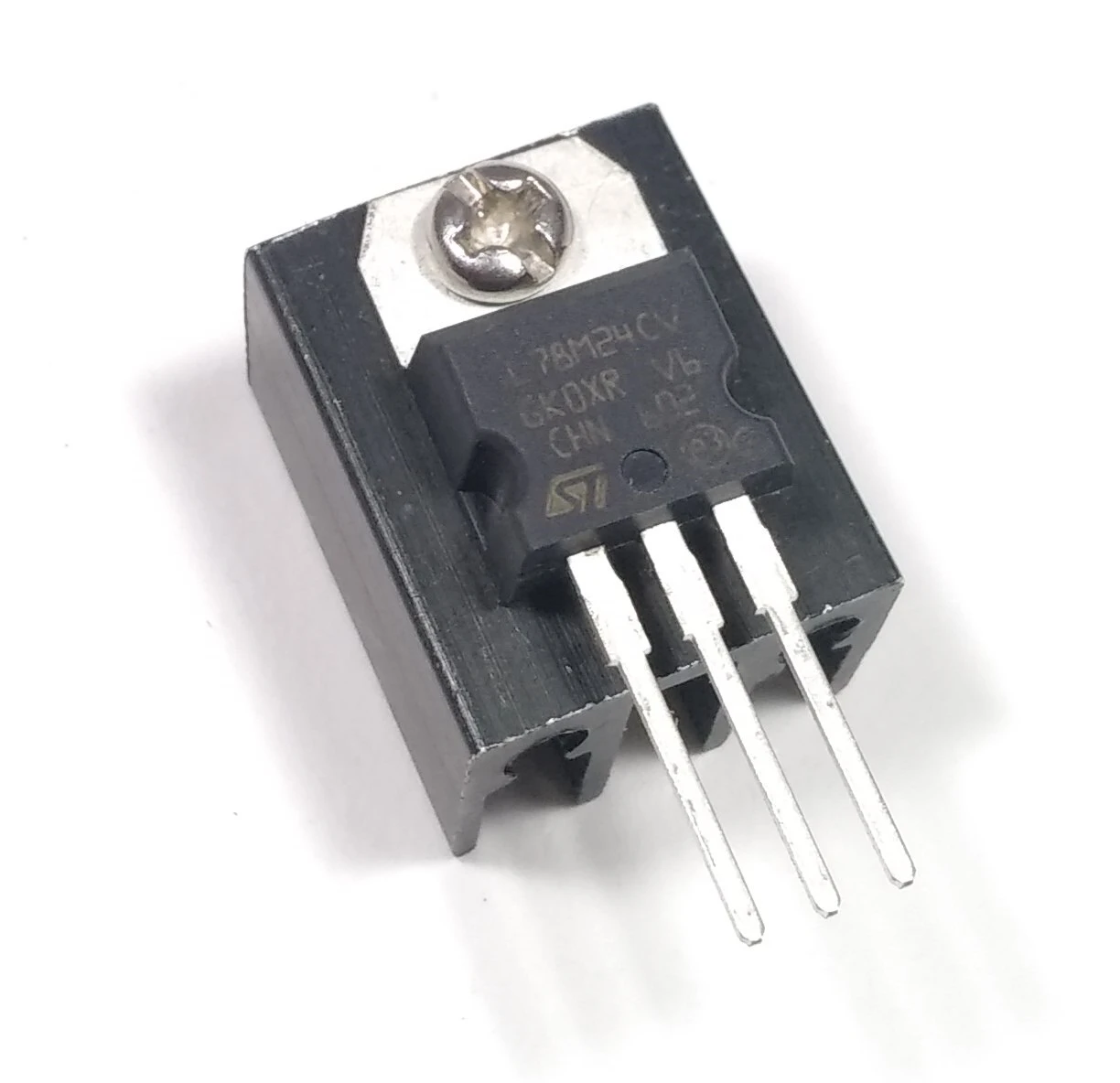

Heat Dissipation: Heat sink recommended for high current loads

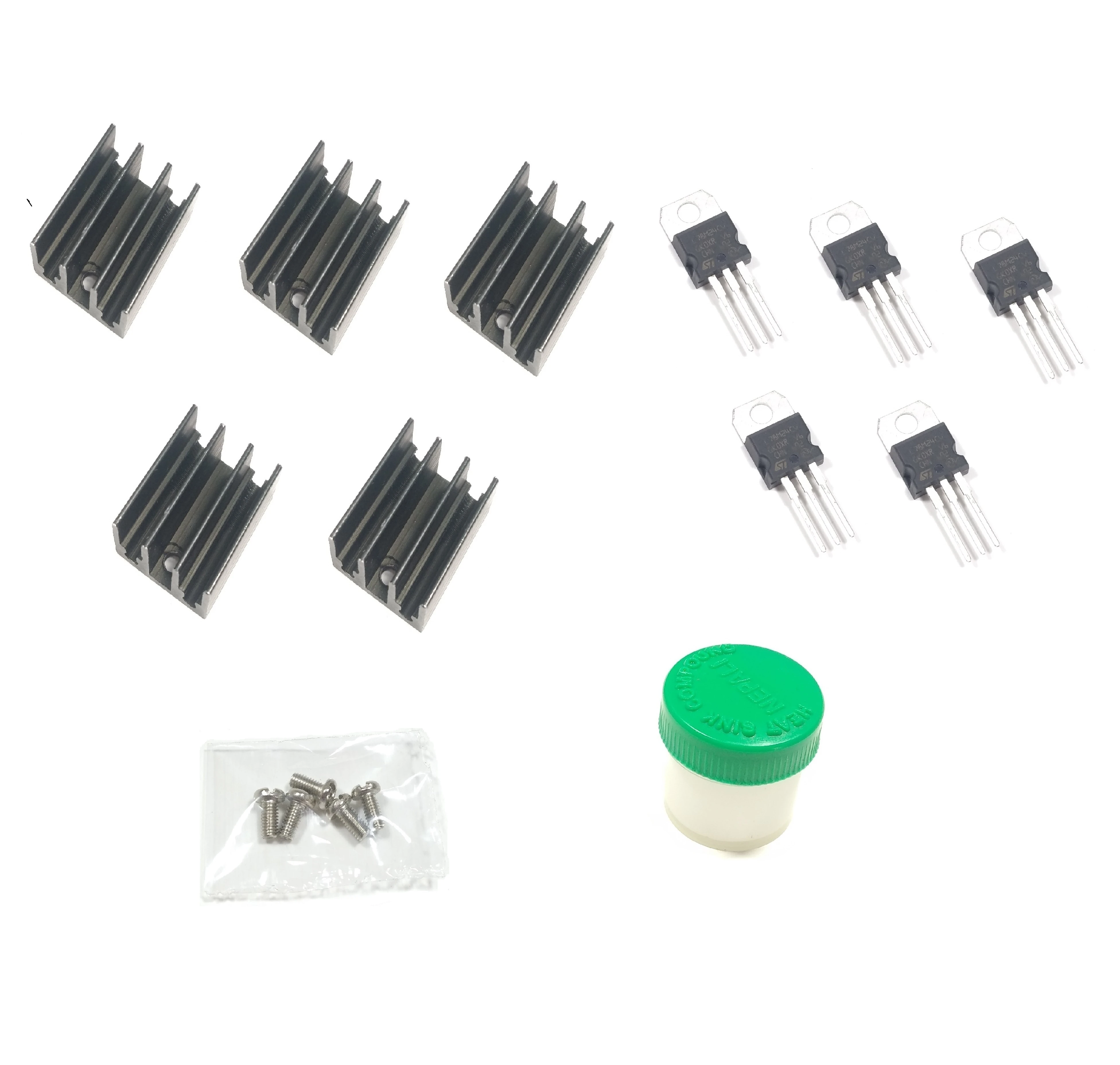

1x Heat Sink Compound
5x LM7824 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws
Positive Voltage Power Supplies
Voltage Conversion Circuits
Commercial and Experimental Projects
The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
