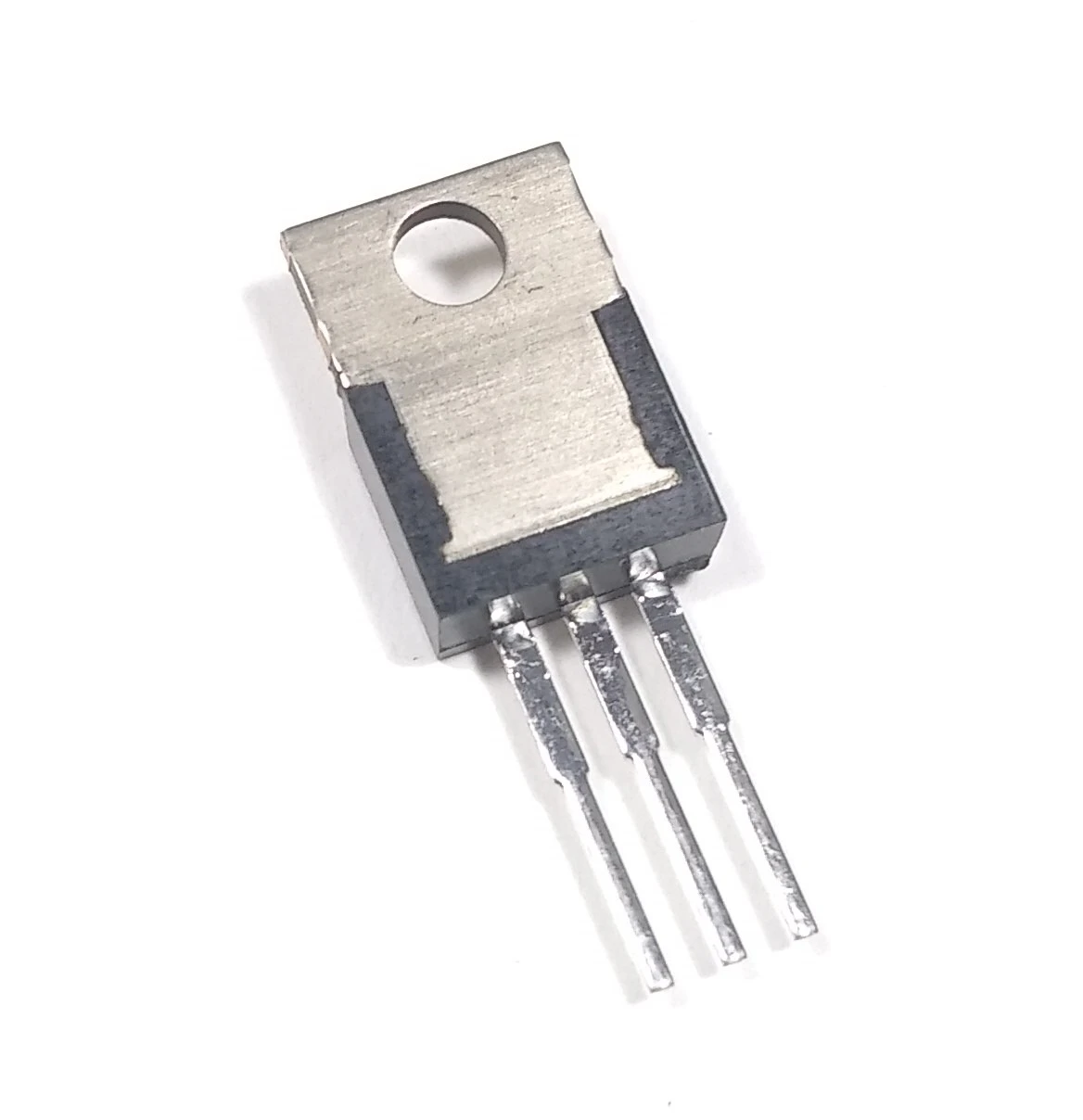

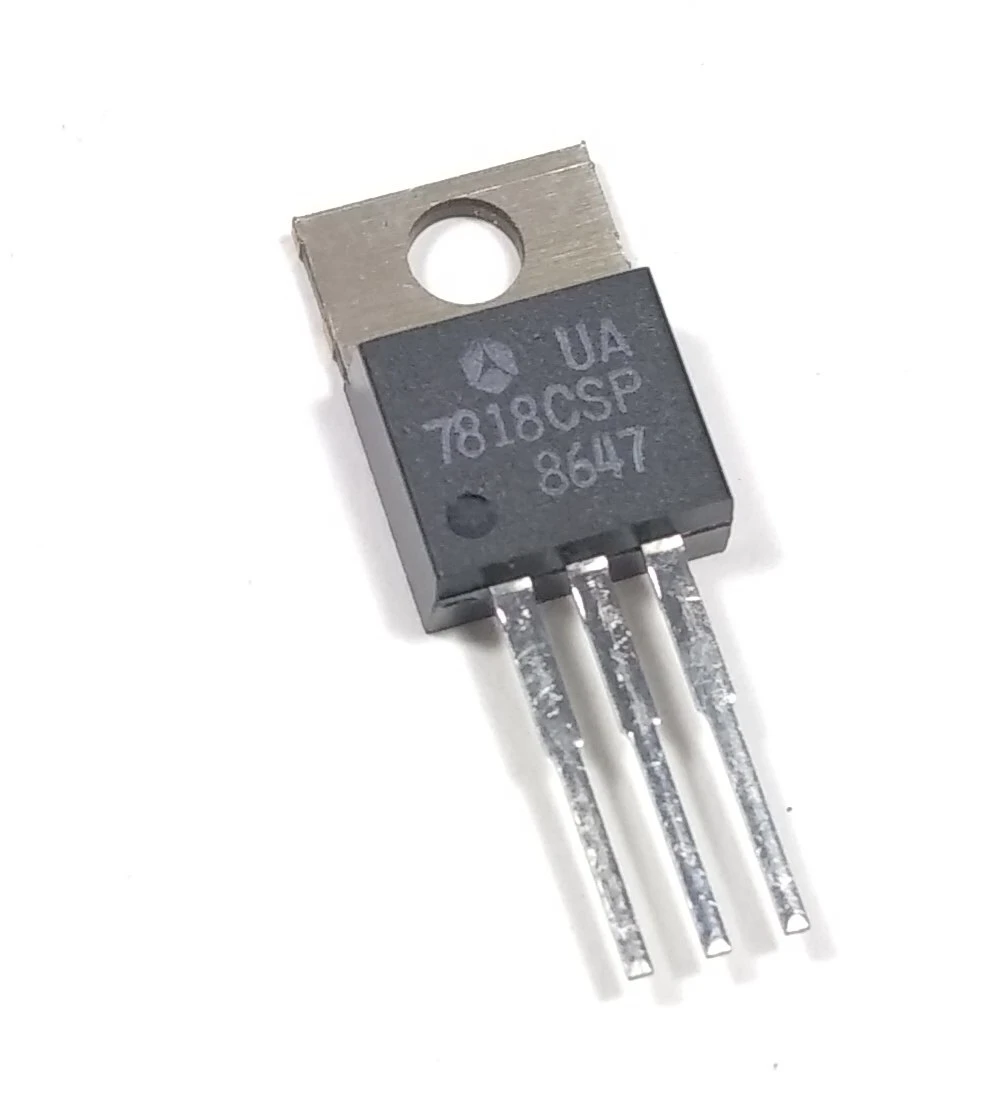

The LM7818 is a positive voltage regulator designed to provide a stable 18V output with an output current range of 1A to 1.5A. Manufactured in a TO-220 package, this regulator is part of the LM78xx series, making it widely available and reliable.

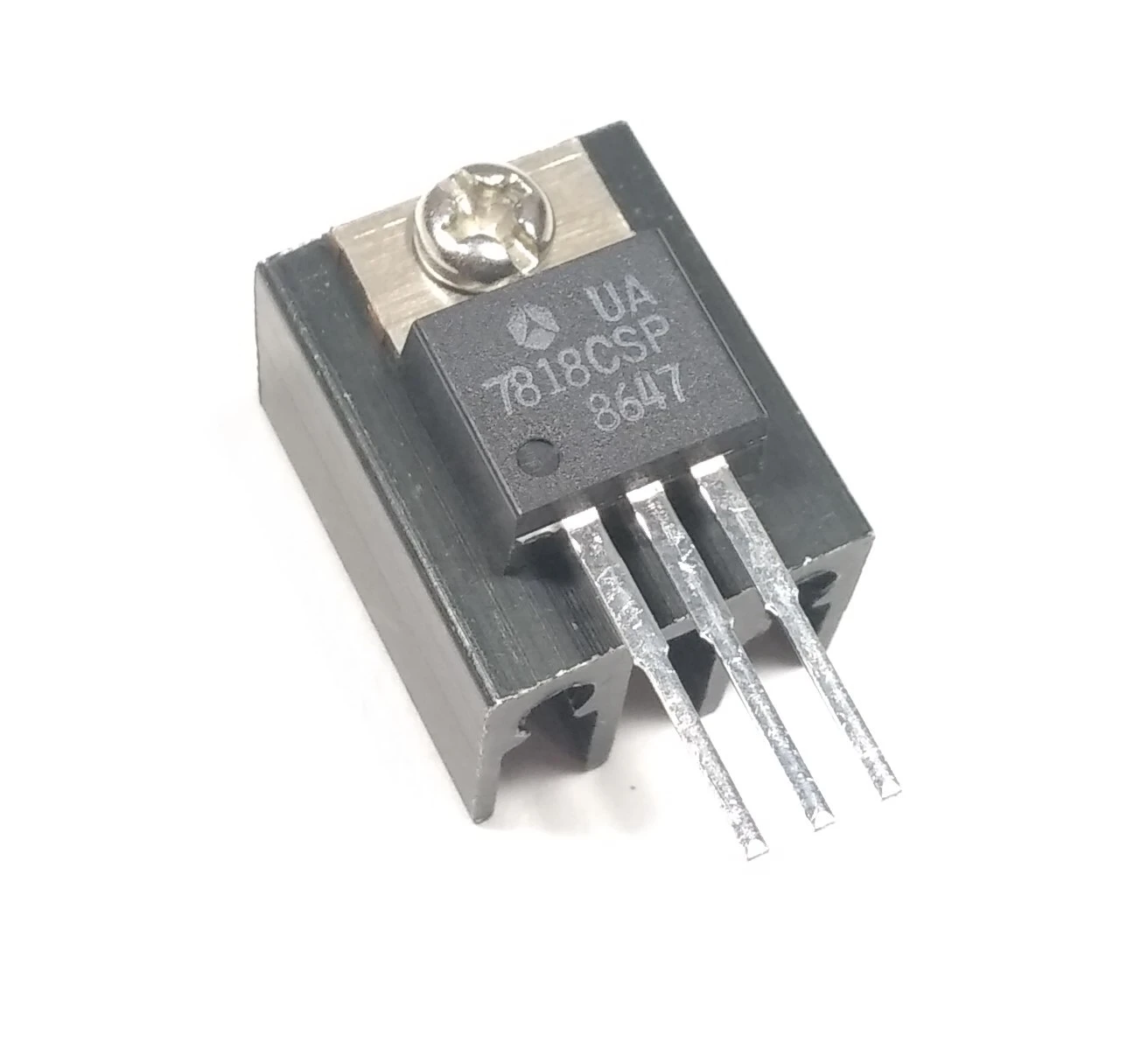

The IC comes with built-in short circuit protection and overheat shutdown functions, making it ideal for both commercial and experimental projects. However, a heat sink is essential to prevent overheating and ensure smooth operation. Without it, the IC will automatically shut down due to the built-in thermal protection.
Output Voltage: 18V (fixed)
Output Current: 1A to 1.5A (depending on the manufacturer)
Maximum Input Voltage: 35V DC
Standby Current: Only 8mA
Thermal Overload Protection: Built-in overheat shutdown function
Short Circuit Protection: Built-in short circuit shutdown function
Package: TO-220
Low Cost: Affordable and widely available
Ideal for Commercial Equipment: Robust and long-lasting design

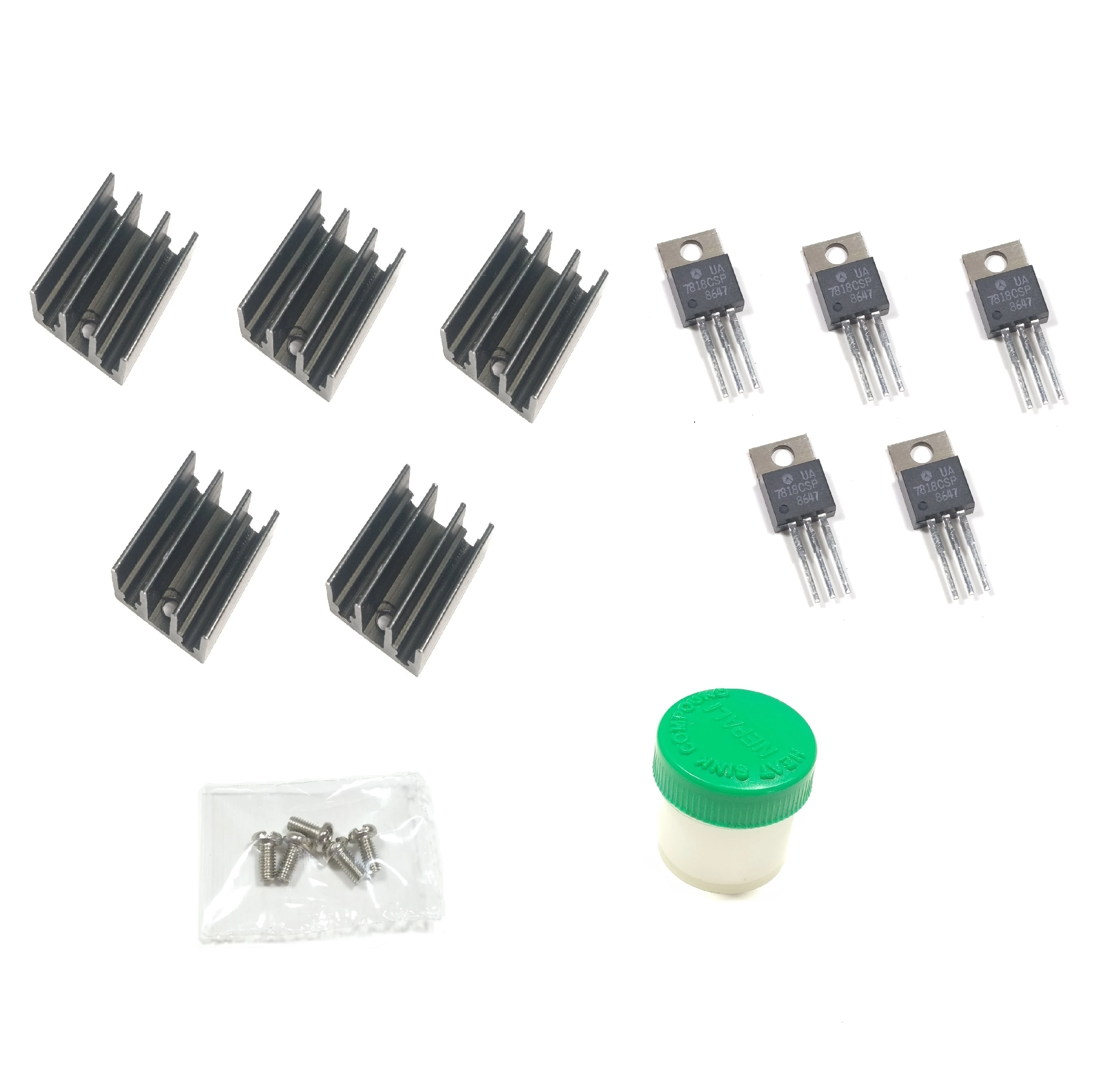

1x Heat Sink Compound
5x LM7818 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws
Voltage Regulation Circuits
Commercial and DIY Power Supplies
Voltage Converter Circuits
Overload and Short Circuit Protection
The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
