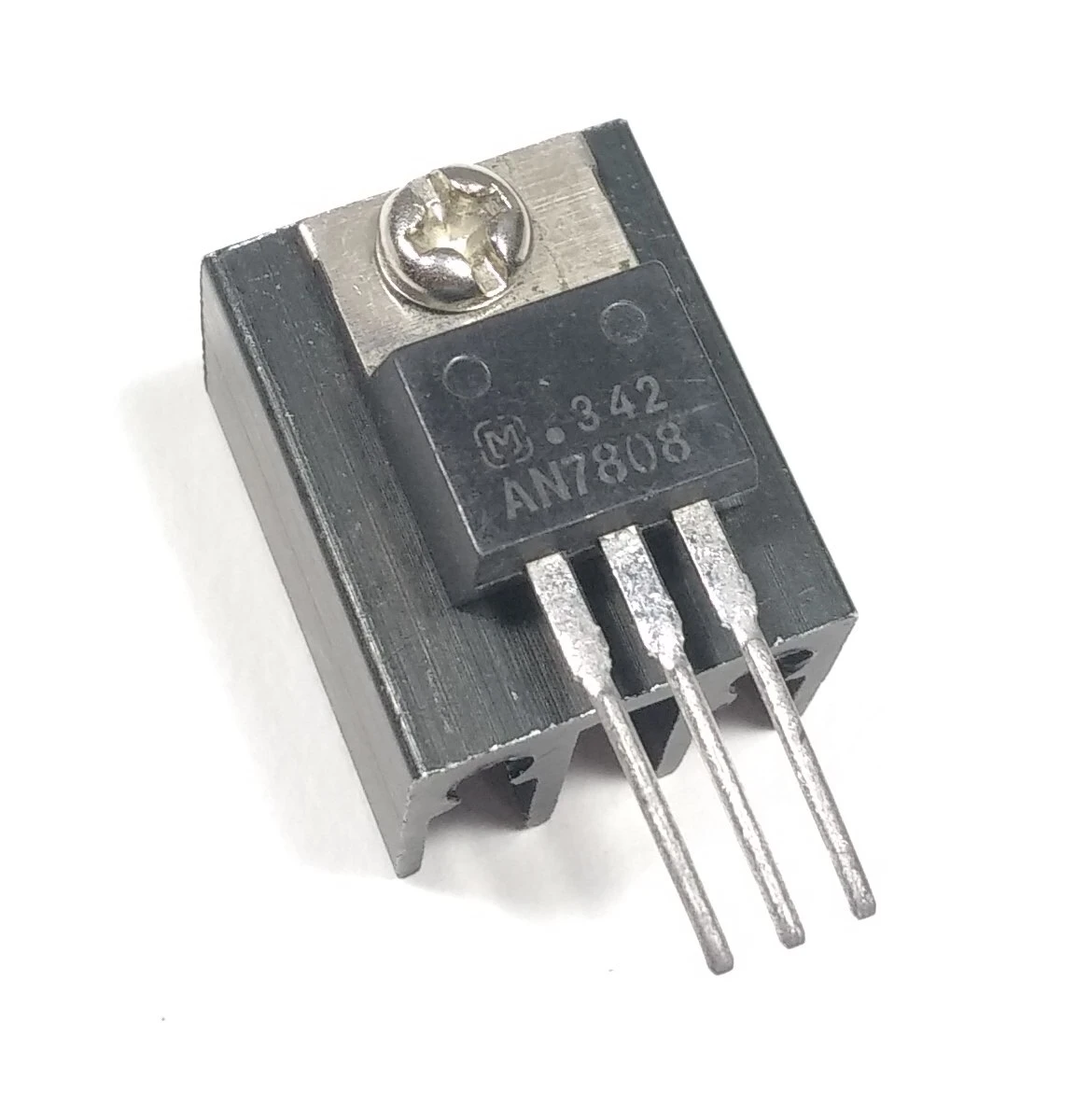

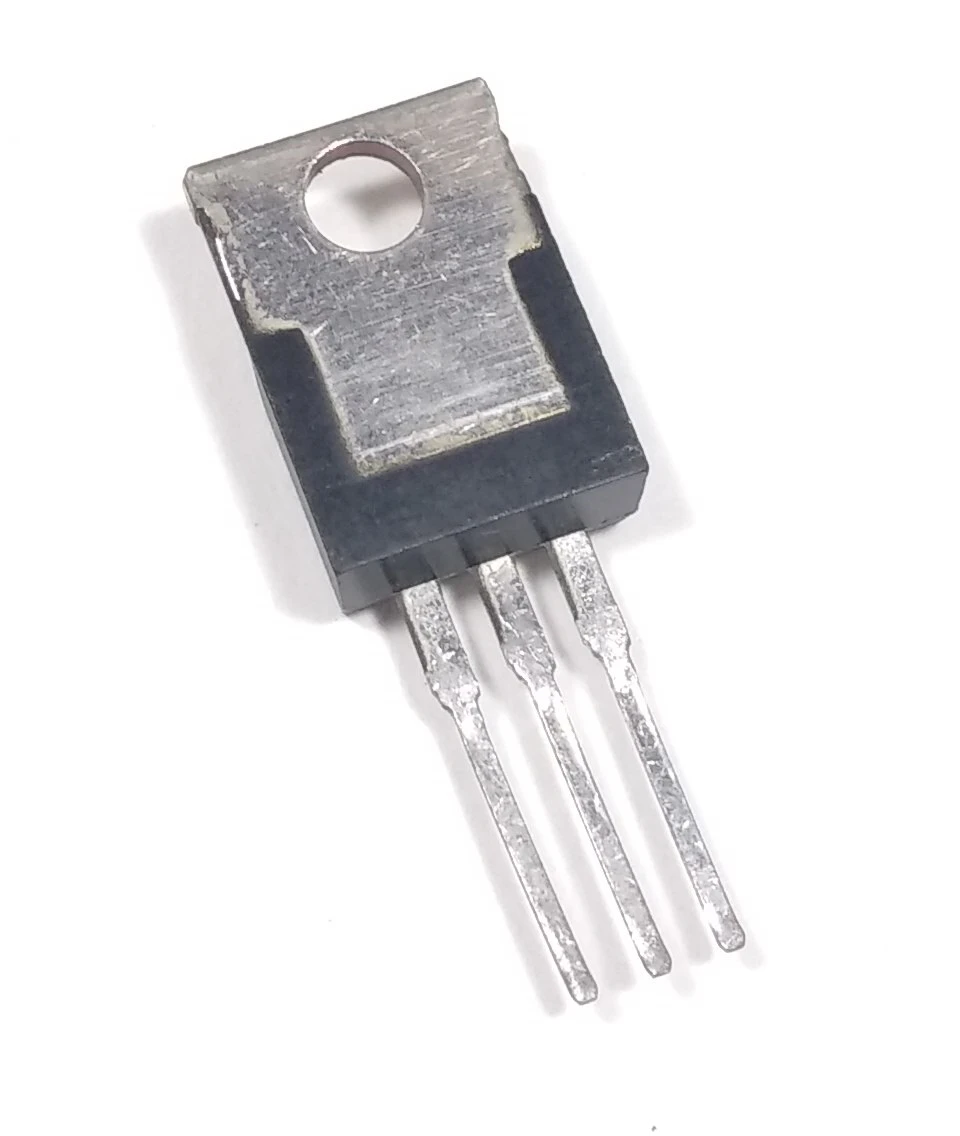

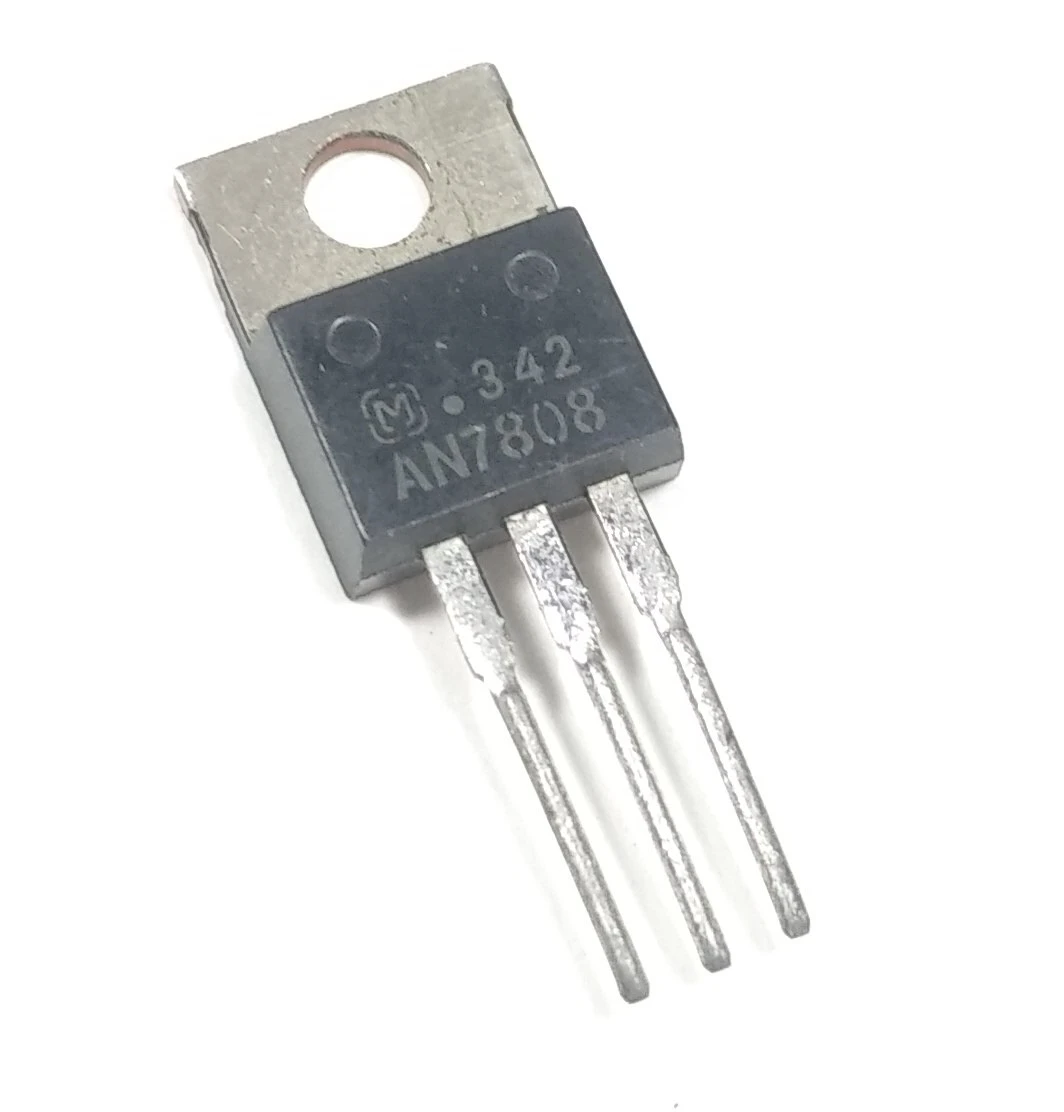

The LM7808 is a positive voltage regulator IC that provides a fixed output of 8V DC with a maximum output current of 1.5A. It is available in the TO-220 package and is commonly used in various commercial and educational electronic applications. This voltage regulator ensures a stable output voltage, even if the input voltage fluctuates, as long as the input voltage is at least 2-3V higher than the output voltage.
The LM7808 is designed to offer both short circuit shutdown and overheat shutdown protection, making it a reliable choice for power supply circuits. With a low standby current of 8mA, it is efficient and cost-effective for use in projects requiring accurate and fixed 8V output.
Output Voltage: 8V (fixed)
Output Current: Up to 1.5A
Short Circuit Shutdown: Built-in short circuit protection
Overheat Shutdown: Built-in overheat protection
Operating Temperature Range: -40°C to +125°C
Package: TO-220
Minimum Input Voltage: 10V
Maximum Input Voltage: 35V
Standby Current: 8mA

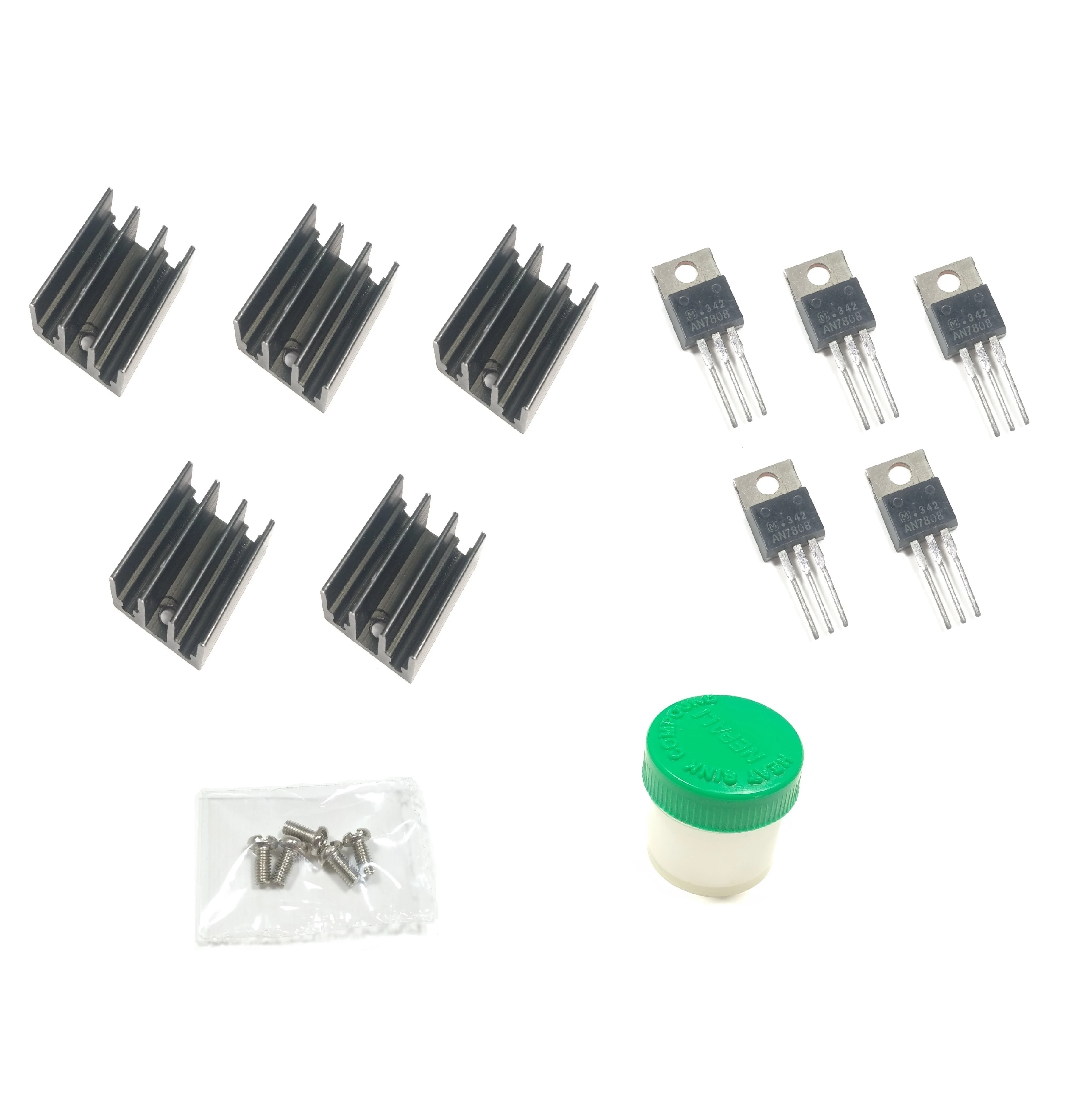

1x Heat Sink Compound
5x LM7808 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws
Power Supply Circuits
Voltage Regulation Projects
Overload and Short Circuit Protection Systems
Commercial and Educational Electronics Projects
The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
