The LM7806 is a positive voltage regulator IC from the LM78xx series. It provides a stable 6V output with a current range of 1A to 1.5A, making it ideal for applications that require consistent voltage regulation. The IC includes built-in short circuit protection, overheat shutdown, and overload protection, making it a reliable and robust choice for commercial equipment and electronic projects.
With a maximum input voltage of 35V DC, the LM7806 ensures that you can use a wide range of input voltages, though it requires a minimum input voltage of 8V for stable 6V output. For efficient operation, a heatsink is recommended to manage the heat dissipation during use.
Output Voltage: 6V (fixed)
Output Current: 1A to 1.5A
Built-in Short Circuit Protection
Built-in Overheat Protection/Shutdown
Maximum Input Voltage: 35V DC
Quiescent (Standby) Current: 8mA
Dropout Voltage: 2V @ 1A
Operating Temperature Range: 0°C to +125°C
Package: TO-220
1x Heat Sink Compound

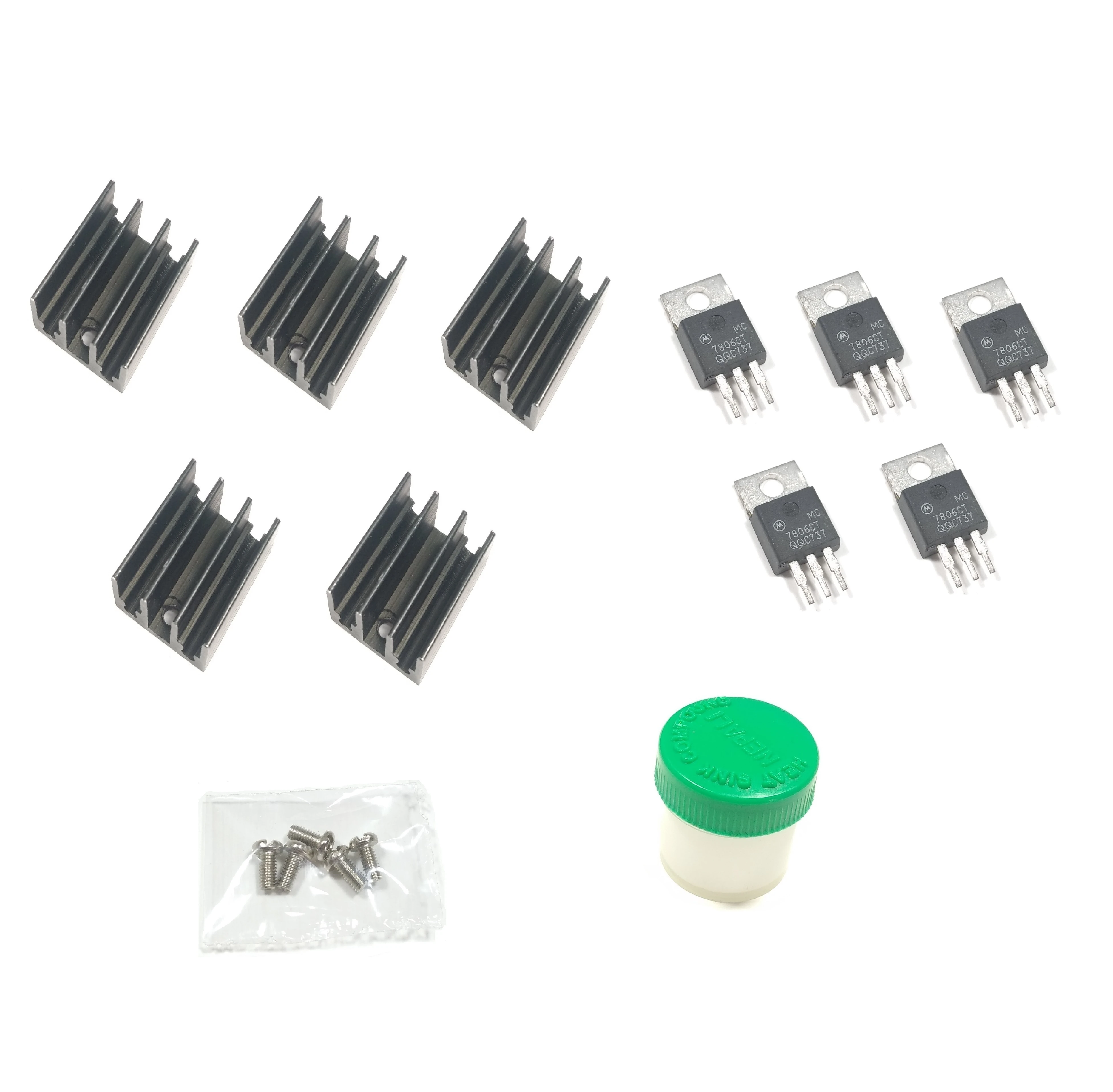

5x LM7806 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws
Power Supply Circuits
Voltage Regulation Projects
Overload and Short Circuit Protection Systems
Commercial and Educational Electronics Projects
