LM7805 Transistor with Heat sink and Heat sink compound (pack of 5)

LM7805 Transistor with Heat sink and Heat sink compound (pack of 5)
SKU: 134427

(0) 0 Reviews 0 Orders 0 Wish listed

₹78.00 (Excluded Tax)

Quantity:

Total price :

(Tax : )

Download Data Sheet

Overview
Reviews

Description:

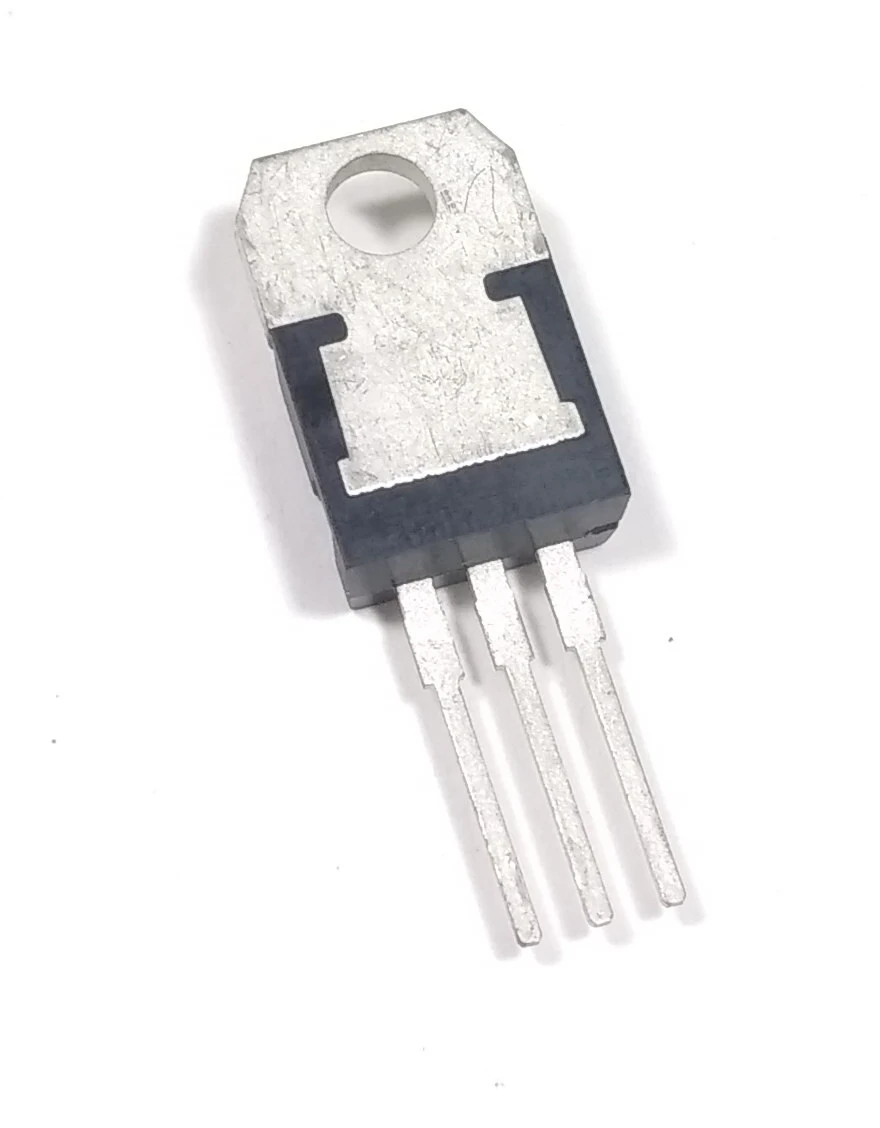

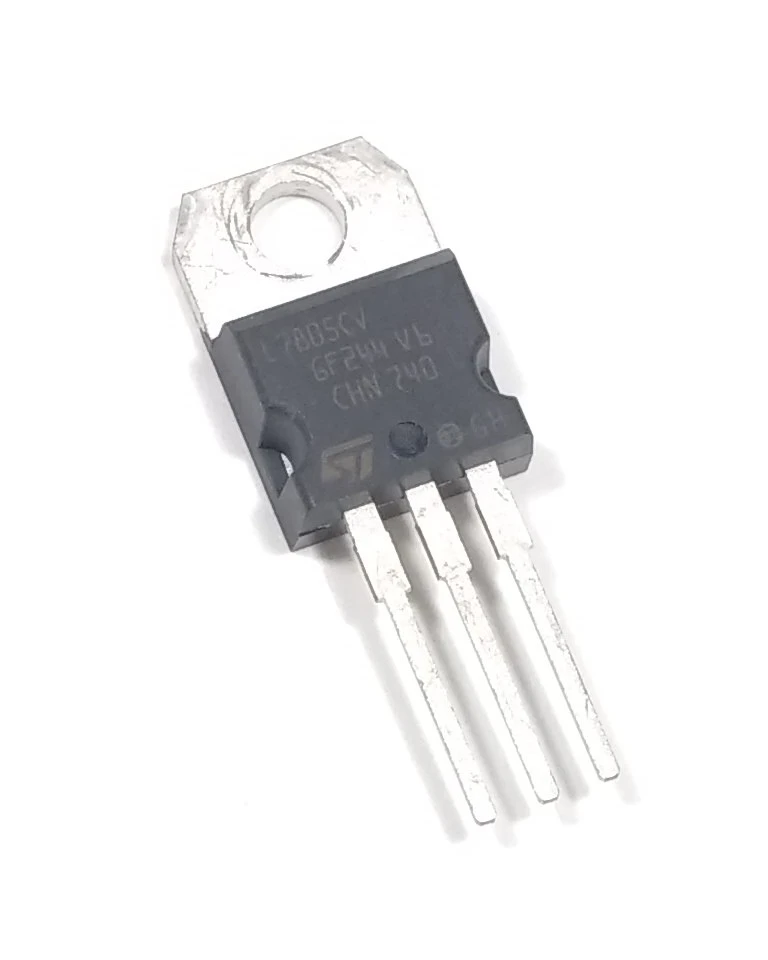

The LM7805 is a positive voltage regulator that provides a stable 5V output with a current range of up to 1.5A. It is one of the most commonly used voltage regulator ICs in various electronic projects and applications. The name 7805 signifies that it is a positive voltage regulator ("78") and it provides a 5V output ("05").

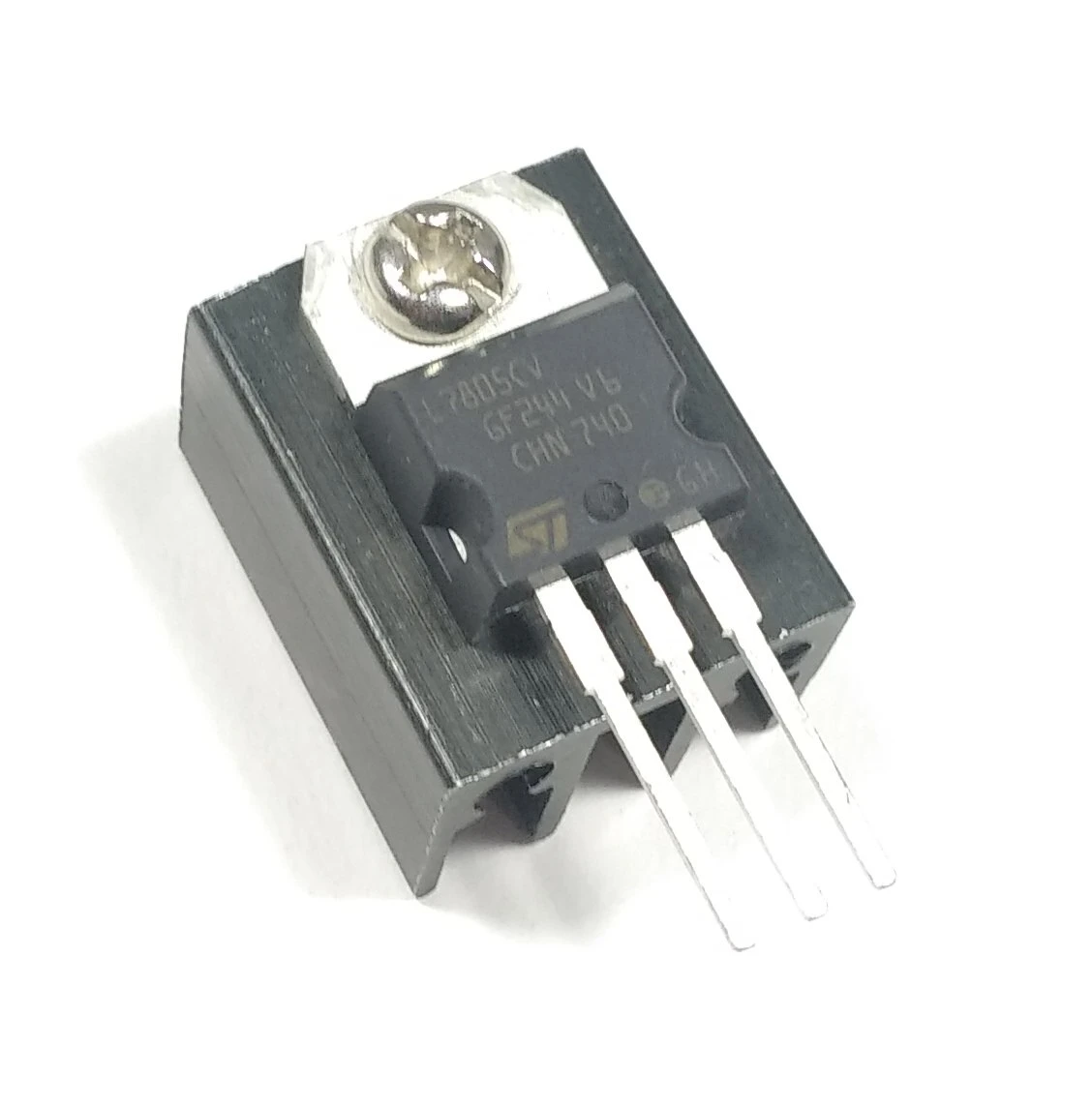

The LM7805 is ideal for low-power electronics, where you need a consistent voltage output regardless of fluctuations in the input. However, since it dissipates a significant amount of heat during operation, a heatsink is recommended when handling higher currents, especially in commercial and educational projects.

Features:

Output Voltage: 5V (fixed)
Output Current: Up to 1.5A
Minimum Input Voltage: 7V
Maximum Input Voltage: 25V
Operating Current (IQ): 5mA
Thermal Overload Protection: Built-in
Short Circuit Protection: Built-in
Maximum Junction Temperature: 125°C
Package: TO-220

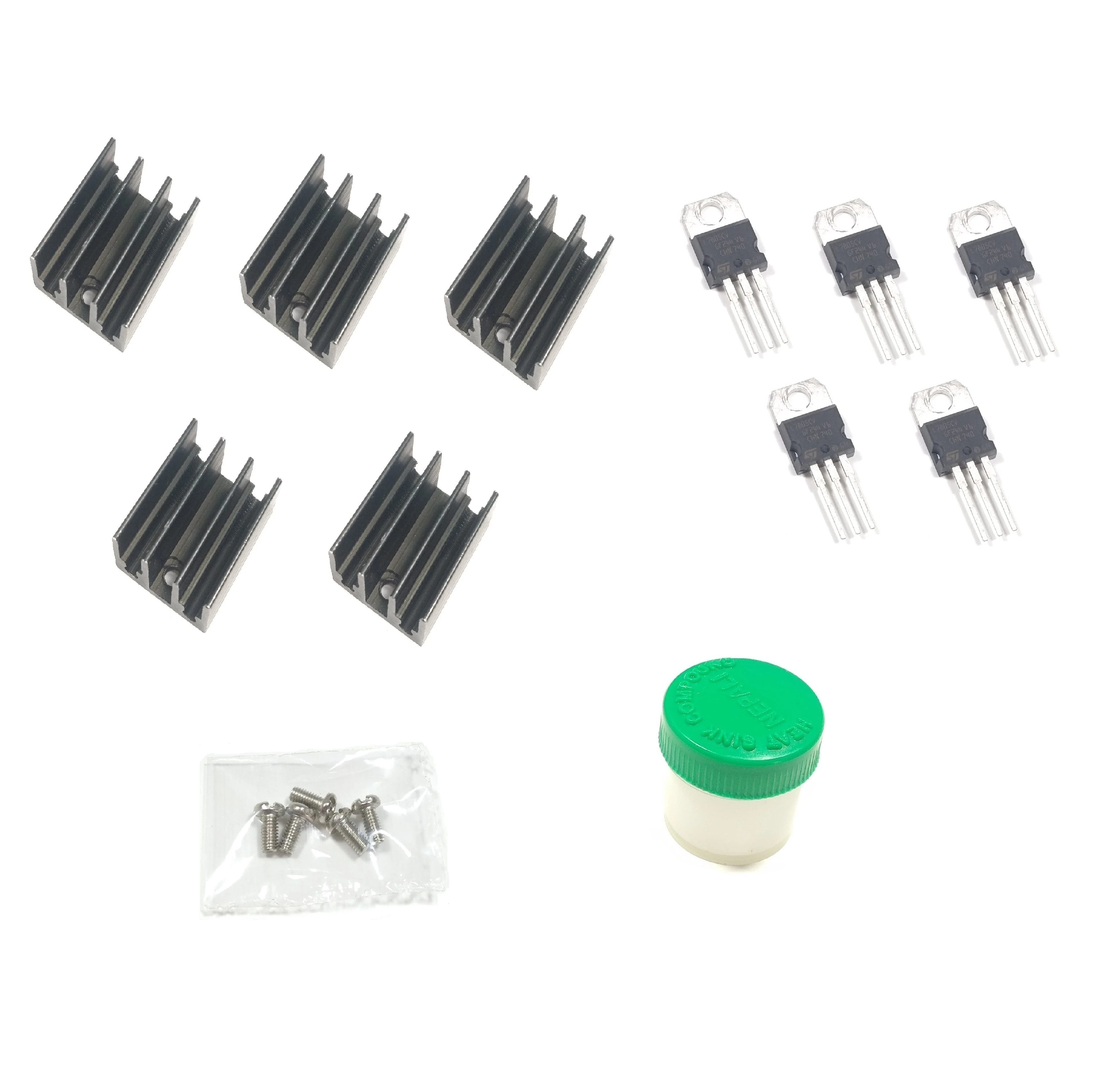

Package Includes:

1x Heat Sink Compound
5x LM7805 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws

Applications:

Power Supply Circuits
Voltage Regulation Projects
Embedded Systems
Battery-Powered Circuits
