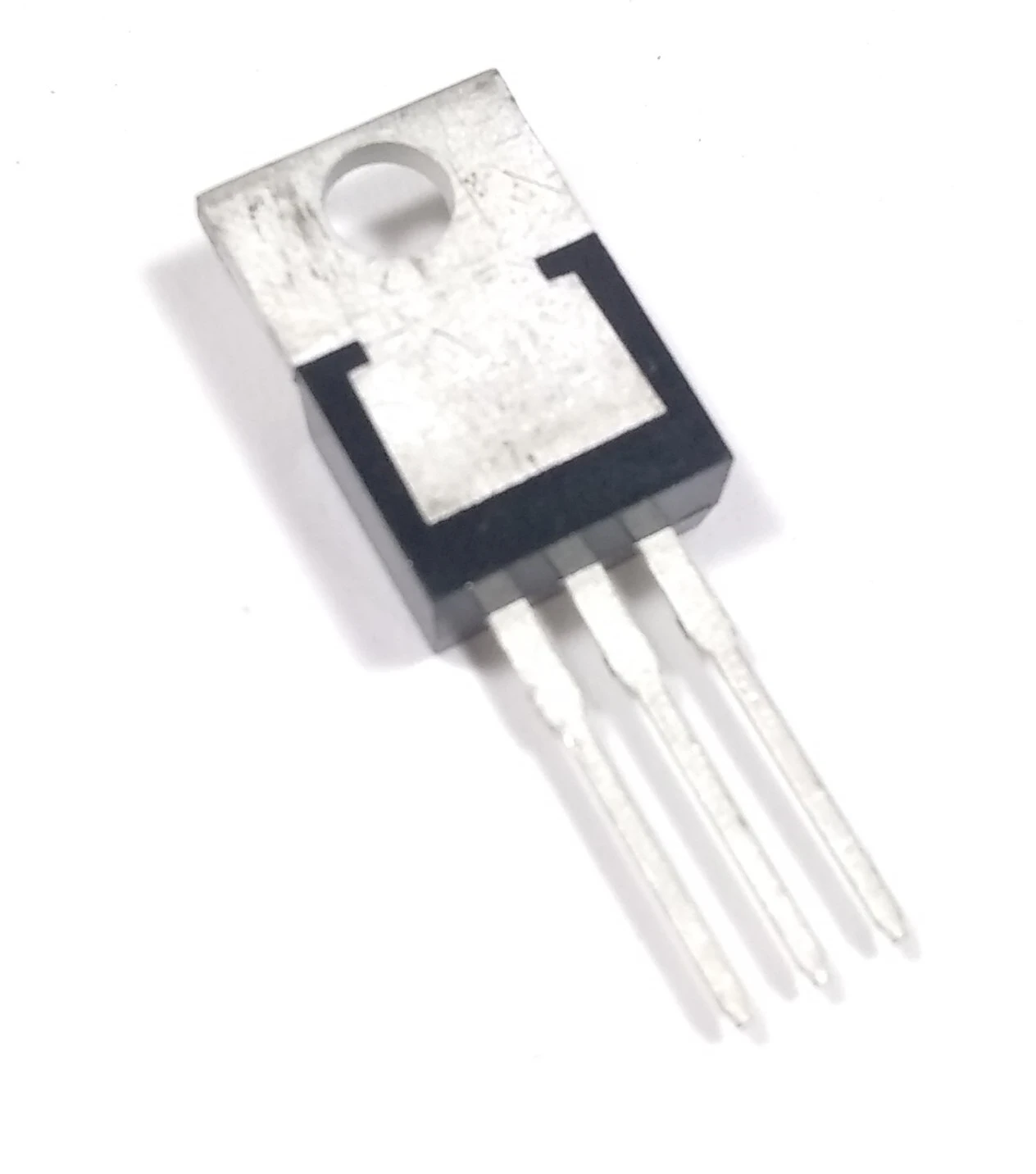

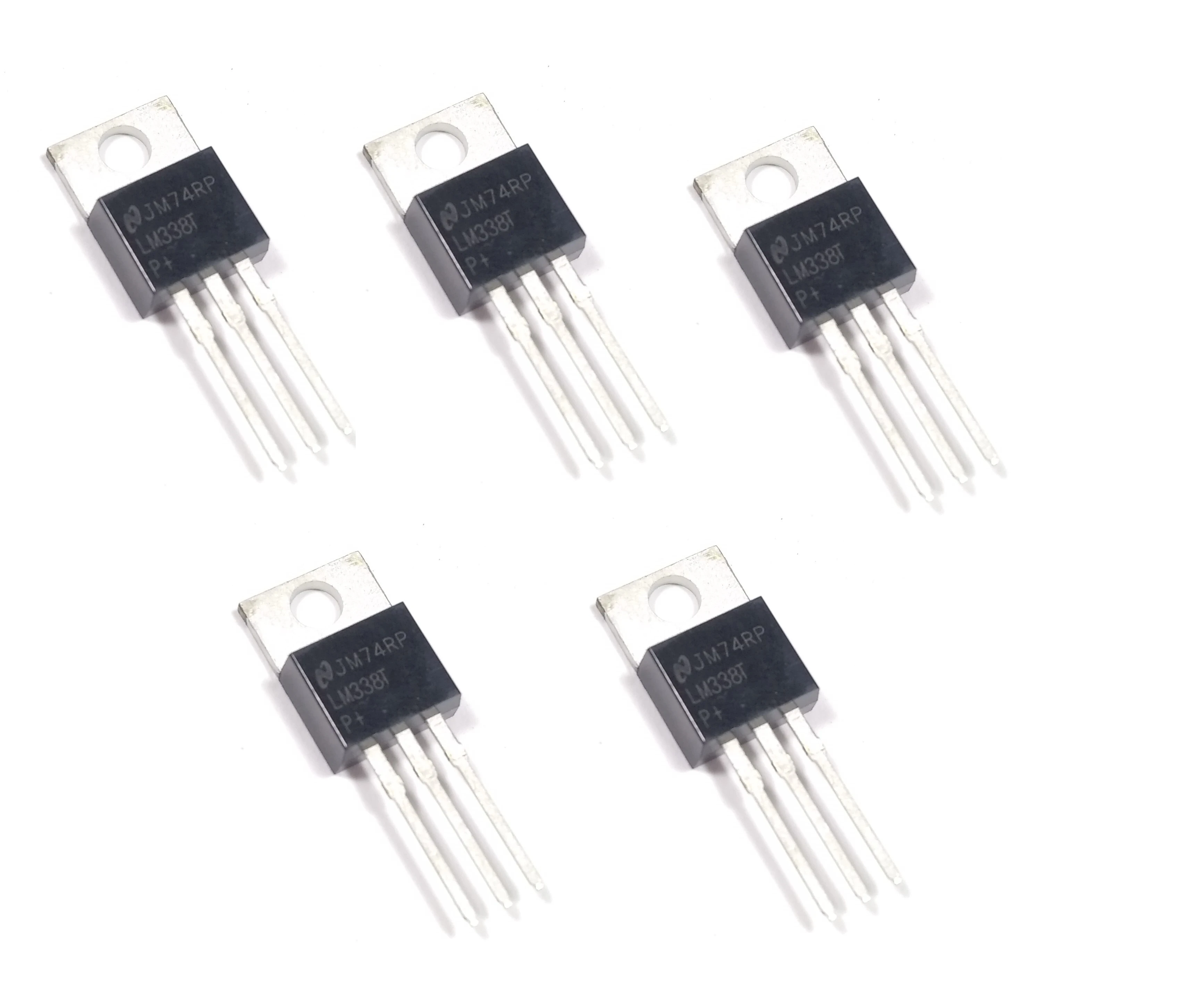

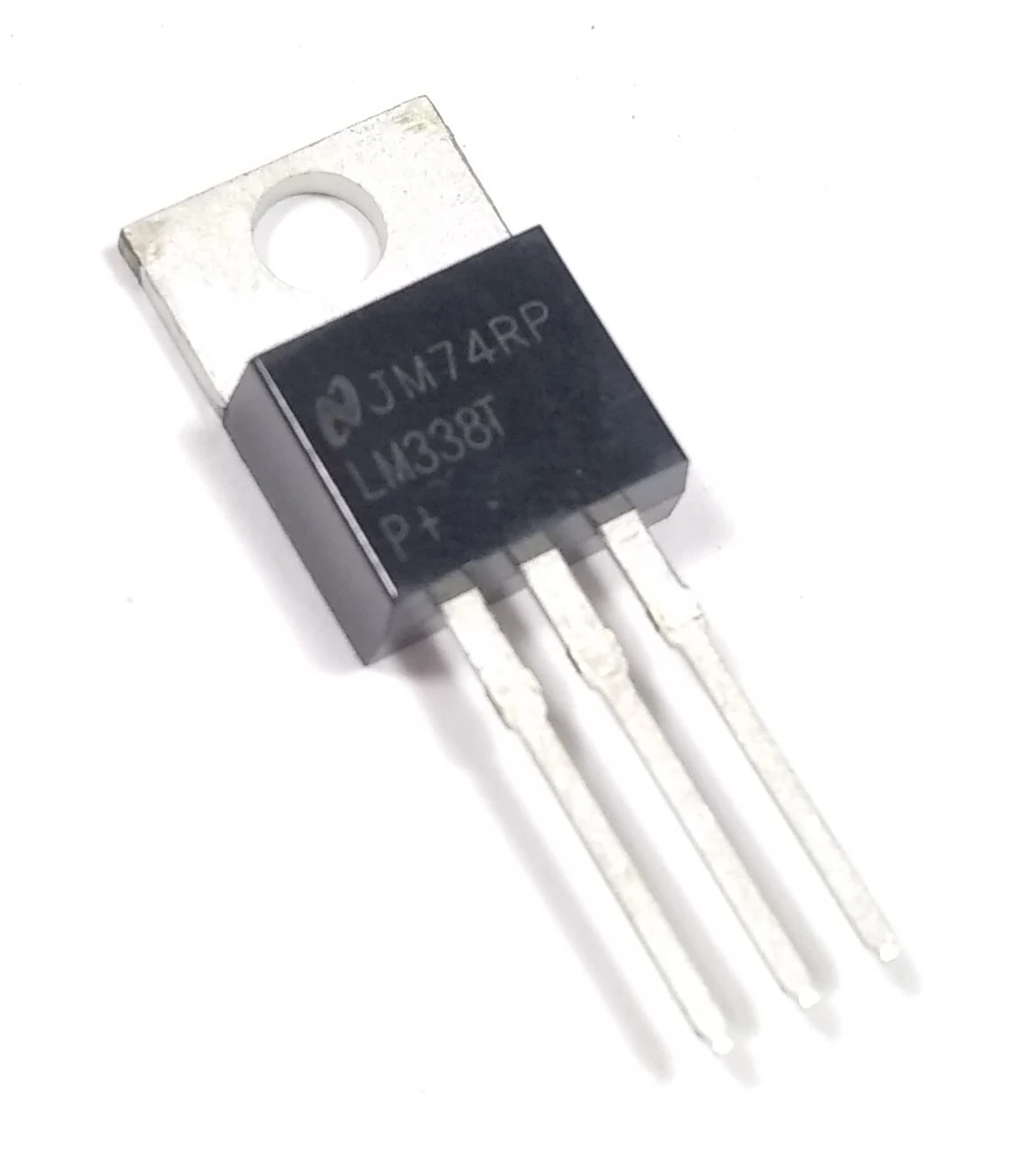

The LM338T is a three-terminal adjustable positive voltage regulator available in a TO-220 package, capable of providing stable output voltages. This versatile IC allows output voltage adjustment from 1.2V to 32V DC, making it ideal for a variety of applications where flexible voltage regulation is required. It can deliver up to 5A of continuous output current, with 7A peak current.
This regulator is especially useful in scenarios where input voltage fluctuates, as it maintains a stable output voltage. To ensure reliable performance, the input voltage must always be 2-3V higher than the output. For example, if the output is set to 5V, a minimum input voltage of 7V is required.
With low standby current and minimal external components (only two resistors for output adjustment), the LM338T is a cost-effective and reliable solution for commercial and industrial applications.
Package Type: TO-220
Output Current: Up to 5A (Continuous), 7A (Peak)
Adjustable Output Voltage: 1.2V to 32V
Short Circuit Protection
Overheat Shutdown Protection
Low Standby Current
Low External Components: Requires only two resistors for output voltage adjustment
Maximum Input Voltage: 40V DC
Cost-Effective
Reliable for Commercial Use
Power Supplies
Adjustable Voltage Regulators
Battery Chargers
Solar Power Systems
Test Equipment
Embedded Systems
Product specifications, features, and design may change over time due to product updates or improvements.
