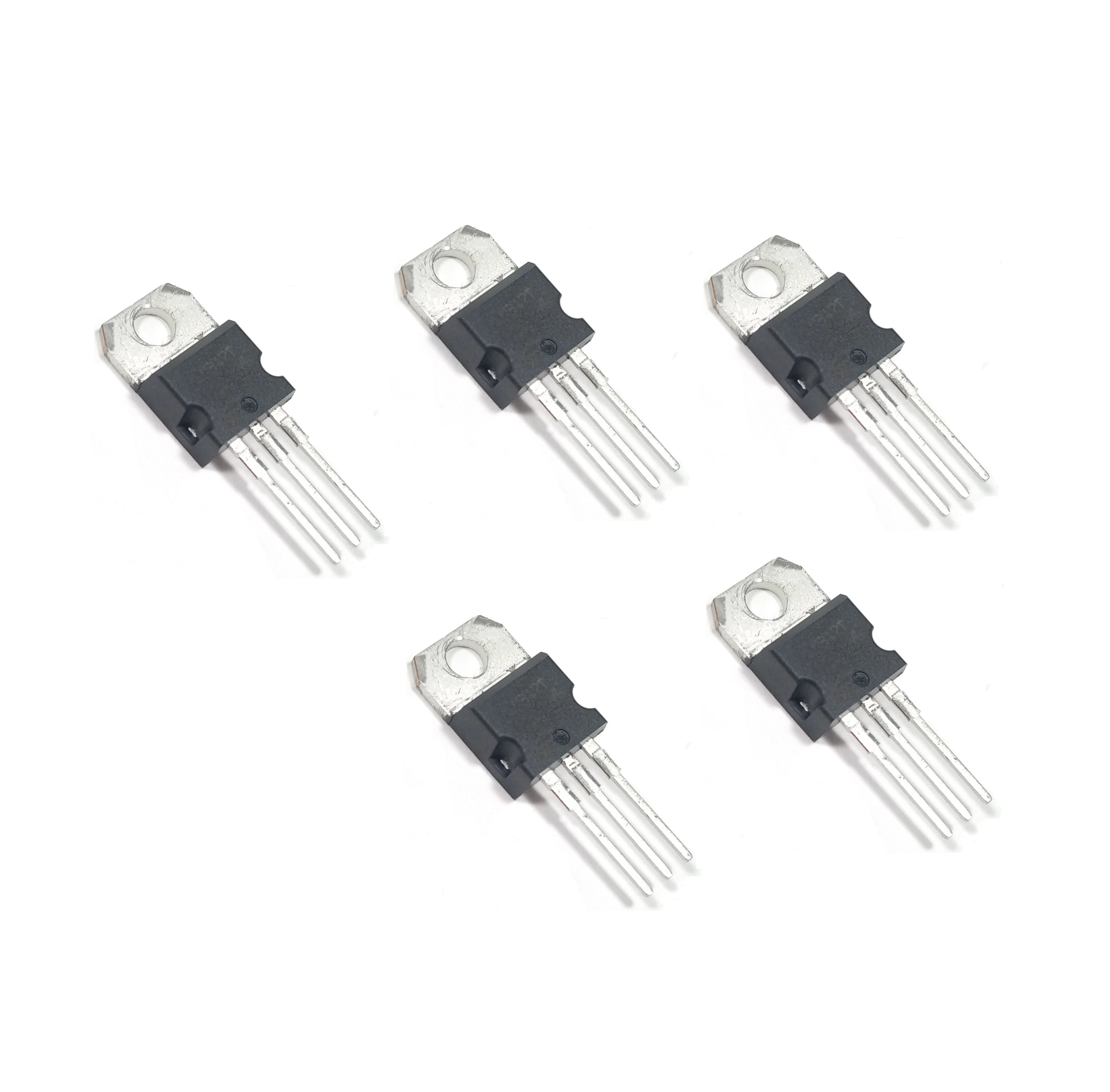

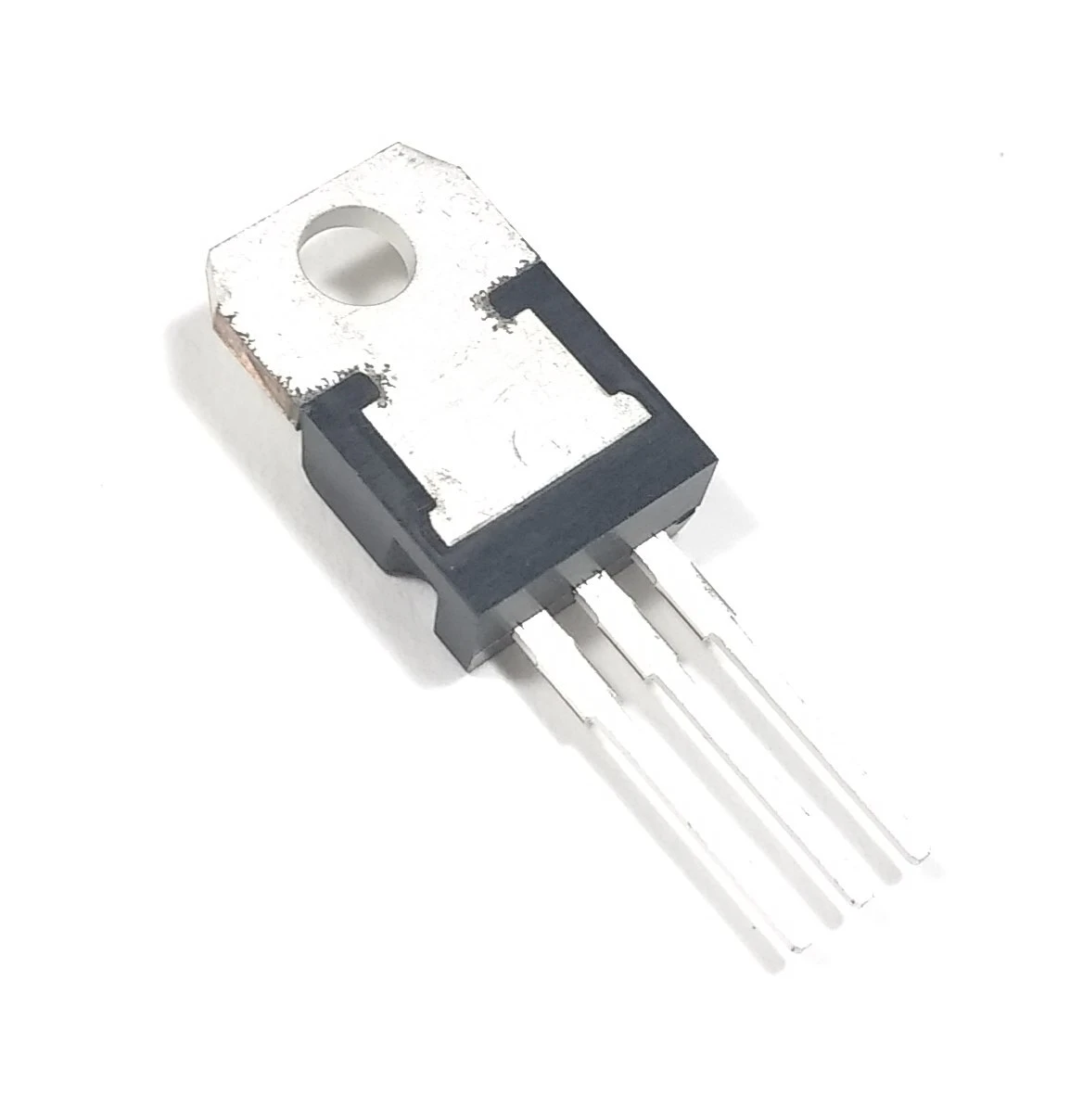

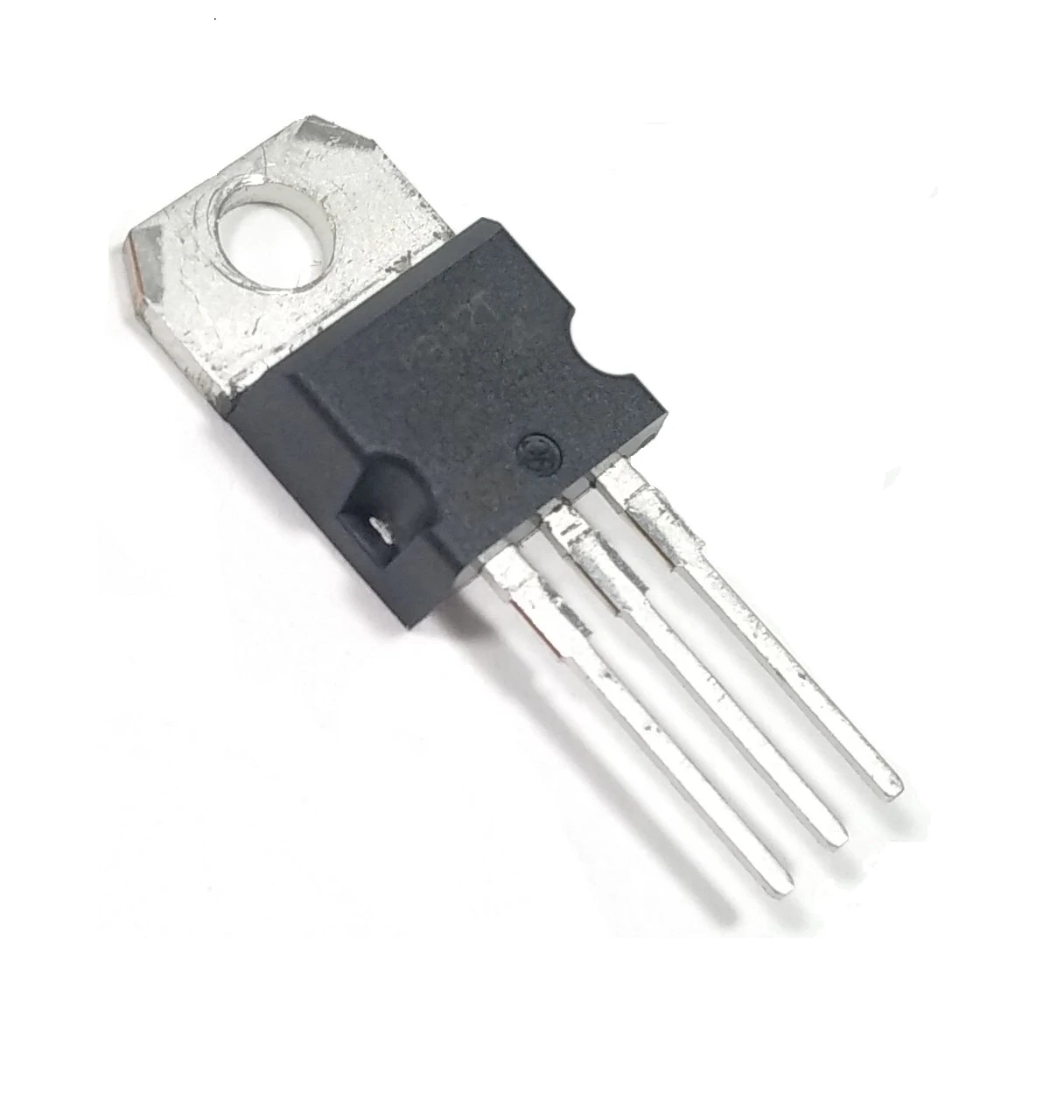

The LM317 is a monolithic integrated circuit designed for use as a positive adjustable voltage regulator. Available in a TO-220 package, the LM317 can supply more than 1.5A of load current with an adjustable output voltage range of 1.2V to 37V. This makes it an excellent choice for applications requiring flexible and stable power supply solutions.
The output voltage is easily selected using a resistive divider, simplifying the design process and eliminating the need to stock multiple fixed regulators. The LM317 also features a complete set of protections, including current limiting, thermal shutdown, and Safe Operating Area (SOA) control, ensuring safe and reliable operation.
Adjustable Output Voltage Range: From 1.2V to 37V
Output Current: In excess of 1.5A
Line and Load Regulation: 0.1% typical
Floating Operation: Capable of high voltage applications
Protections: Current limiting, thermal shutdown, and SOA control for safe operation
Easy to Use: Voltage selection via a resistive divider eliminates the need for multiple fixed regulators
Power Supply Design
Battery Chargers
Adjustable Voltage Regulators
Laboratory Power Supplies
Voltage Regulation in Electronics
Product specifications, features, and design may change over time due to product updates or improvements.
