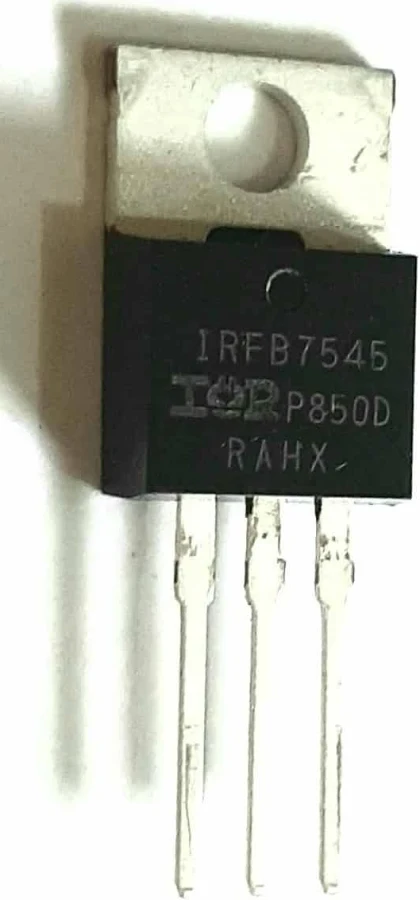

IRFB7545

In Stock

SKU: R3-F-12-7

IRFB7545

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹45.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The IRFB7545 is a high-performance N-Channel power MOSFET designed for low-voltage, high-current switching applications. It features extremely low on-resistance and high current handling capability, making it ideal for motor control, battery management, and DC-DC converters.

Specifications:

Type: N-Channel MOSFET
Drain-Source Voltage (Vds): 60V
Continuous Drain Current (Id): up to 95A
Gate Threshold Voltage: ~2.9V
Rds(on): ~5.9 mΩ @ Vgs = 10V
Gate-Source Voltage: ±20V
Power Dissipation: ~125W
Package: TO-220

The device supports very high current (~95A) with low resistance (~5.9 mΩ), making it efficient for power switching applications

Features:

Very low on-resistance for minimal power loss
High current capability up to ~95A
Fast switching performance
Rugged TO-220 package for heat dissipation
Suitable for low-voltage high-current circuits

Applications:

DC motor drivers
Battery management systems
DC-DC converters
Inverters and power supplies
High-current switching circuits

Pin Configuration:

Gate (G) → Control input
Drain (D) → Load
Source (S) → Ground

Important Note:

Not fully logic-level (best performance at ~10V gate drive)
Requires proper heat sinking at high current
Ideal for 12V–48V systems

Package Includes:

1 × IRFB7545 MOSFET

Disclaimer:
No warranty. No guarantee. No return. No replacement.
