Description:

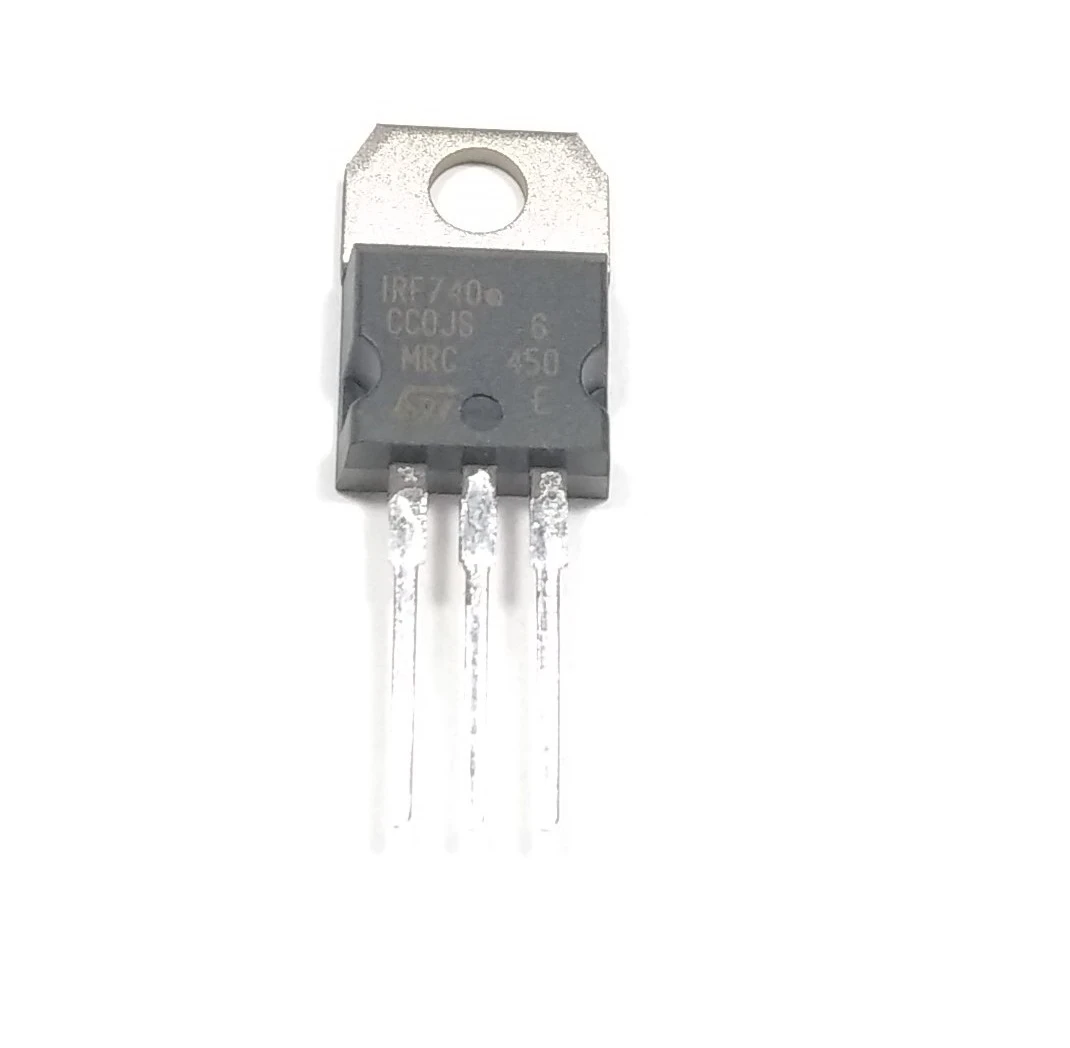

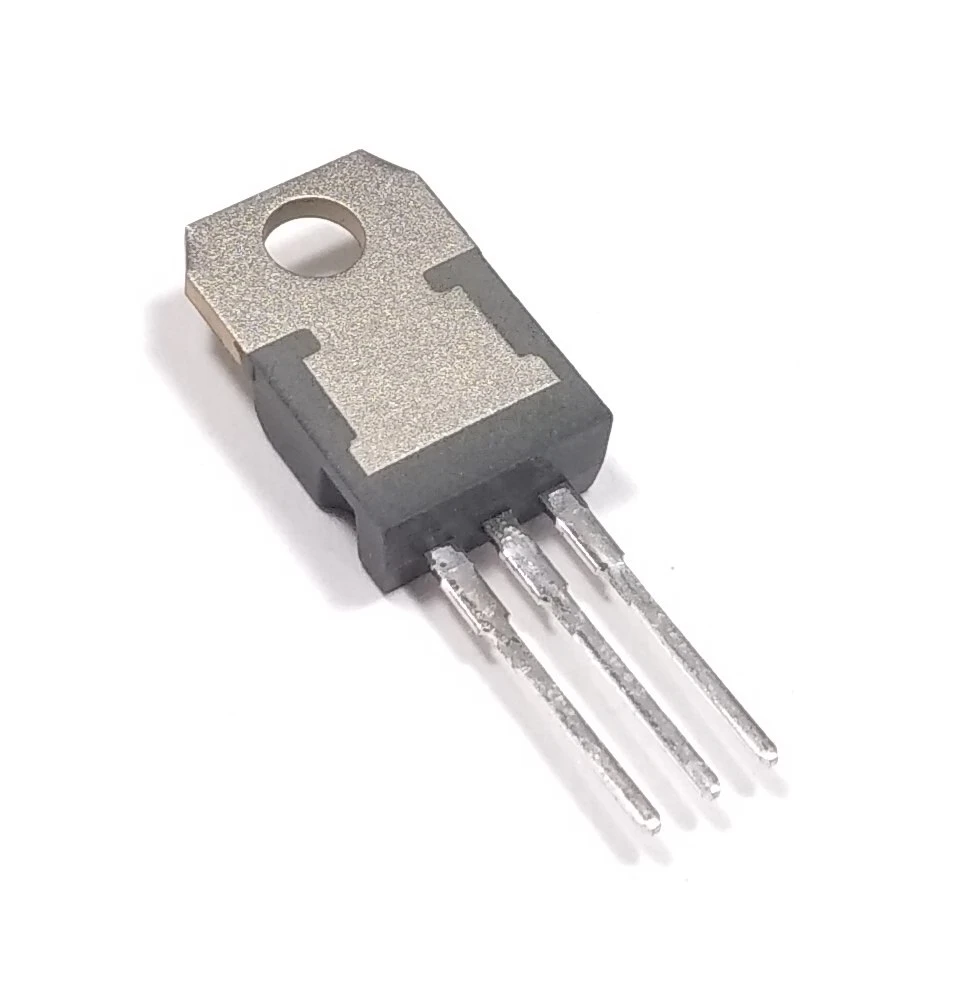

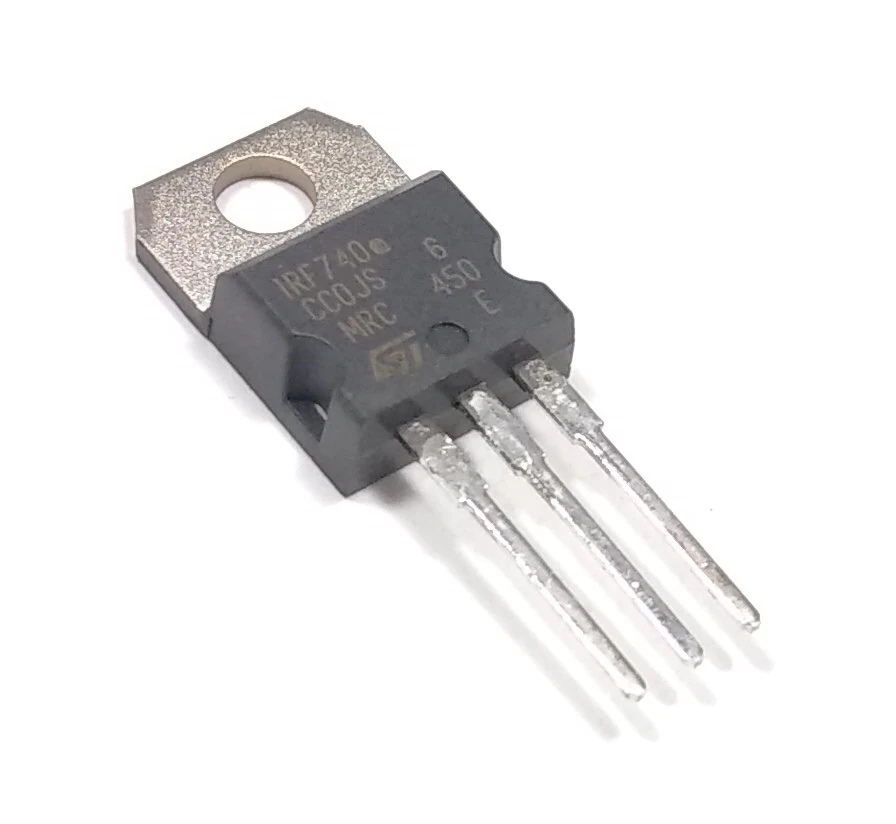

The IRF740 is a high-power N-channel MOSFET, designed for high-speed switching and power applications. With a drain-source voltage rating of 400V and a continuous drain current of 10A, this transistor is perfect for power conversion, DC-DC converters, uninterruptible power supplies (UPS), and other industrial applications. Its high dissipation capability and low on-resistance make it ideal for handling high current efficiently in demanding environments.

Features:

• Drain-Source Voltage (V_DS): 400V, providing reliable operation under high voltage conditions.

• Gate-Source Voltage (V_GS): ±20V for safe and effective gate control.

• Continuous Drain Current (I_D): 10A at Tc = 25°C, ideal for continuous high current applications.

• Pulsed Drain Current (I_DM): 40A for dynamic, high-speed switching applications.

• Total Power Dissipation (P_tot): 125W at Tc = 25°C, with a derating factor of 1.0W/°C for efficient heat management.

• Operating Junction Temperature (T_j): Max. 150°C, ensuring high thermal tolerance.

• Storage Temperature (T_stg): -65°C to 150°C for broad environmental compatibility.

Electrical Specifications:

• V_DS (Drain-Source Voltage): 400V

• V_GS (Gate-Source Voltage): ±20V

• I_D (Continuous Drain Current): 10A at Tc = 25°C

• I_DM (Pulsed Drain Current): 40A

• P_tot (Total Power Dissipation): 125W at Tc = 25°C

• Derating Factor: 1.0W/°C

Applications:

• High Current Switching: Ideal for circuits requiring high-current switching operations.

• Uninterruptible Power Supply (UPS): Suitable for backup power systems.

• DC-DC Converters: Used in power conversion systems for telecom, industrial, and lighting equipment.

• Power Conversion: Perfect for use in power systems and converters.

Package Includes:

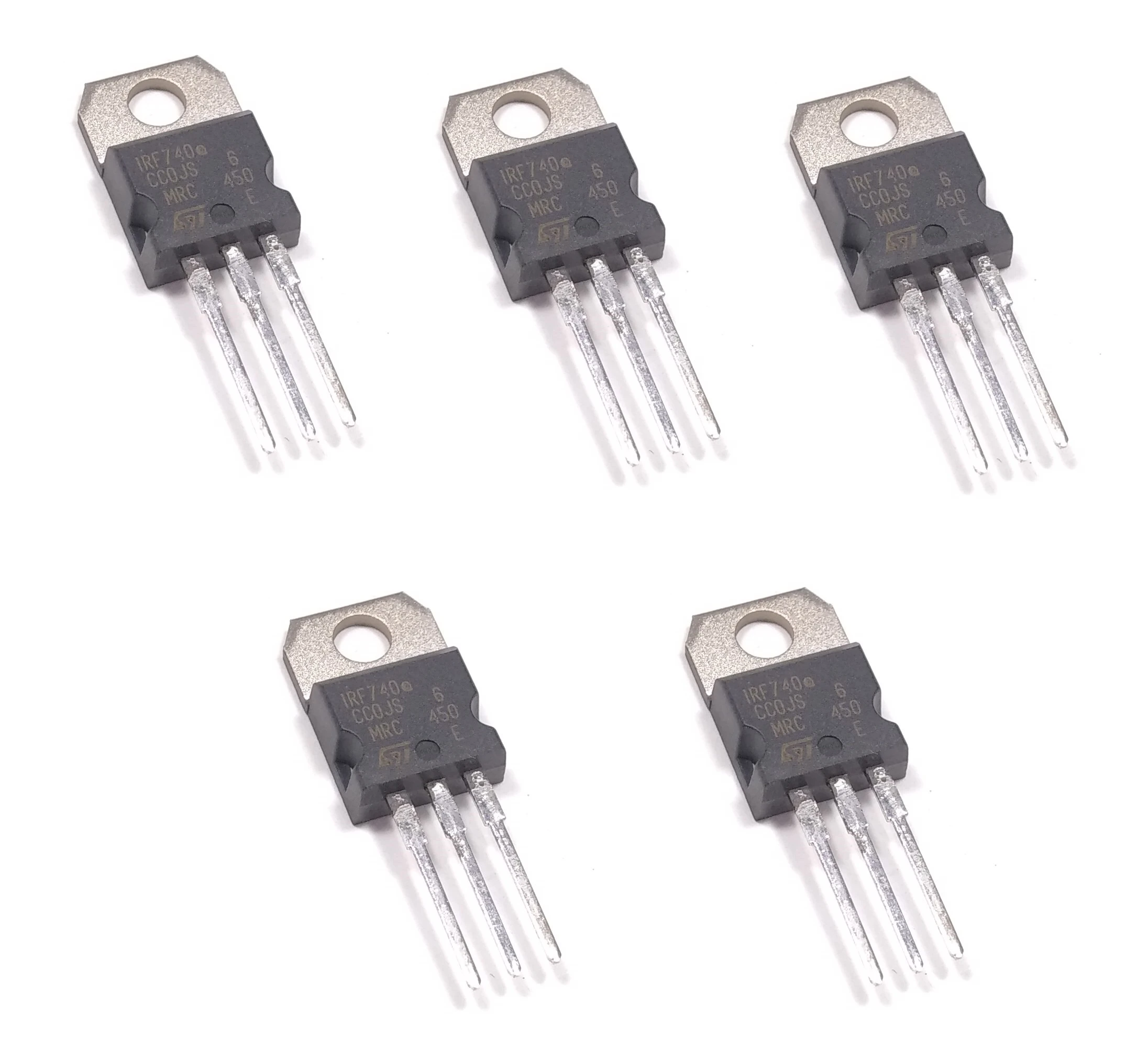

• 5x IRF740 N-channel MOSFET transistors.

• 1x Heatsink compound (for effective heat dissipation).

• 5x Heatsinks (for mounting each transistor).

• 5x Screws (for secure mounting).

Disclaimer: The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
