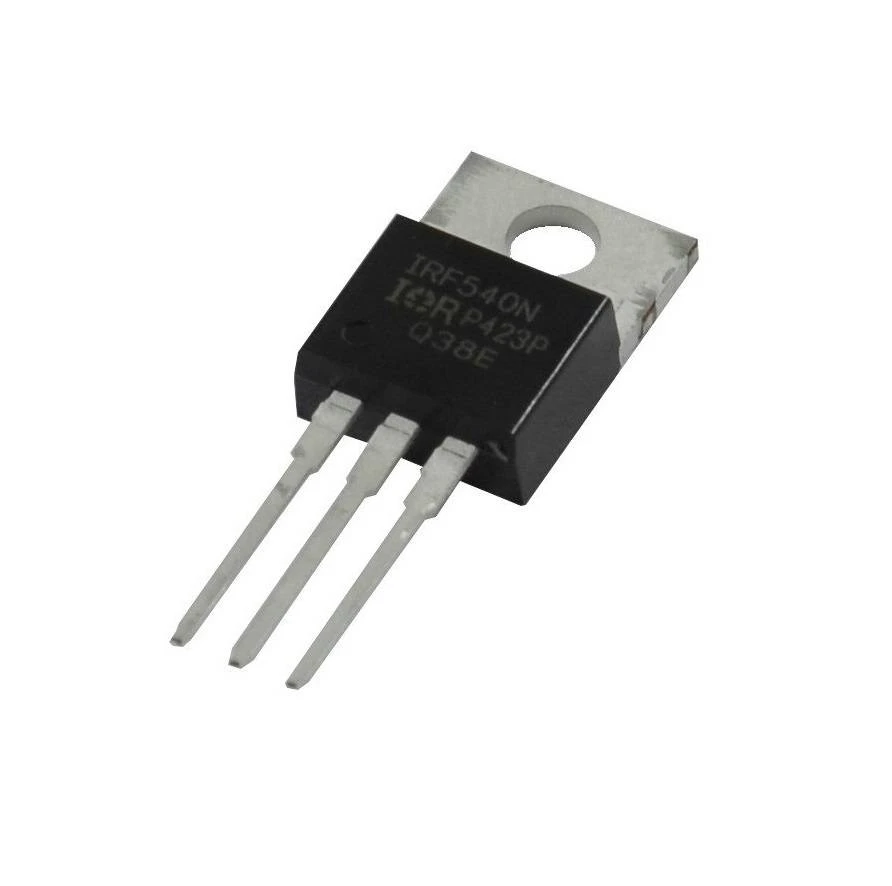

IRF540

In Stock

SKU: R3-F-12-3

IRF540

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹27.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The IRF540 is a widely used N-Channel power MOSFET designed for medium to high-power switching applications. It offers a good balance of voltage, current handling, and efficiency, making it suitable for motor drivers, power supplies, and DC switching circuits.

Specifications:

Type: N-Channel MOSFET
Drain-Source Voltage (Vds): 100V
Continuous Drain Current (Id): up to 28A–33A
Gate Threshold Voltage: 2V – 4V
Rds(on): ~0.044Ω – 0.077Ω @ Vgs = 10V
Gate-Source Voltage: ±20V
Power Dissipation: ~150W
Package: TO-220

Features:

High current handling capability
Low on-resistance for efficient switching
Fast switching performance
Rugged and reliable design
Suitable for medium to high-power applications

Applications:

DC motor drivers
Power supply circuits
DC-DC converters
LED drivers and lighting control
Switching and load control circuits

Pin Configuration:

Gate (G) → Control input
Drain (D) → Load
Source (S) → Ground

Important Note:

Not a logic-level MOSFET
Requires ~10V gate drive for full switching
Not ideal for direct Arduino GPIO use

Package Includes:

1 × IRF540 MOSFET

Disclaimer:
No warranty. No guarantee. No return. No replacement.
