Description:

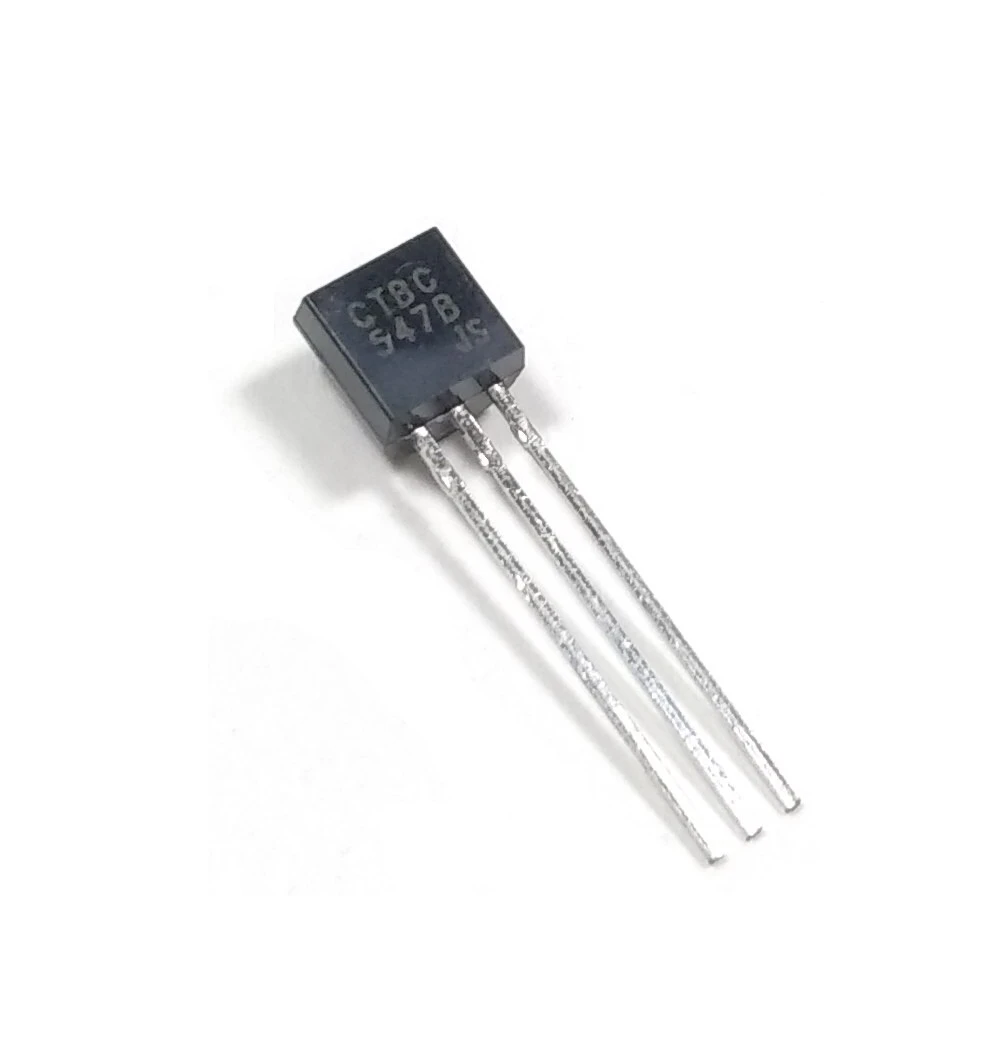

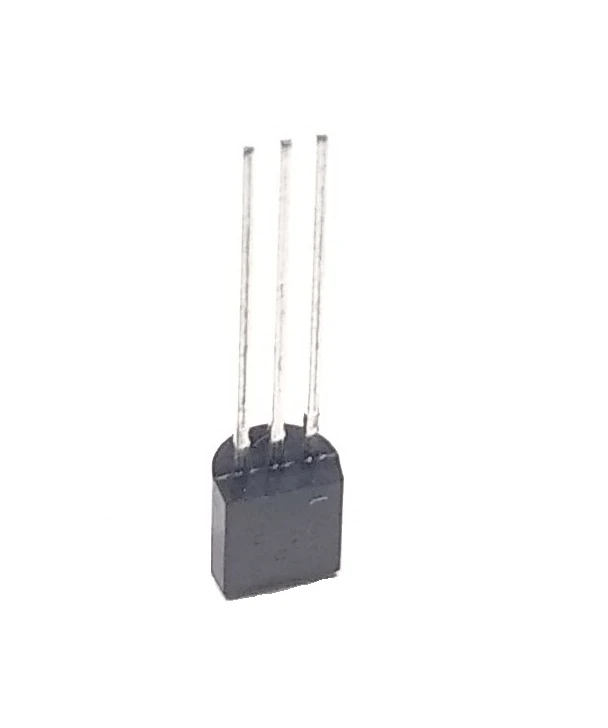

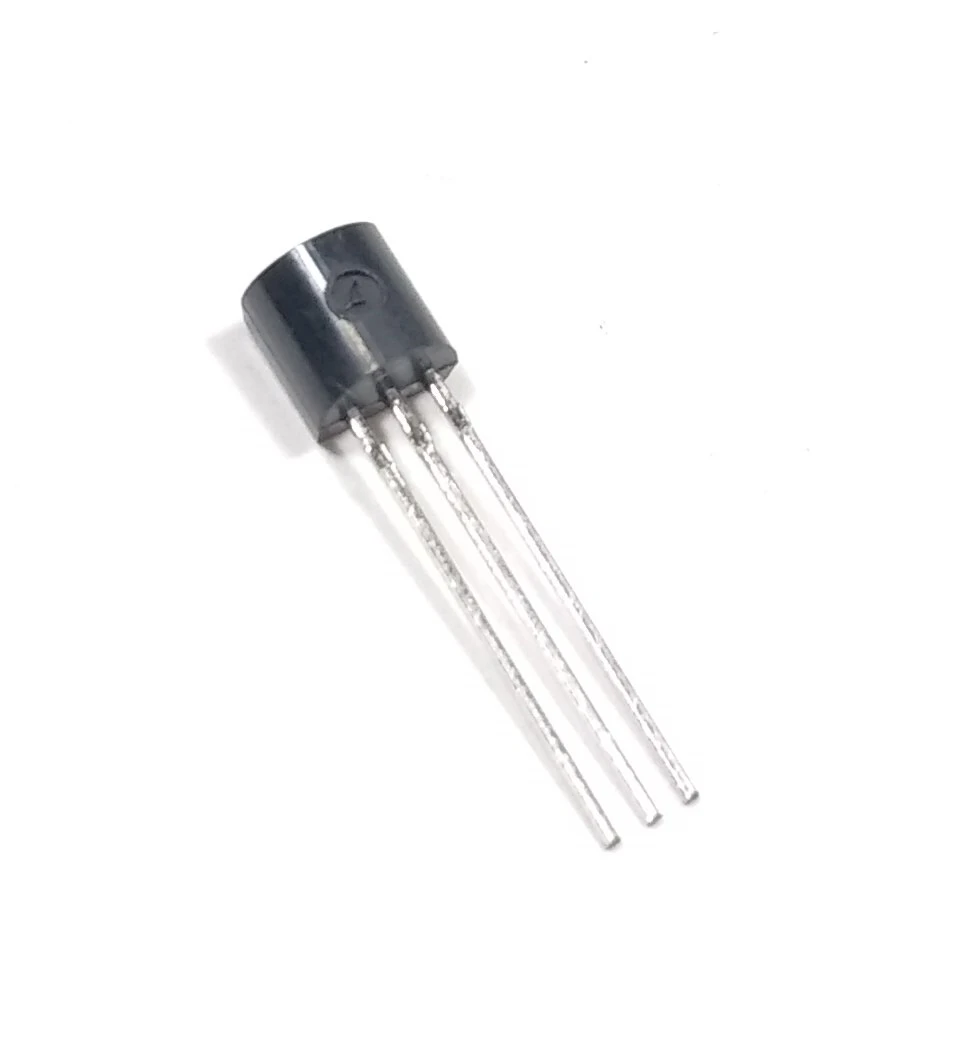

The BC547 is a popular NPN bipolar junction transistor used in general-purpose low-power amplifying and switching applications. With moderate current handling and voltage ratings, it's well-suited for signal processing and prototyping.
Polarity: NPN
Collector-Base Voltage (VCBO): 50 V
Collector-Emitter Voltage (VCEO): 45 V
Emitter-Base Voltage (VEBO): 6 V
Collector Current (IC): 100 mA
Power Dissipation @ TA = 25°C: 625 mW
Derating above 25°C (Ambient): 5.0 mW/°C
Power Dissipation @ TC = 25°C: 1.5 W
Derating above 25°C (Case): 12 mW/°C
Junction Temperature (Tj): 150 °C
Storage Temperature Range (Tstg): -55 to 150 °C
Thermal Resistance (RθJA): 200 °C/W
Low-noise small signal amplification
Switching circuits
Audio amplifier input stages
Hobby electronics and educational kits

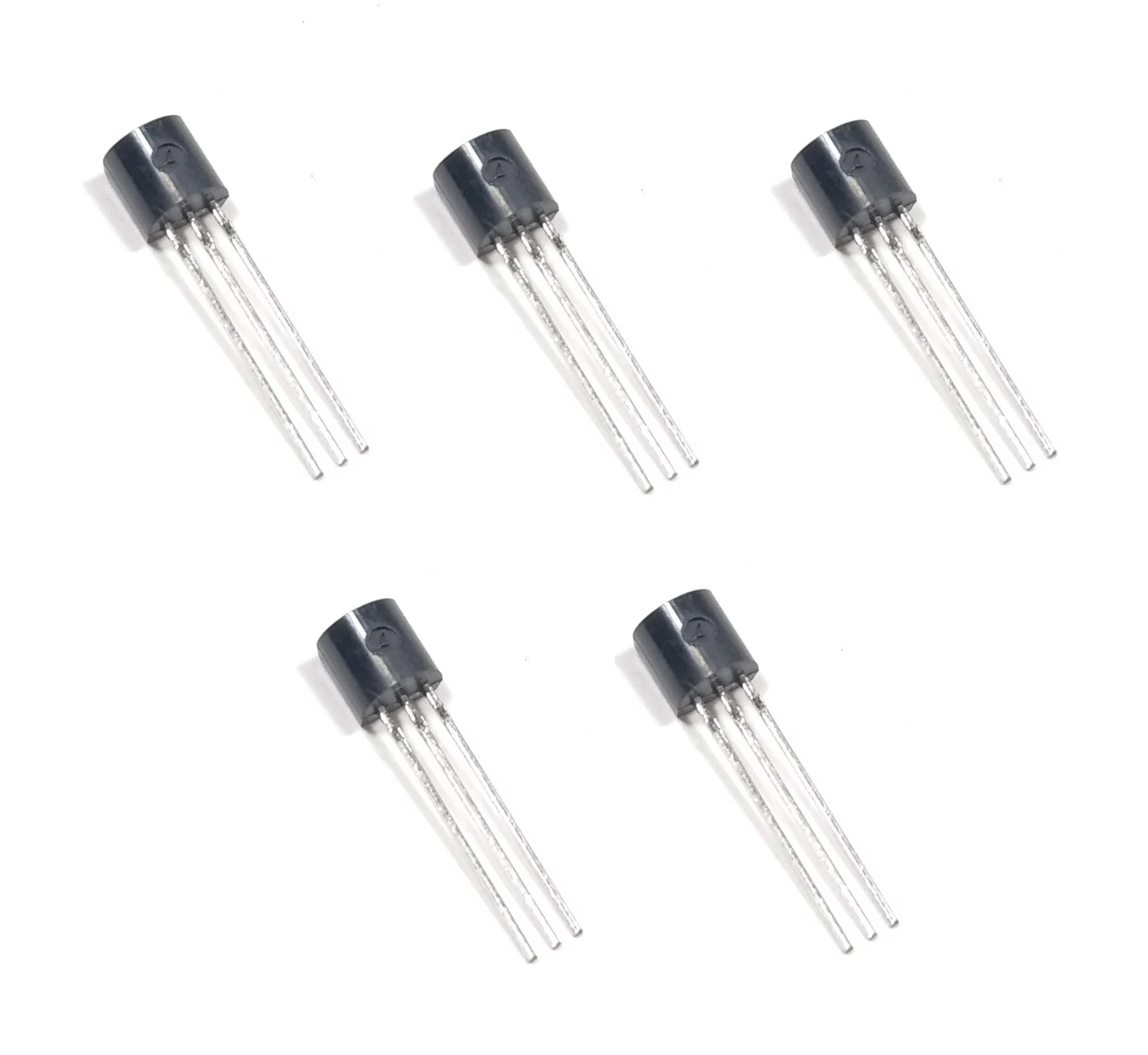

5x BC547 NPN Transistors
