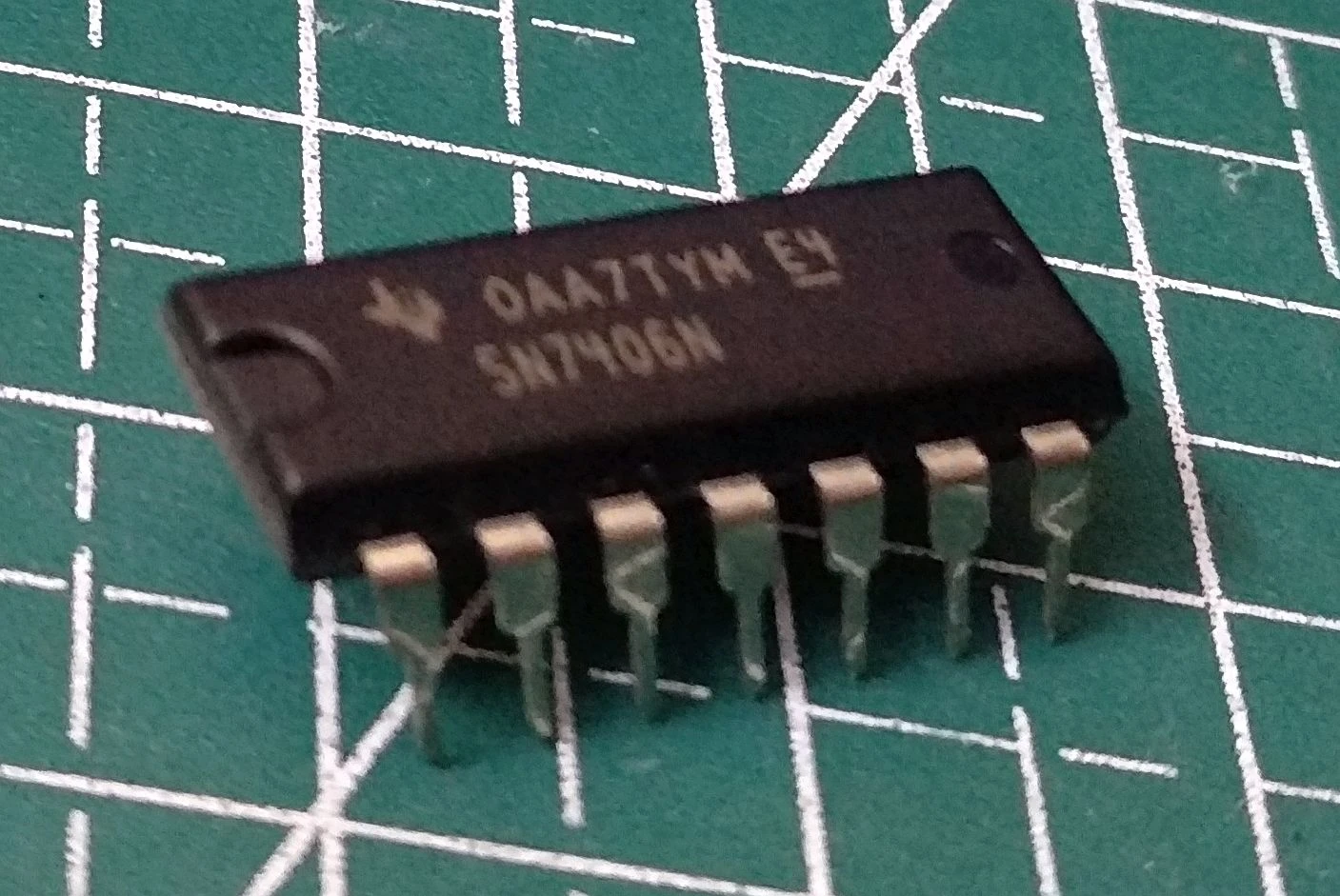

The SN7406N is a Hex Inverter Buffer/Driver IC designed for digital logic and switching applications. It contains six independent inverter gates with open-collector outputs, allowing it to interface with higher voltage loads and external circuits efficiently.
This IC is commonly used in TTL logic systems, signal inversion circuits, relay driving applications, embedded systems, and industrial control electronics.
| Specification | Details |
|---|---|
| Model | SN7406N |
| IC Type | Hex Inverter Buffer/Driver |
| Number of Gates | 6 |
| Logic Family | TTL |
| Output Type | Open Collector |
| Package Type | DIP-14 |
| Mount Type | Through Hole |
| Operating Voltage | 5V Typical |
Product specifications, features, and design may change over time due to product updates or improvements.
