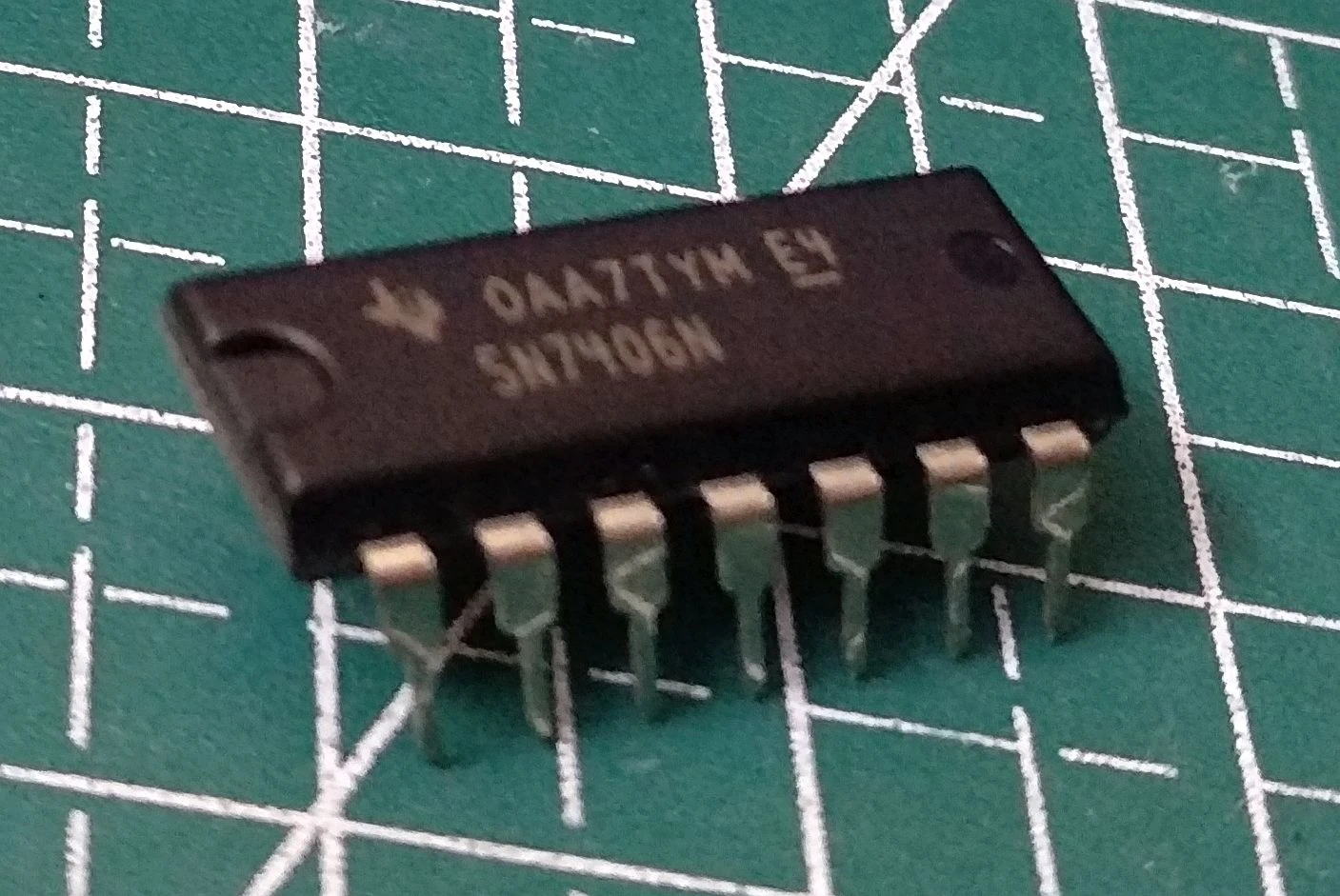

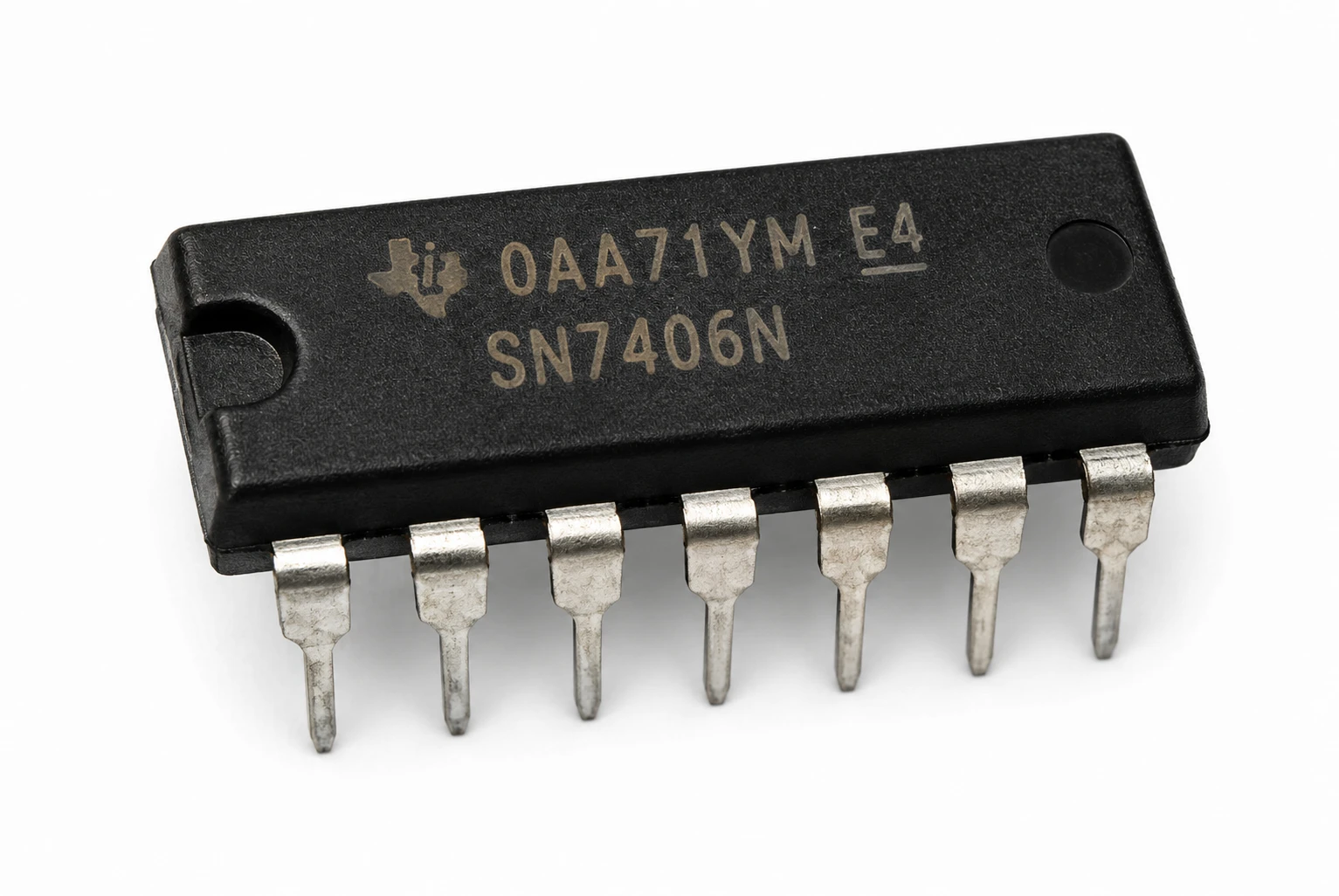

The SN7406N is a Hex Inverter Buffer/Driver IC designed for digital logic and switching applications. It contains six independent inverter gates with high-voltage open-collector outputs, making it suitable for driving lamps, relays, LEDs, and other external loads.
This IC is widely used in TTL logic circuits, embedded systems, industrial electronics, control systems, and educational electronics projects.
| Specification | Details |
|---|---|
| Model | SN7406N |
| IC Type | Hex Inverter Buffer/Driver |
| Number of Gates | 6 |
| Logic Family | TTL |
| Output Type | Open Collector |
| Package Type | DIP-14 |
| Mount Type | Through Hole |
| Operating Voltage | 5V Typical |
Product specifications, features, and design may change over time due to product updates or improvements.
