The 74HC00 is a quad 2-input NAND gate IC from the 74HC (High-Speed CMOS) series, designed to perform logical NAND operations in digital circuits. This IC contains four independent 2-input NAND gates, each of which outputs the logical NAND result of its two inputs. With the ability to operate at high speeds and consume low power, it is ideal for use in a wide range of digital logic applications, including combinational logic circuits, signal processing, and control systems.
The 74HC00 operates on a wide voltage range and is pin-compatible with similar TTL and CMOS logic devices. Its compact form factor and high noise immunity make it suitable for space-constrained and noise-sensitive applications.
Quad 2-Input NAND Gates: Contains four independent 2-input NAND gates in a single package.
High-Speed Performance: Ideal for fast switching and logic operations in digital circuits.
Low Power Consumption: Consumes minimal power, making it suitable for energy-efficient designs.
Wide Operating Voltage: Operates with a voltage range from 2V to 6V, ensuring compatibility with various logic levels.
Noise Immunity: High resistance to electrical noise, ensuring reliable operation in noisy environments.
TTL-Compatible: Compatible with TTL logic for ease of integration in mixed logic systems.
Standard 14-Pin DIP Package: Easy to mount and integrate in most standard circuit designs.
RoHS Compliant: Environmentally friendly and compliant with industry standards.
Combinational Logic Circuits: Used in the design of logic functions such as AND, OR, NOT, and NAND gates.
Signal Processing: Suitable for high-speed signal manipulation and logical operations.
Control Systems: Used in control and switching circuits where NAND logic is required.
Digital Electronics: Ideal for any general-purpose digital circuit requiring NAND logic gates.
Frequency Dividers: Used in timing and clocking applications in digital systems.

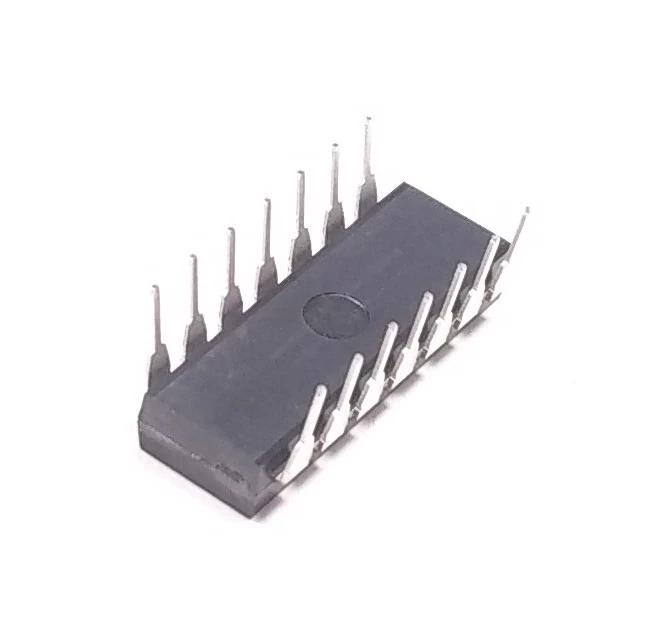

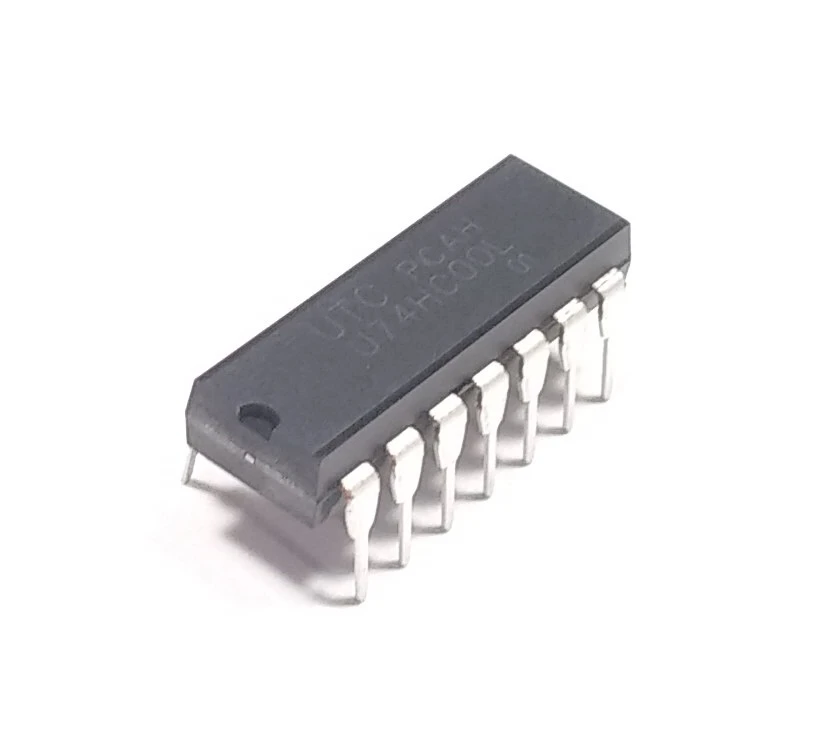

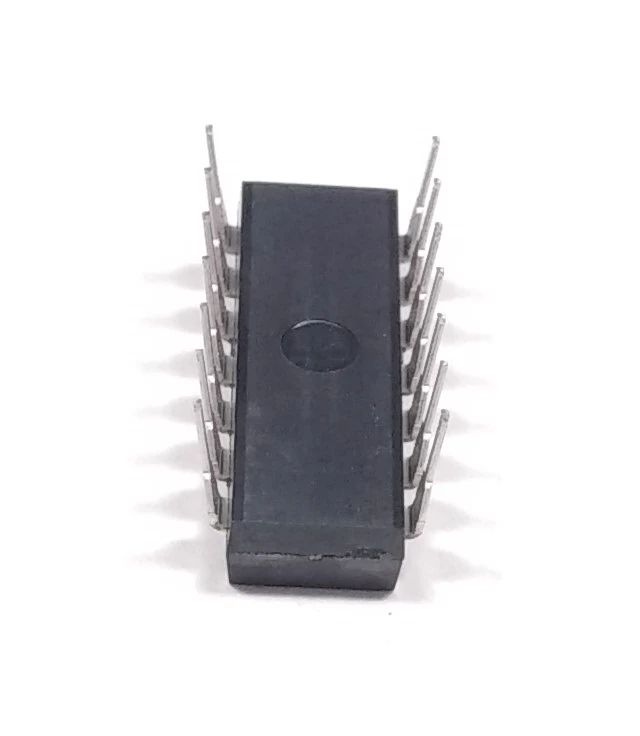

1 x 74HC00 Quad 2-Input NAND Gate IC (14-Pin DIP Package)
Product specifications, features, and design may change over time due to product updates or improvements.
