Description:

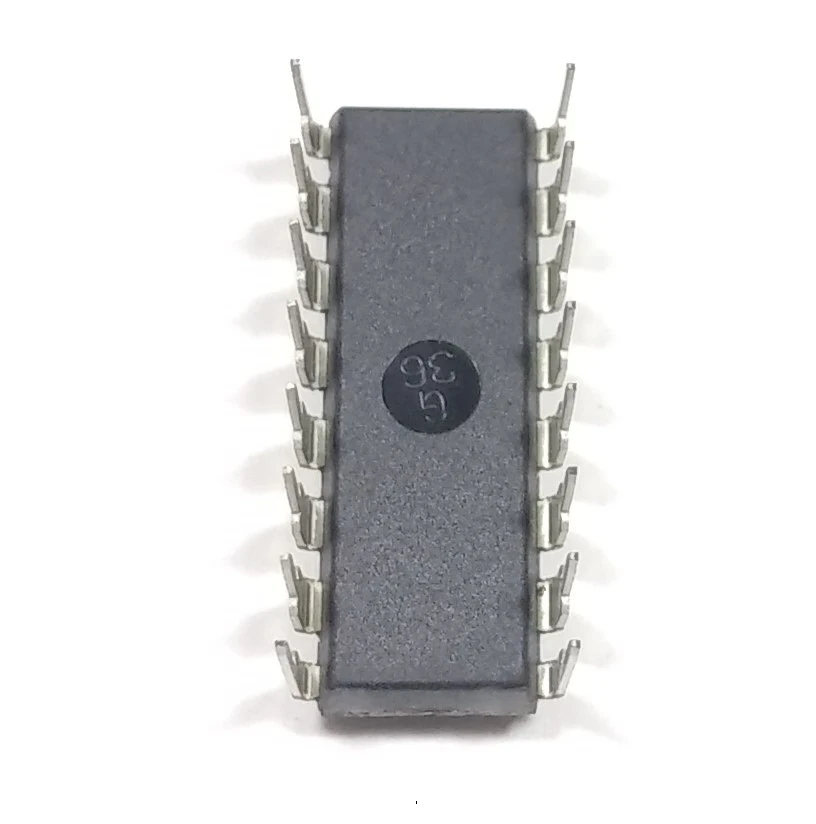

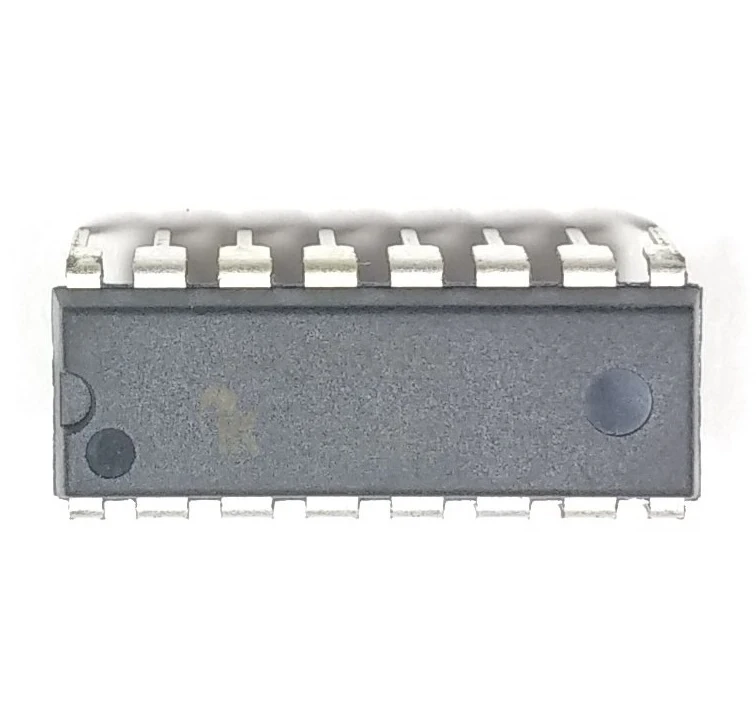

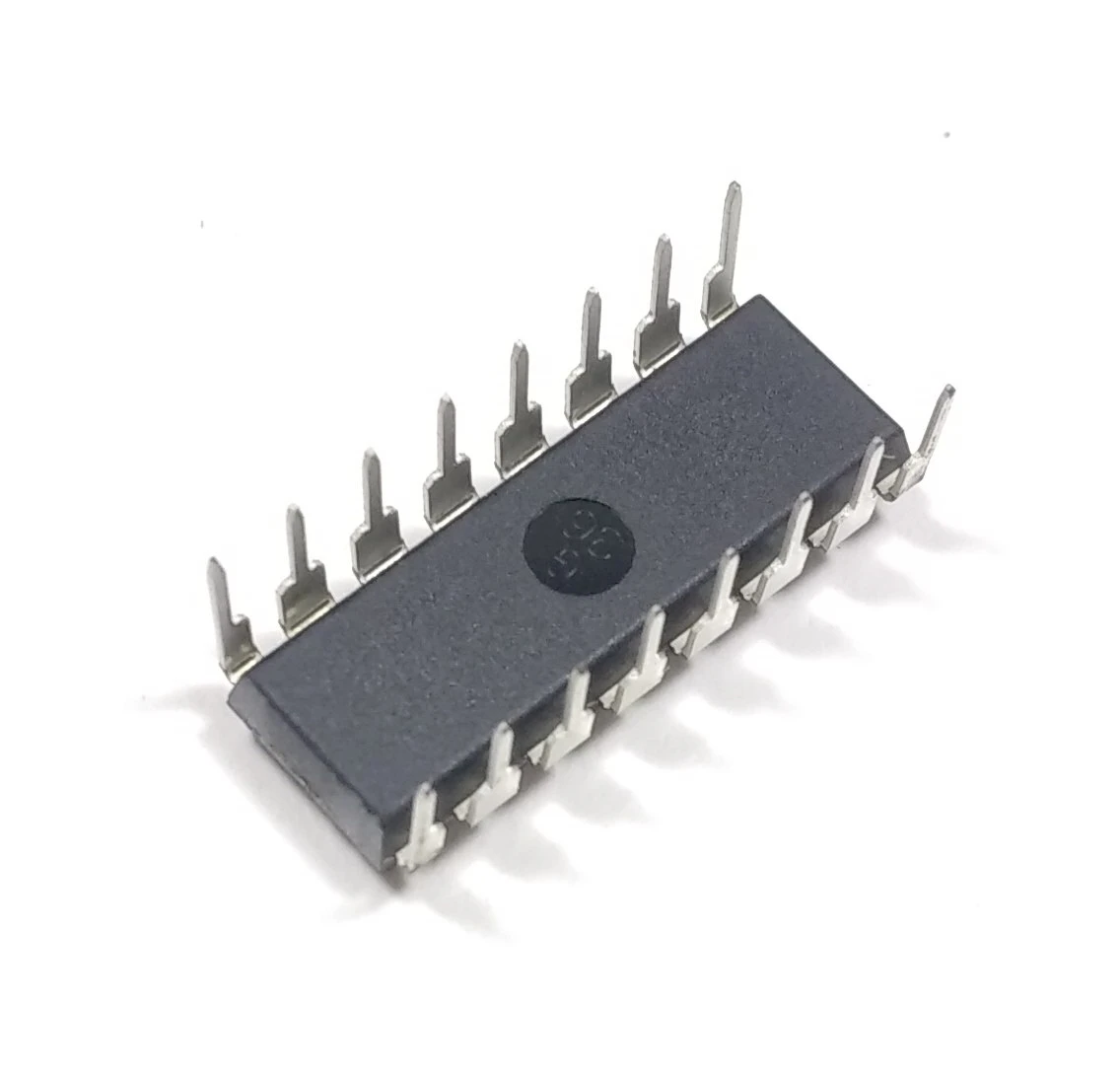

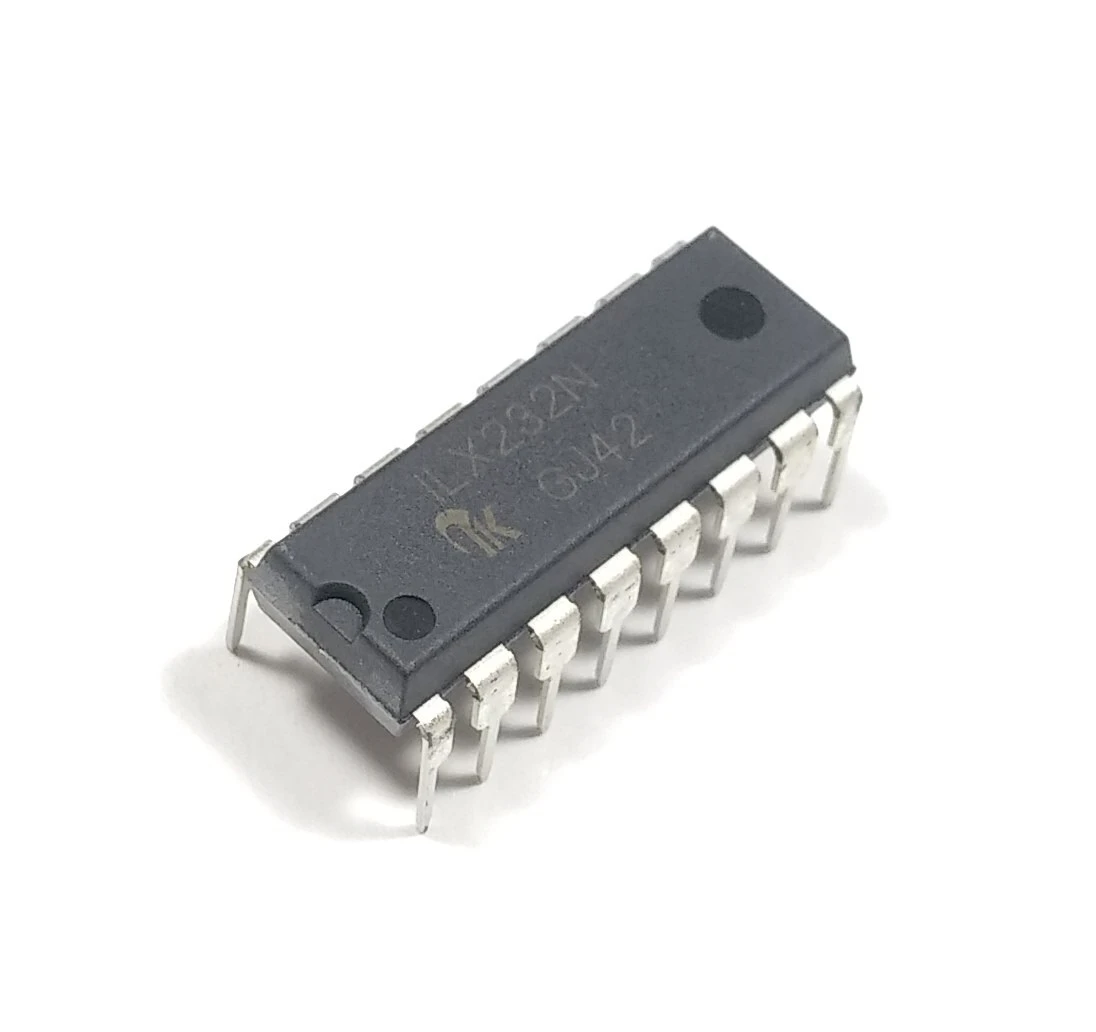

The ILX232 is a high-performance interface transceiver IC designed for RS-232 communication standards. This IC provides the necessary electrical interface between digital logic systems (such as microcontrollers or computers) and serial communication devices using the RS-232 protocol. The ILX232 operates with a single supply voltage, offering ease of integration into modern systems, and ensures reliable data transmission over short and long distances.

With its low power consumption and ability to handle both transmit and receive operations, the ILX232 is commonly used in applications such as serial communication interfaces, embedded systems, and data transmission projects. It converts logic-level signals (TTL or CMOS) to RS-232 voltage levels and vice versa, making it an essential component in systems requiring communication with devices using the RS-232 standard.

Features:

• Single-Supply Operation: Operates with a single supply voltage, typically from 3V to 5.5V, simplifying circuit design and reducing the need for additional power supplies.

• RS-232 Compatibility: Fully complies with the RS-232 standard, allowing seamless communication with other RS-232-compatible devices.

• Low Power Consumption: Designed for low power usage, ideal for battery-operated or power-sensitive applications.

• High-Speed Data Transmission: Supports fast data rates for efficient communication between devices.

• Integrated Protection: Includes internal protection against voltage spikes and other transient conditions, ensuring the reliability of communication.

• Driver and Receiver: Includes both transmit and receive drivers, ensuring complete bidirectional communication support.

• Small Package Size: Offered in a compact form factor, suitable for space-constrained applications.

Applications:

• Embedded Systems: Used to interface microcontrollers and embedded systems with serial devices.

• Data Communication: Ideal for communication between computers, industrial equipment, and peripherals.

• Modems: Can be used in modems for serial data transmission and reception.

• Point-of-Sale Systems: Used in retail and payment systems for communication with peripherals like barcode scanners and printers.

• Industrial Equipment: Interfacing between industrial controllers and communication devices using the RS-232 protocol.

Package Includes:

• 1 x ILX232 RS-232 Interface Transceiver IC.

Disclaimer:

Product specifications, features, and design may change over time due to product updates or improvements.
