The 74147 is a 10-line to 4-line priority encoder IC designed to convert a 10-input signal into a 4-bit binary code. The encoder provides an efficient way to represent multiple inputs with a reduced number of output lines, making it ideal for applications where you need to encode multiple lines into a smaller set of binary outputs.
It is equipped with priority encoding functionality, meaning that if multiple inputs are active, the encoder will output the binary representation of the highest-priority active input. This IC is suitable for use in digital systems where data compression or signal encoding is required.
10-Line to 4-Line Encoding: Encodes 10 input lines into 4 binary output lines.
Priority Encoding: Ensures the highest-priority active input is encoded, even when multiple inputs are active simultaneously.
Active Low Inputs: Inputs are active low, with each line representing a specific bit.
TTL Logic Compatible: Fully compatible with TTL logic levels, enabling easy integration with other TTL components.
Low Power Consumption: Efficient operation ideal for energy-sensitive applications.
Data Compression: Can be used in systems requiring data encoding and compression.
Input Line Selection: Useful in applications where multiple inputs need to be prioritized and encoded.
Digital Systems: Commonly found in control systems and digital communication circuits.
Memory Addressing: Employed in memory addressing and systems that require binary encoding of multiple input lines.

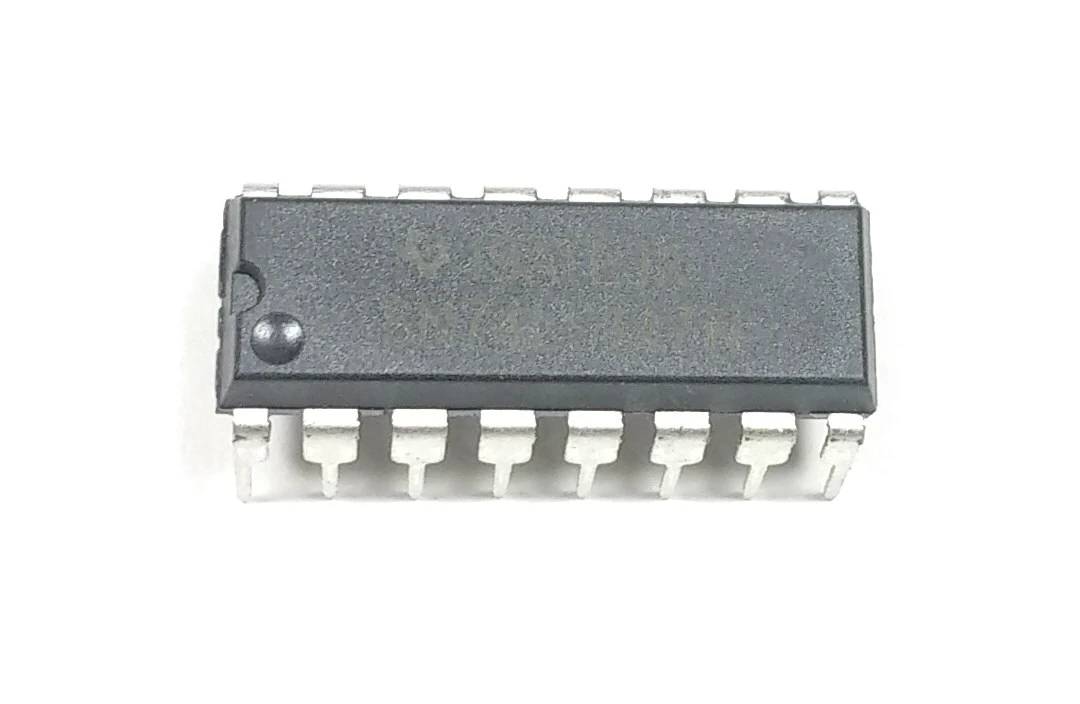

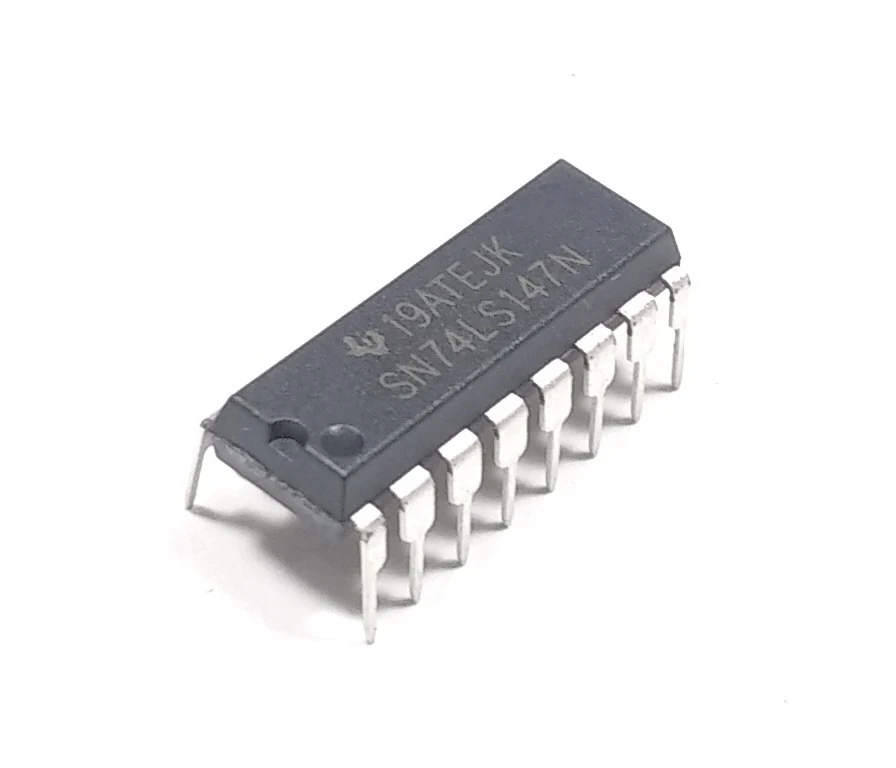

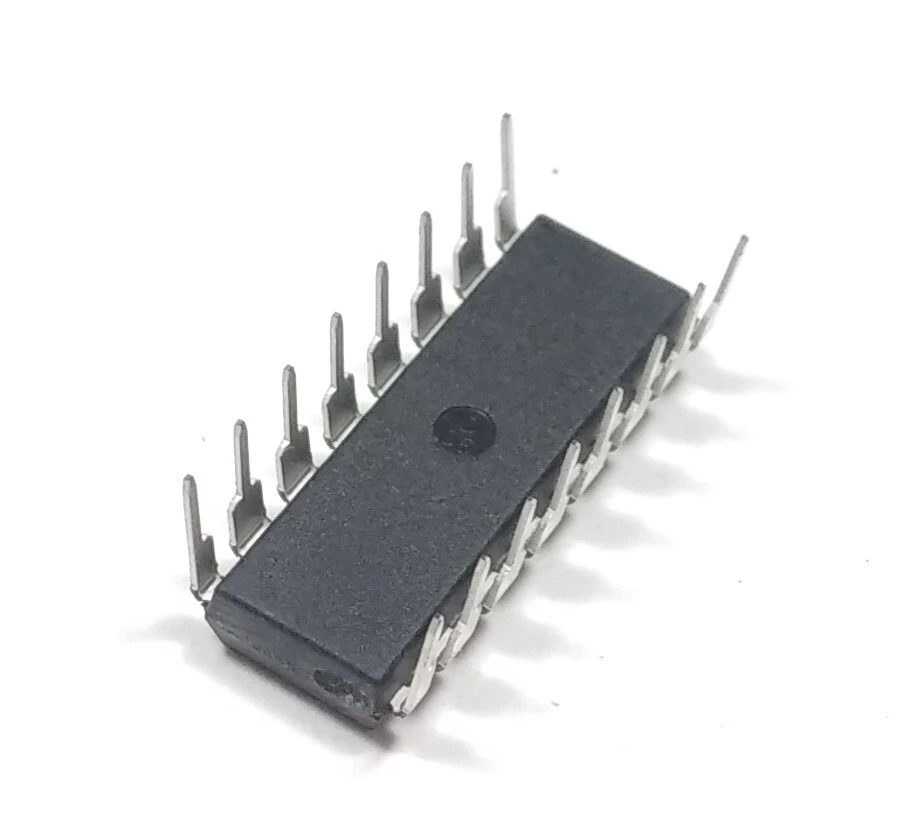

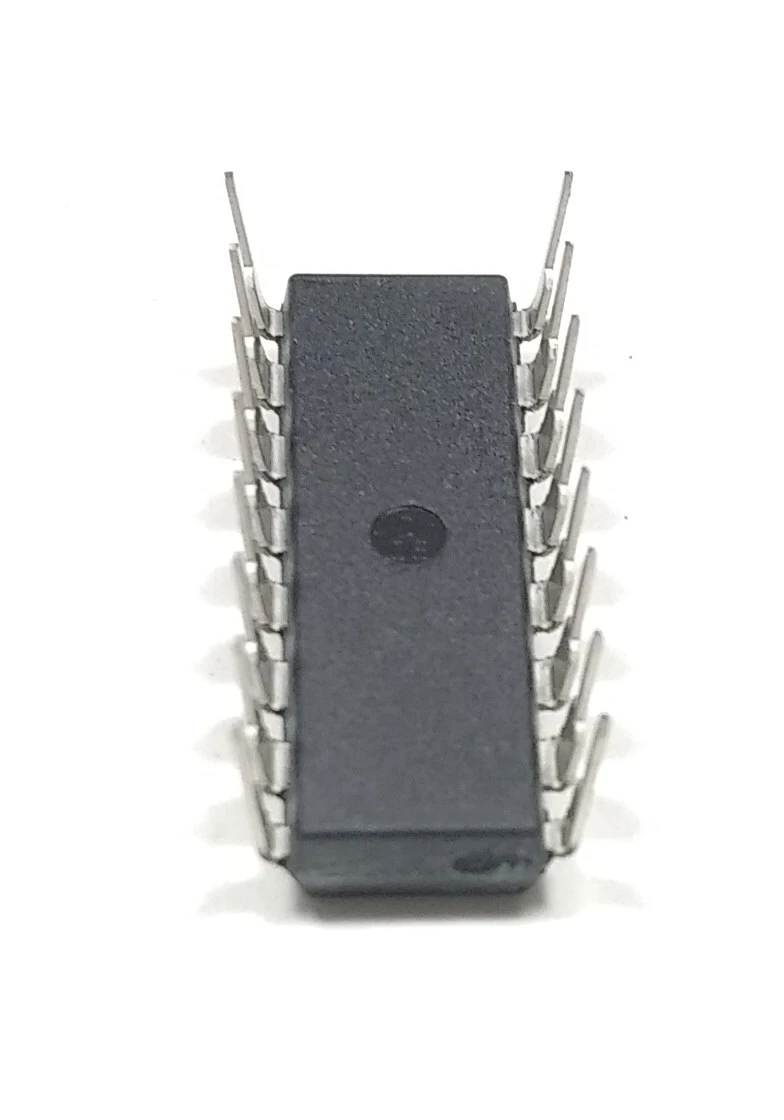

1 x 74147 Encoder IC (DIP-16 Package)
Product specifications, features, and design may change over time due to product updates or improvements.
