Description:

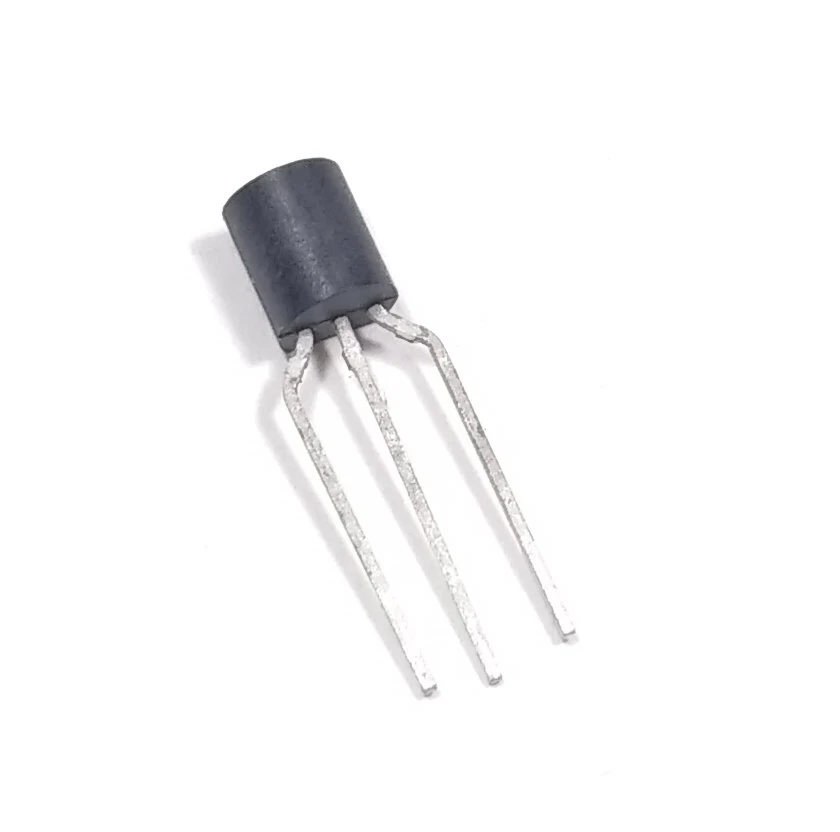

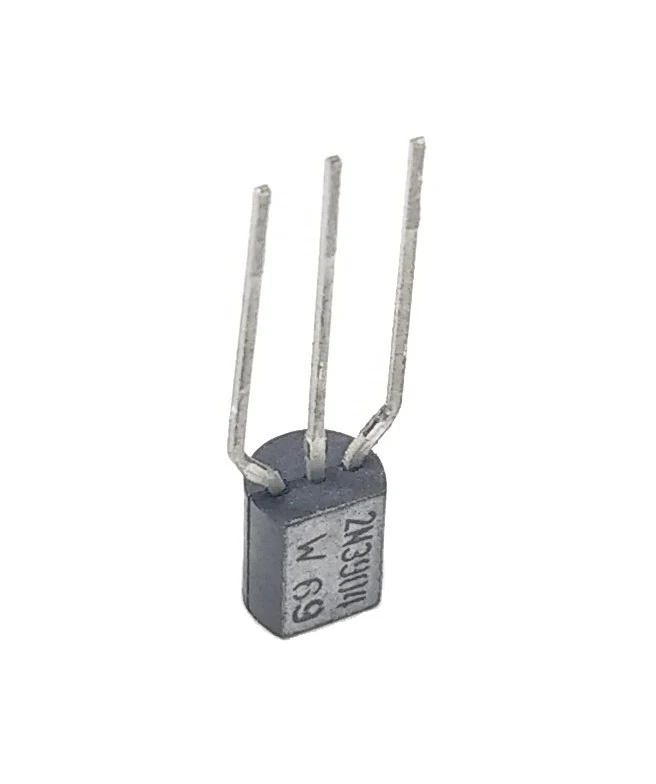

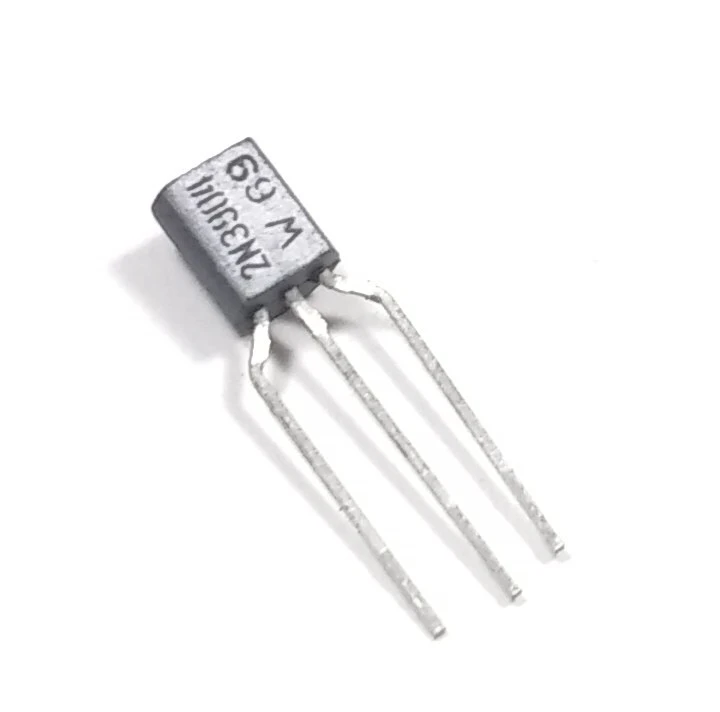

The 2N3904 is a widely used NPN transistor designed for general-purpose amplification and switching applications. With a collector-emitter voltage of 40 V and a continuous collector current of 200 mA, it is suitable for low-to-moderate power applications. The transistor is highly reliable for a range of electronic projects, including signal amplification and switching tasks.
Collector-Emitter Voltage (VCEO): 40 Vdc
Collector-Base Voltage (VCBO): 60 Vdc
Emitter-Base Voltage (VEBO): 6.0 Vdc
Collector Current (IC): 200 mAdc (continuous)
Total Device Dissipation @ TA = 25°C: 625 mW, derates at 5.0 mW/°C above 25°C
Total Device Dissipation @ TC = 25°C: 1.5 W, derates at 12 mW/°C above 25°C
Operating and Storage Temperature Range (TJ, TSTG): -55°C to +150°C
Package Type: TO-92
General-purpose low-power amplification
Signal processing and switching applications
Audio, RF, and logic circuits

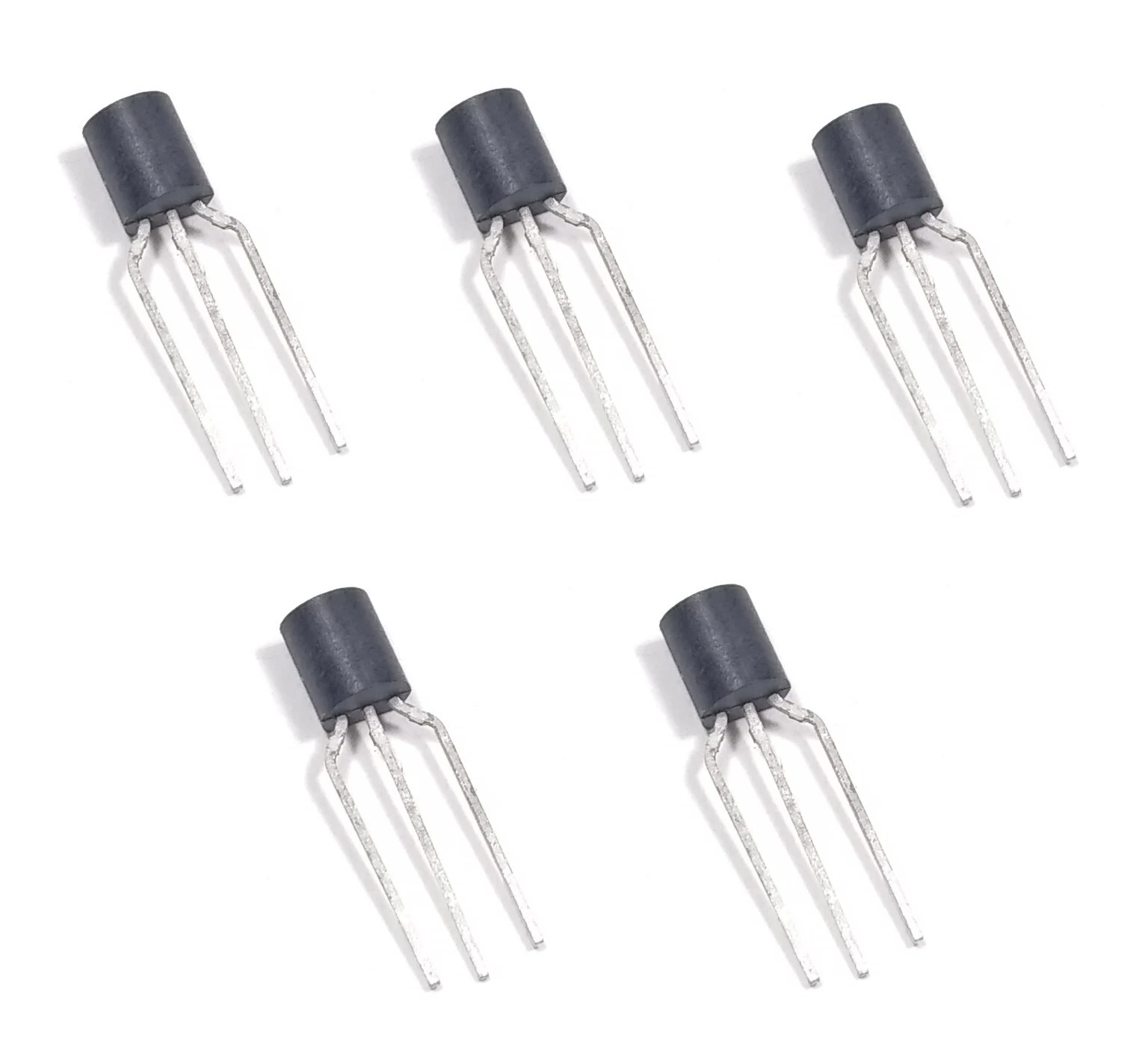

5x 2N3904 NPN Transistors
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
