Description

The Laser Fence Security System is an educational STEM project that demonstrates the working principle of a laser-based intrusion detection system. The project uses a laser diode aimed at a Light Dependent Resistor (LDR). Under normal conditions, the laser beam continuously falls on the LDR. When an object interrupts the laser beam, the change in light intensity is detected by the electronic circuit, activating a buzzer to indicate an intrusion.

This project introduces students to concepts such as photoresistors, transistor switching, laser optics, voltage regulation, alarm circuits, and basic electronic prototyping. It is ideal for science exhibitions, STEM education, electronics learning, and beginner DIY projects.

Features

• Demonstrates laser-based intrusion detection
• Real-time interruption sensing using an LDR
• Audible alarm using a buzzer
• Easy breadboard-based assembly
• No programming required
• Hands-on STEM learning project
• Ideal for science fairs and educational demonstrations
• Reusable electronic components

Kit Contents

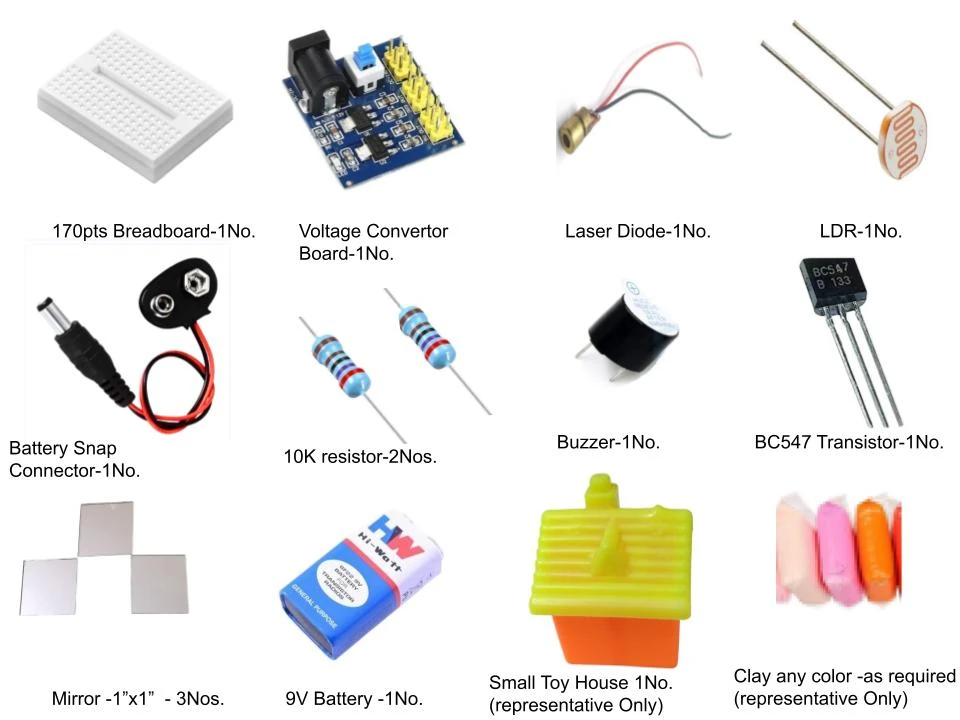

• 170-Point Mini Breadboard – 1 No.
• Voltage Converter Board – 1 No.
• Laser Diode Module – 1 No.
• LDR (Light Dependent Resistor) – 1 No.
• 9V Battery Snap Connector – 1 No.
• 10KΩ Resistors – 2 Nos.
• Buzzer – 1 No.
• BC547 NPN Transistor – 1 No.
• Mirror (1" × 1") – 3 Nos.
• 9V Battery – 1 No.
• Small Toy House – 1 No. (Representative Only)
• Modelling Clay – As Required (Representative Only)

Specifications

Working Principle

1. The laser diode continuously emits a beam toward the LDR.

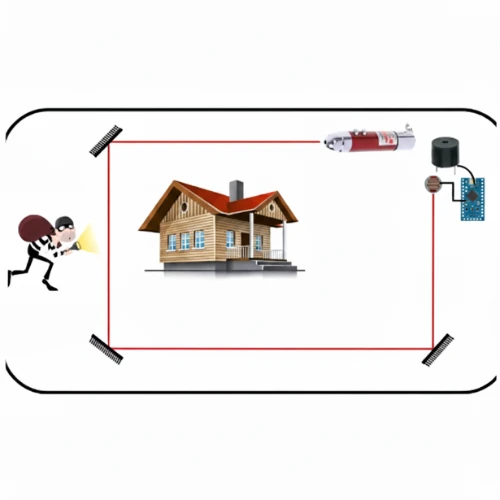

2. Mirrors can be used to redirect the laser beam around the protected area.
3. While the beam reaches the LDR, the circuit remains inactive.
4. When an object interrupts the beam, the LDR resistance changes.
5. The BC547 transistor switches ON.
6. The buzzer sounds, indicating an intrusion.

Learning Outcomes

• Laser optics
• Reflection of light
• Photoresistor (LDR) operation
• Transistor switching
• Analog electronics
• Breadboard prototyping
• Security system fundamentals
• Circuit assembly and testing

Applications

• STEM Education
• Science Fair Projects
• Electronics Learning
• DIY Security Demonstrations
• School Laboratory Experiments
• Engineering Workshops
• Beginner Electronics Training

Advantages

• Simple to assemble
• Practical learning experience
• Reusable components
• Safe low-voltage operation
• Demonstrates real-world security concepts
• Encourages hands-on experimentation
• Suitable for beginners

Package Includes

• 1 × Laser Fence Security System STEM Kit (Components as Listed Above)

Safety Instructions

• Do not point the laser beam directly into the eyes.
• Adult supervision is recommended during assembly.
• Ensure correct battery polarity before powering the circuit.
• Handle mirrors carefully to avoid breakage.
• Disconnect the battery when the project is not in use.
• Keep components away from moisture and excessive heat.

Disclaimer

Product appearance, dimensions, and terminal configuration may vary slightly depending on manufacturing batch without affecting functionality or performance.
