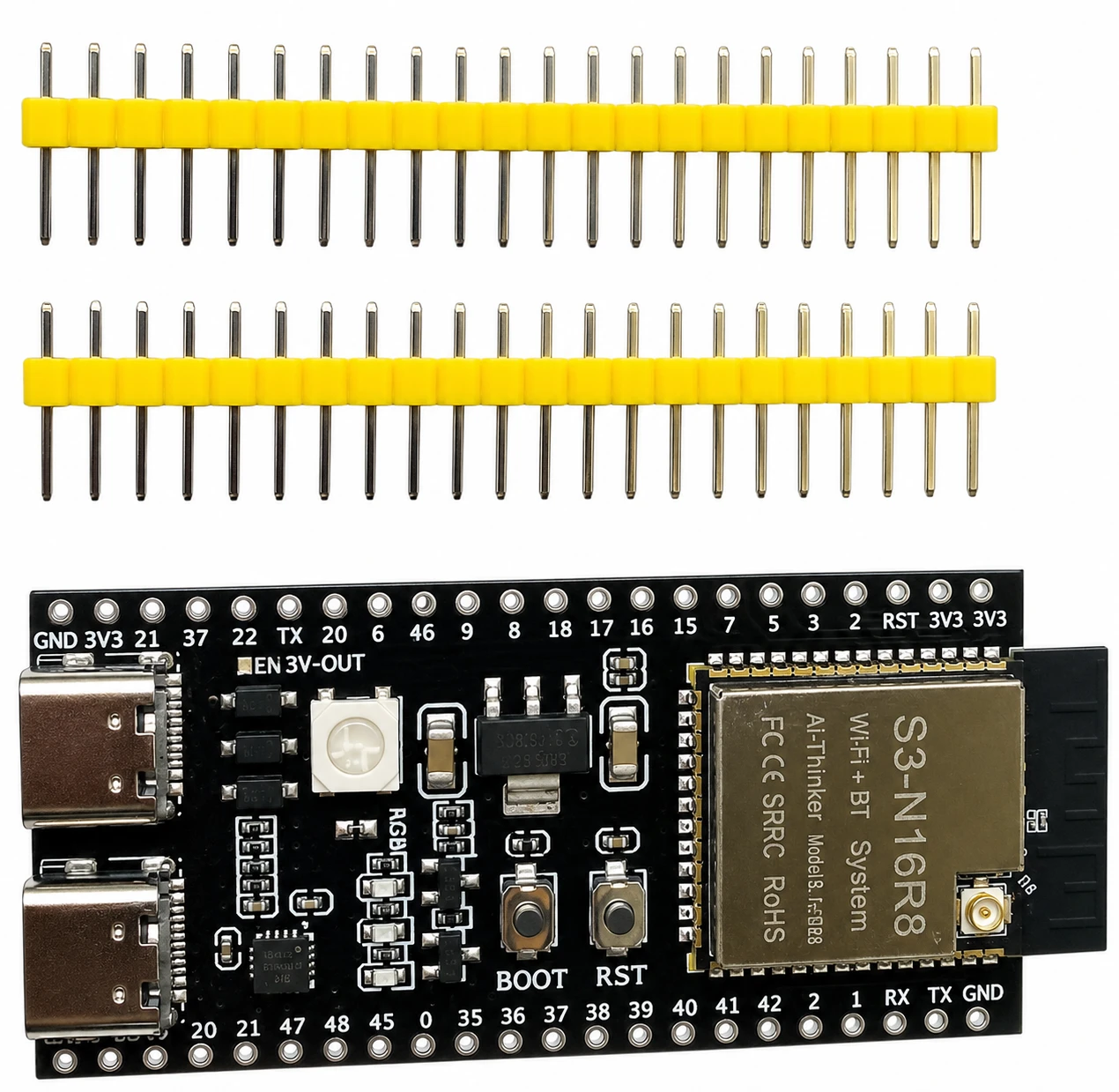

The ESP32-S3-WROOM-1U-N16R8 is a powerful wireless MCU module designed for advanced IoT, AIoT, embedded, automation, and connected-device applications. It features a dual-core Xtensa LX7 processor running up to 240 MHz, integrated 2.4 GHz Wi-Fi and Bluetooth Low Energy connectivity, 16 MB Flash memory, and 8 MB PSRAM.
The 1U variant uses an external antenna connector instead of an integrated PCB antenna, making it suitable for applications requiring flexible antenna placement or improved RF performance.
| Parameter | Value |
|---|---|
| Model | ESP32-S3-WROOM-1U-N16R8 |
| Processor | Dual-Core Xtensa LX7 |
| Maximum Clock Speed | 240 MHz |
| Flash Memory | 16 MB |
| PSRAM | 8 MB |
| Wi-Fi | 2.4 GHz 802.11 b/g/n |
| Bluetooth | Bluetooth 5 LE |
| Antenna | External Antenna Connector |
| Interfaces | GPIO, UART, SPI, I²C, I²S, PWM, ADC, USB and others |
| Module Dimensions | Approx. 18 × 19.2 × 3.2 mm |
| Operating Voltage | 3.3V |
The ESP32-S3 platform provides 512 KB of internal SRAM and supports a rich range of peripherals and security capabilities.
This is a surface-mount MCU module intended for integration into a custom PCB and is not a complete plug-and-play development board. Proper 3.3V power supply, PCB layout, programming interface, antenna connection, and ESD precautions should be considered during integration.
Product appearance, dimensions, and terminal configuration may vary slightly depending on manufacturing batch without affecting functionality or performance.
