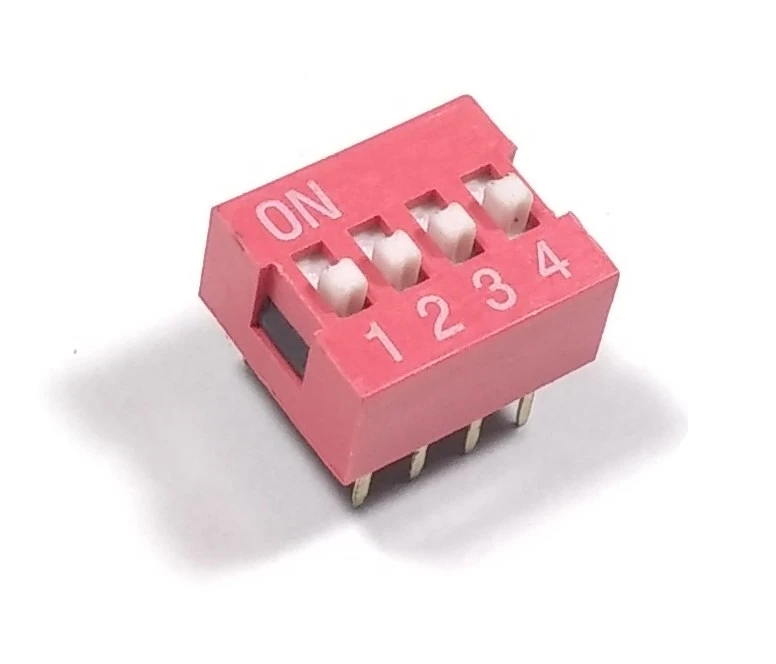

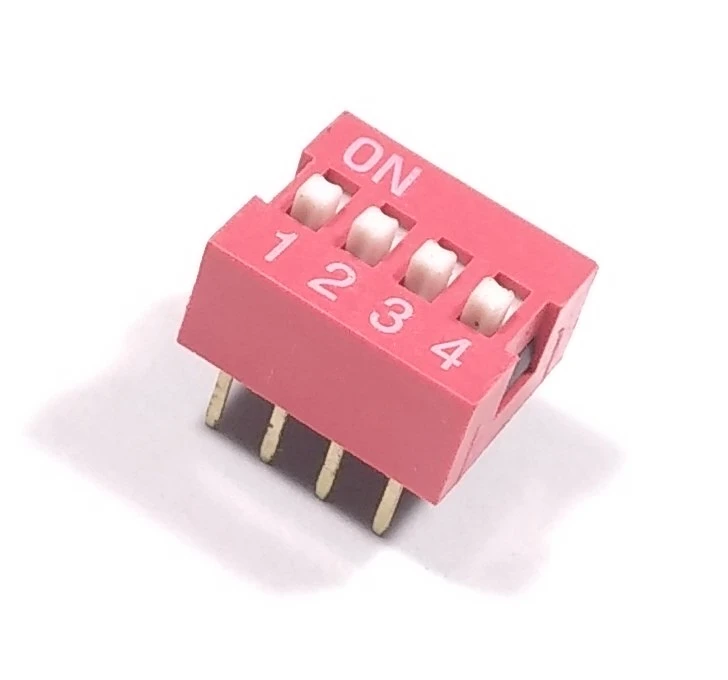

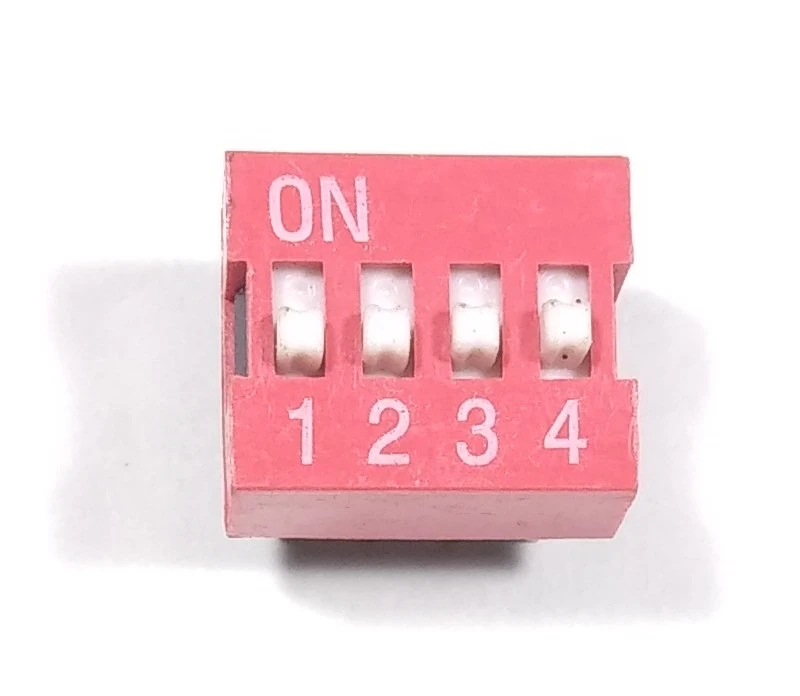

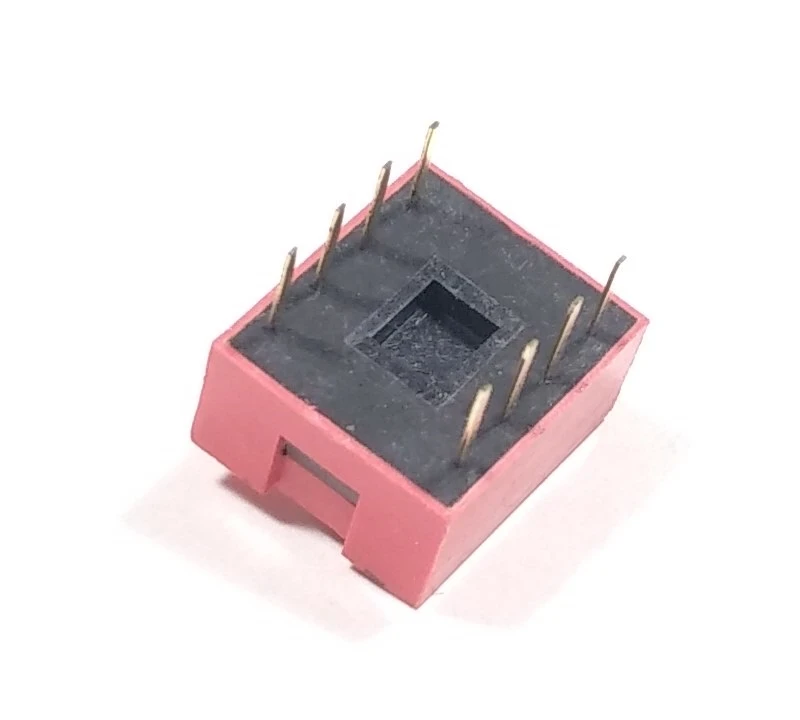

Compact and versatile, this 4-way DIP switch provides manual control of logic levels or configurations in electronic circuits. Ideal for address setting, mode selection, and general-purpose configuration tasks.
4 independent ON/OFF switches in a single package
Standard 2.54 mm (0.1") pin spacing for easy PCB mounting
Slide-type actuator for simple manual operation
Durable design with long mechanical life
No external power required for operation
Type: 4-Way DIP (Dual In-line Package) Switch
Number of Positions: 4
Pin Pitch: 2.54 mm
Contact Rating: 25V DC, 0.1A
Insulation Resistance: ≥100MΩ at 500V DC
Dielectric Strength: 500V AC for 1 minute
Operating Temperature: -20°C to +70°C
Mounting Type: Through-Hole
Actuator Style: Slide-type
Color: Black body with white actuators
Microcontroller address or mode selection
Configuration of communication settings
DIY electronics and embedded systems
Test and measurement equipment
Logic-level selection in prototyping
Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
